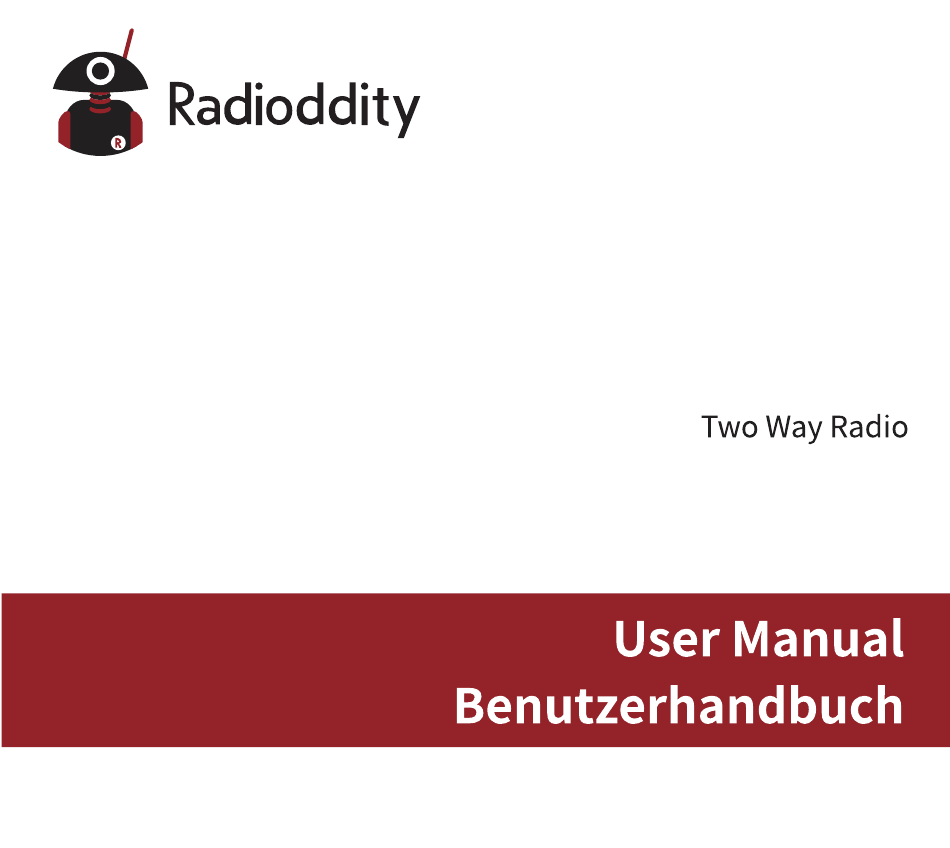

- Page 1 FS-T7 FRS US...
-
Page 3: Main Features
ATTENTION! The radio is a multitask FRS transceiver. Combining the latest technology in radio communication along with a sturdy mechanical frame, the radio is the ideal and effective solution for the professionals who need to stay in touch with the working team (in construction sites, buildings, shows, trade fairs or hotels) or for leisure users that just want to keep up with friends and family. - Page 4 With the belt clip, you can easily attach the radio to the belt. However, the belt clip must be removed to install or replace the battery. To remove the belt clip, follow the illustration. Fasten the clip into the slot on the unit in the radio's rear rail until it snaps into the square.
-
Page 5: Charging The Battery
1) Turn the radio off. 2) With the back of the radio facing you, lift the battery cover latch up and remove the cover. 3) Insert the three AA Alkaline batteries with + and – polarity as shown inside (Installing the batteries incorrectly will prevent the unit from operating or may damage the unit). -
Page 6: Main Controls And Parts Of The Radio
2) Set the charging cradle on the desk or tabletop, and place the radio in the charging cradle with the keypad facing forward. 3) Charge the batteries for 6 hours. Note: • Use only the supplied batteries, charger, and AC adapter or approved accessories. •... - Page 7 8. LED Flashlight 9. Breathing light 10. MONI button: Keep pressed to activate the Monitor function (for weak signal monitoring). 11. SPK | MIC (under the protective cover) - To connect to external audio devices such as microphones, headphones, etc /SCAN button - Press this button once to activate SCAN.
-
Page 8: Basic Operations
LCD DISPLAY 1. NOAA Weather Band Indicator 2. Scan Indicator 3. Activate the VOX function 4. Dual Channel Monitor 5. Select the DCS/CTCSS type of squelch method 6. Channel (1-22) 7. Battery Indicator 8. Emergency alert function activated 9. Transmit Status 10. -
Page 9: Monitor Mode Feature
transmission, pause slightly after pressing the [PTT] button before you start talking. 2) When you have finished speaking, release the [PTT] button. You can now receive incoming calls. While receiving, RX displays. Monitor Mode Feature Your radio allows you to listen for weak signals on the current channel at the press of a key. To turn ON Monitor mode: Press and hold [ /MONI] for 2 seconds until two beeps sound. -
Page 10: Emergency Alert
1) Press [ ] button once, it will turn on continuously (Always On mode) . 2) And then, press [ ] button once, the Strobe Light emits the emergency signal. (Strobe emergency mode). 3) And then, press [ ] button once, the light will be turned off. Emergency Alert The Emergency Alert feature can be used to signal members in your group for help. -
Page 11: Selecting The Channel
Selecting the Channel The channel is the frequency of the radio uses to transmit. Your radio has 16 channels and 155 Sub-Codes you can use to talk to others. In order to speak to someone, both your radios must be set to the same channel and Privacy code. -
Page 12: Vox Function
VOX function FS-T7 enables hands free conversations through VOX function. 1) To activate VOX function press the [ /MENU] button 4 times and ‘VOX’ will appear on the display. 2) Use the [ ] or [ ] buttons to select the desired setting: The VOX sensitivity can be set in 3 different levels: •... -
Page 13: Keypad Beep
3) Press the [PTT] button to exit menu or [ /MENU] button to continue set up. WARNING: The Distress Alert feature should only be used in a true emergency. If the receiving group does not respond to the distress signal, Radioddity will not assume any responsibility. Keypad beep To deactivate the keypad beep, follow these steps: 1) Press the [ /MENU] button 7 times and until “... -
Page 14: Technical Specifications
Technical Specifications General Part Frequency Range Channels 22 FRS/12 Weather NOAA Sub-Codes 50 CTCSS Tones/ 105 DCS Codes Working temperature -10℃ to +50℃ Operation Voltage DC 3.7 V ±10% Operation Mode Simplex Dimensions 168mm×57mm×34.5mm (without Antenna) Weight 150g (Battery pack included) Antenna Impedance 50ohm Transmitter Part... -
Page 15: Appendix B. - Trouble Shooting Guide
Appendix B. – Trouble shooting guide Phenomena Analysis Solution The battery may be installed improperly. Remove and reattach the battery. The battery power may run out. Recharge or replace the battery. You cannot turn on the radio. The battery may suffer from poor contact Clean the battery contacts or replace caused by dirty or damaged battery contacts. - Page 16 Appendix C. –FRS Frequency Chart (MHz) CH.No CH.Freq. RF Power CH.No CH.Freq. RF Power High 462.5625 467.6625 462.5875 High 467.6875 462.6125 High 467.7125 462.6375 High 462.5500 High 462.6625 High 462.5750 High 462.6875 High 462.6000 High 462.7125 High 462.6250 High 467.5625 462.6500 High 467.5875...
-
Page 17: Appendix E. - Dcs Table
Appendix E. - DCS Table DCS CODE LIST Code Code Code Code Code D023 D025 D026 D031 D032 D036 D043 D047 D051 D053 D054 D065 D071 D072 D073 D074 D114 D115 D116 D122 D125 D131 D132 D134 D143 D145 D152 D155 D156 D162... -
Page 18: Appendix F. - Ctcss Table
Appendix F. - CTCSS Table CTCSS CHART (Hz) Number Frequency Number Frequency Number Frequency Number Frequency Number Frequency 67.0 69.3 71.9 74.4 77.0 79.7 82.5 85.4 88.5 91.5 94.8 97.4 103.5 107.2 110.9 114.8 118.8 123.0 127.3 131.8 136.5 141.3 146.2 151.4 156.7... - Page 19 certified power level, the actual SAR level of the device while operating can be well below the maximum value. Before a new model is a available for sale to the public, it must be tested and certified to the FCC/ISEDC that it does not exceed the exposure limit established by the FCC/ISEDC Tests for each product are performed in positions and locations as required by the FCC/ISEDC.
-
Page 20: Electromagnetic Interference/Compatibility
Cet équipement est conforme avec ISEDC les limites d’exposition aux rayonnements definies pour un contrôlé environnement. Cet émetteur ne doit pas être co-localisés ou fonctionner en conjunction avec une autre antenne ou émetteur. Cet équipement doit être installé utilisé avec un minimum de 2.5cm de distance entre le radiateur et votre corps. -
Page 21: Important Tips
any attempt to assemble or disassemble it is strictly prohibited. 2. Do not operate the product near or in any blasting area. 3. Do not operate the product near any medical or electronic equipment that is vulnerable to RF signals. 4. -
Page 22: Maintenance Instructions
instructions: 1. Do not charge or replace your battery in a location containing fuels, chemicals, explosive atmospheres and other flammable or explosive materials. 2. Do not charge your battery that is wet. Please dry it with a soft and clean cloth prior to charge. 3.
