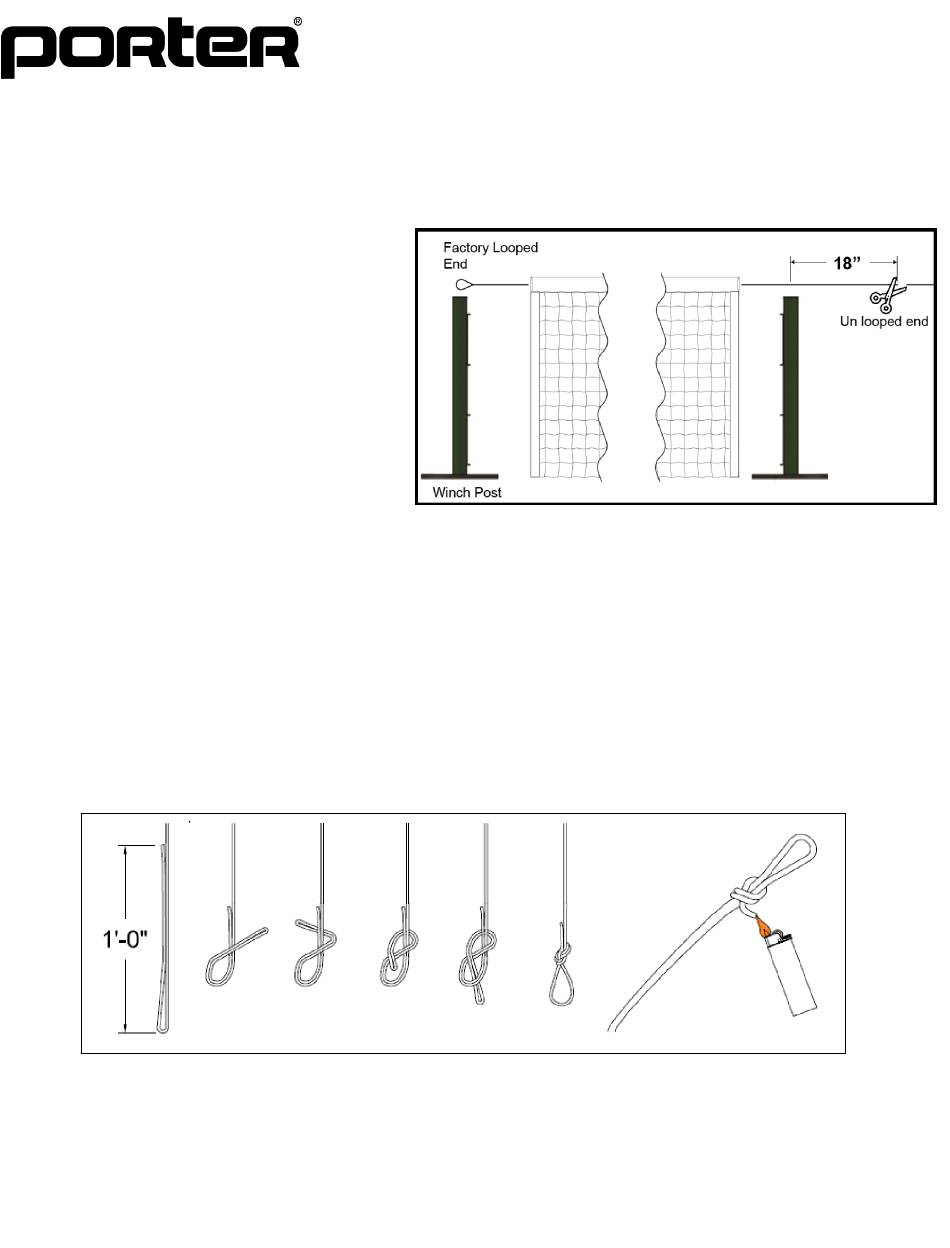

Step 1:
1 A - Lay the net down to expose both factory looped end and the un looped end.
Step 2:
2 A - Measure the total length between the 2
poles of the pickleball system ( center to center )
2 B - Add 18'' to the total length of the
measurement, cut the cable here.
Step 3:
3 A - Form loop as shown
3 B - Melt the cut end
Copyright 2011 by Porter Athletic.
All rights reserved.
PICKLEBALL NET INSTALL
2210
12/20/2024
INST2210
Page 1 of 3
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Porter 2210
Summary of Contents for Porter 2210
- Page 1 2 B - Add 18’’ to the total length of the measurement, cut the cable here. Step 3: 3 A - Form loop as shown 3 B - Melt the cut end 12/20/2024 Copyright 2011 by Porter Athletic. INST2210 All rights reserved. Page 1 of 3...
- Page 2 Figure A. Step 5: Attach the formed loop ( From Step 3 ) to the post’s internal hook as shown in Figure B. 12/20/2024 Copyright 2011 by Porter Athletic. INST2210 All rights reserved. Page 2 of 3...
- Page 3 7 A - Square up the net and lace it to the post using black lacing cord provided. Use the side grommets on the net to accept the lacing cords. 12/20/2024 Copyright 2011 by Porter Athletic. INST2210 All rights reserved.
