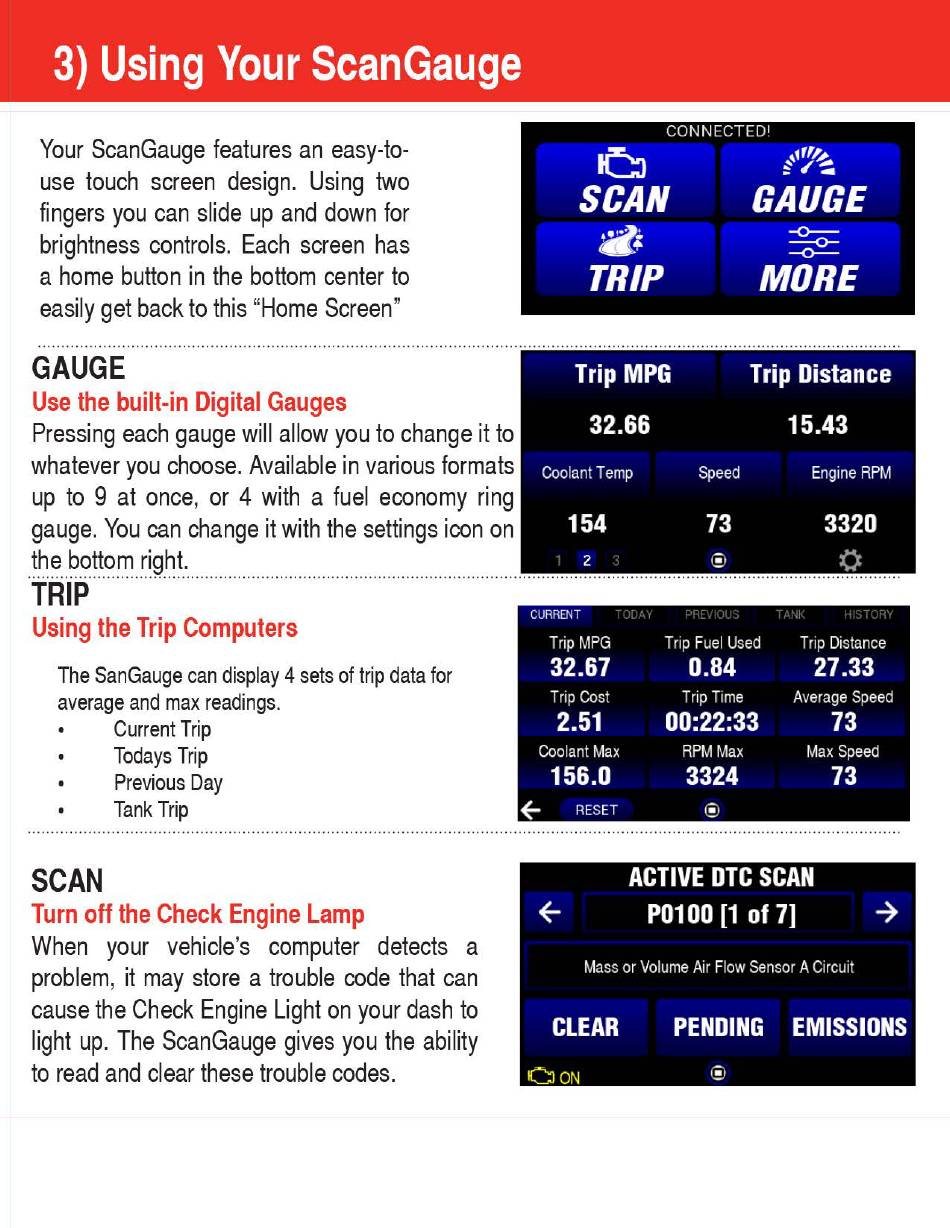

Linear Logic ScanGauge III Quick Start Manual page 4

3) Using Your ScanGauge
Your ScanGauge features an easy-lo-
use touch screen design. Using two
fingers you can slide up and down for
brightness controls. Each screen has
a home button in the bottom center to
easily get back to this "Home Screen"
GAUGE
Use the built-in Digital Gauges
Pressing each gauge will allow you to change it to
whatever you choose. Available in various formats
up to 9 at once, or 4 with a fuel economy ring
gauge. You can change it with the settings icon on
the bottom right.
fR1i> ························
Using the Trip Computers
The SanGauge can display 4 sets of trip data for
average and max readings.
CONNECTEDI
IC:!
~·"~ ~,..~
SCAN GAUGE
iili
TRIP MORE
Trip MPG Trip Distance
32.66 15.43
Coo lant Temp Speed Eng ine RPM
154 73 3320
(~ I
0
CURRENT
Trip MPG Trip Fuel Used Trip Distance
32.67 0.84 27.33
Trip Cost Trip Time Average Speed
2.51 00:22:33 73
Coolant Max
RPM Max
Max Speed
156.0 3324 73
Current Trip
Todays Trip
Previous Day
Tank Trip
~
RESET
E1
SCAN
Turn off the Check Engine Lamp
When your vehicle 's computer detects a
problem, it may store a trouble code that can
cause the Check Engine Light on your dash to
light up. The ScanGauge gives you the ability
to read and clear these trouble codes.
ACTIVE OTC SCAN
PD1 DD [1
of
7]
➔
Mass or Volume Air Flow Sensor A Circuit
CLEAR PENDING EMISSIONS
OON
