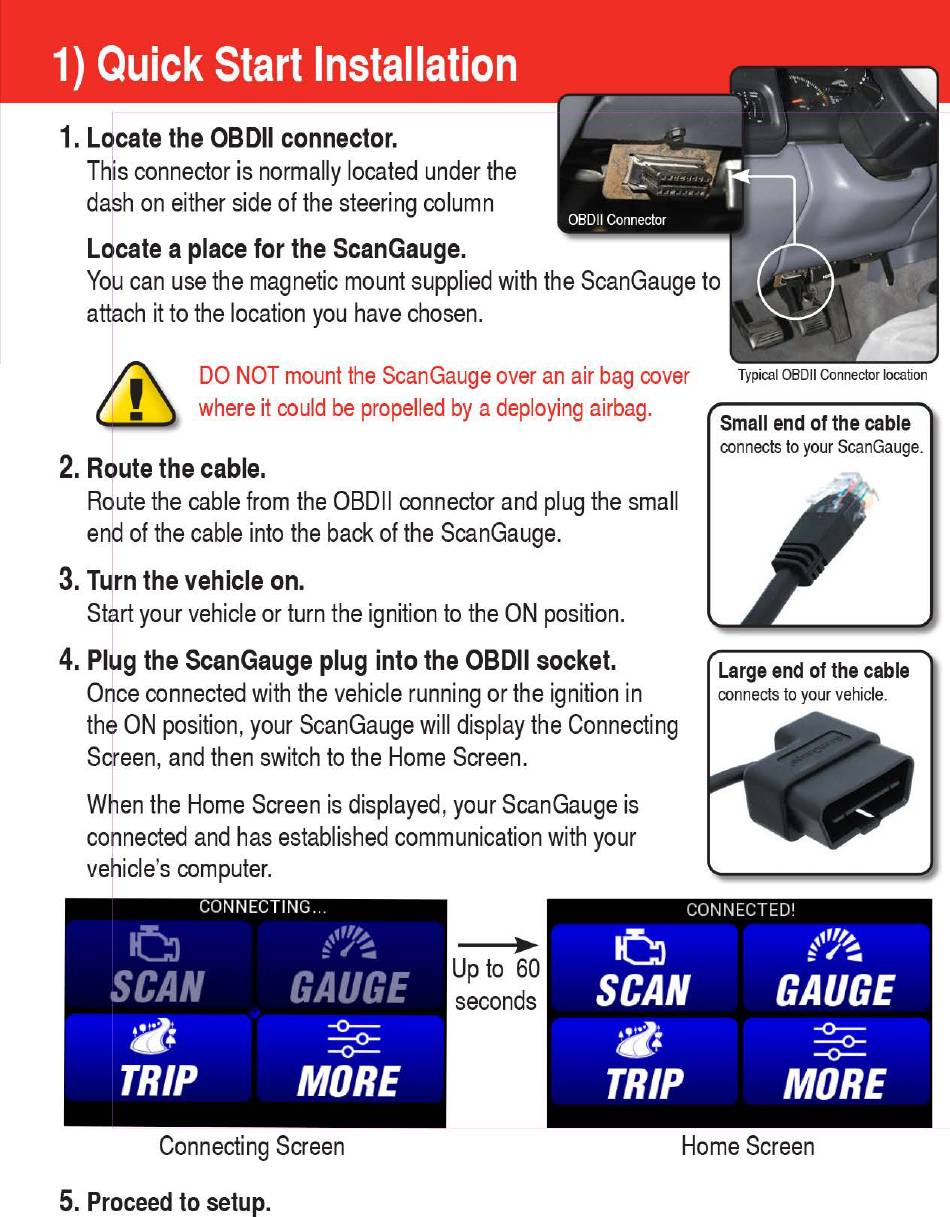

Linear Logic ScanGauge III Quick Start Manual page 2

1. Locate the OBDII connector.
This connector is normally located under the
dash on either side of the steering column
Locate a place for the ScanGauge.
You can use the magnetic mount supplied with the ScanGauge to
attach it to the location you have chosen.
/ ; \ DO NOT mount the Scan Gauge over an air bag cover
Typical OBDII Connector location
l..l.J
where it could be propelled by a deploying airbag.
2. Route the cable.
Route the cable from the OBDII connector and plug the small
end of the cable into the back of the Scan Gauge.
3. Turn the vehicle on.
Start your vehicle or turn the ignition to the ON position.
4. Plug the ScanGauge plug into the OBDII socket.
Once connected with the vehicle running or the ignition in
the
ON
position, your ScanGauge will display the Connecting
Screen, and then switch to the Home Screen .
When the Home Screen is displayed , your ScanGauge is
connected and has established communication with your
vehicle's computer.
CONN EC TIN G ..
a
SCAN
rili
TRIP
GAUGE
MORE
Connecting Screen
5. Proceed to setup.
_____,..
Up to 60
seconds
Small end of the cable
connects to your ScanGauge.
Large end of the cable
connects to your vehicle.
Home Screen
