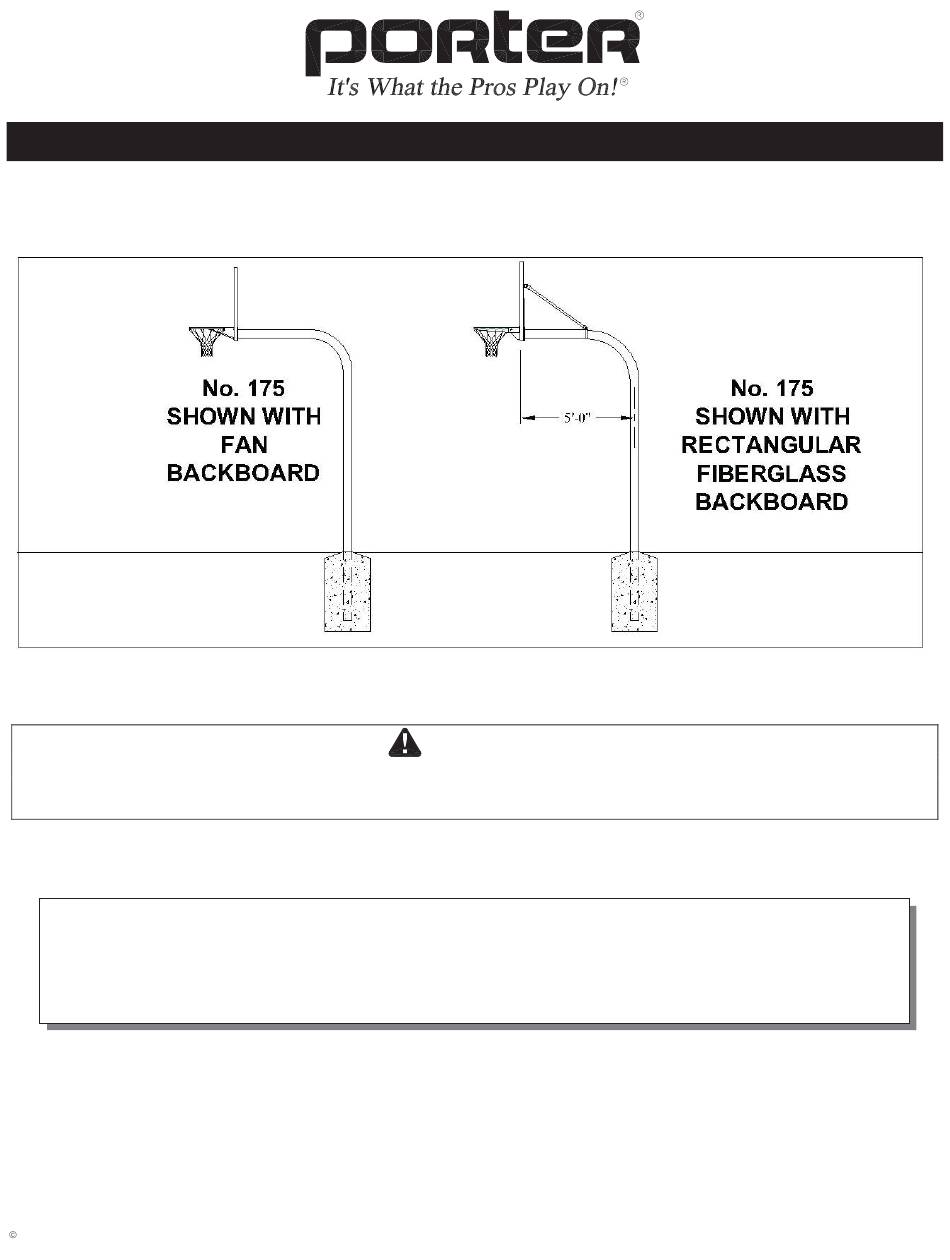

I
I
NSTALLATION
NSTRUCTIONS
O
B
5'-0" E
UTDOOR
ACKSTOP WITH
XTENSION
No
UU. 00175-_ _ _
WARNING
READ
ALL
INSTRUCTIONS
THOROUGHLY
BEFORE
ATTEMPTING
TO
INSTALL
THIS
EQUIPMENT.
INSTALLATION / ASSEMBLY OF THIS EQUIPMENT MUST BE DONE ONLY BY ADULTS, WHO ARE PHYSICALLY
CAPABLE OF DOING SO.
INSTALLER NOTE:
Upon completion of the installation/assembly of this backstop, make sure
this instruction manual is in the possession of the owner or facility
manager, to save for future reference, and to order replacement parts.
INST 00119 082
2010 PORTER ATHLETIC INC. ALL RIGHTS R0ESERVED.
9-1-2010
