Summary of Contents for Nordmende HGX903BGL

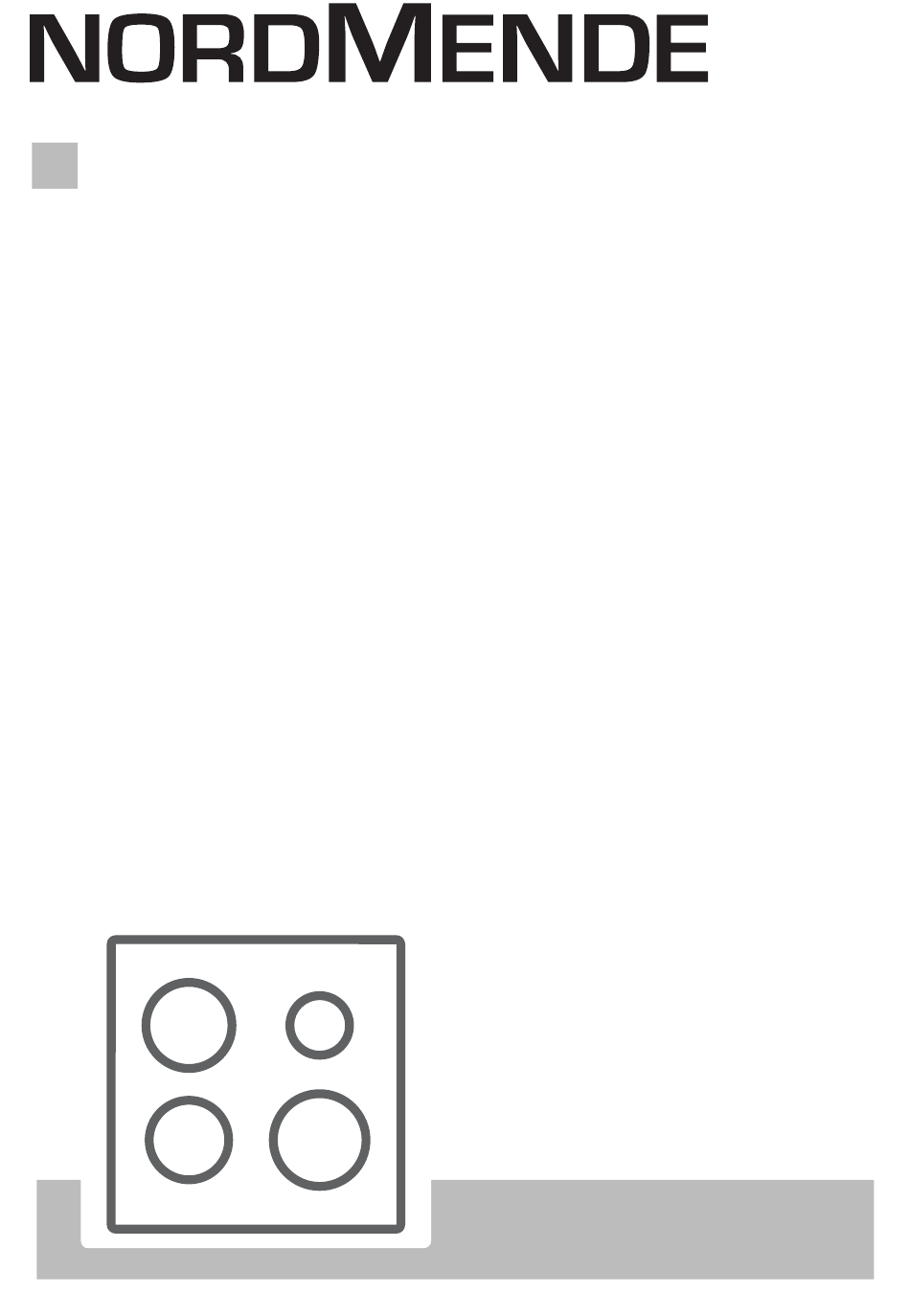

- Page 1 Hob / User Manual HGX903BGL...
- Page 2 Thank you for choosing this product. This User Manual contains important safety information and instructions on the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference. Icon Type Meaning...
-
Page 3: Table Of Contents
CONTENTS 1.SAFETY INSTRUCTIONS ....................4 1.1 General Safety Warnings ....................4 1.2 Installation Warnings ......................7 1.3 During Use ........................7 1.4 During Cleaning and Maintenance .................8 2.INSTALLATION AND PREPARATION FOR USE ............10 2.1 Instructions for the Installer ..................10 2.2 Installation of the Hob ....................11 2.3 Gas Connection ......................12 2.4 Gas Conversion (if available) ..................13 2.5 Electrical Connection and Safety (if available) .............14... -
Page 4: Safety Instructions
1. SAFETY INSTRUCTIONS • Carefully read all instructions before using your appliance and keep them in a convenient place for reference when necessary. • This manual has been prepared for more than one model therefore your appliance may not have some of the features described within. - Page 5 • For models which incorporate a hob lid, clean any spillages off the lid before use and allow the cooker to cool before closing the lid. • Do not operate the appliance by means of an external timer or separate remote-control system. • Do not use harsh abrasive cleaners or scourers to clean oven surfaces.
- Page 6 Particular attention should be given to the relevant requirements regarding ventilation. • If the burner has not lit after 15 seconds, stop operating the device and open the compartment door. Wait at least 1 minute before attempting to ignite the burner again. •...
-
Page 7: Installation Warnings
1.2 inStallation WarninGS • Do not operate the appliance before it is fully installed. • The appliance must be installed by an authorised technician. The manufacturer is not responsible for any damage that might be caused by defective placement and installation by unauthorised people. • When the appliance is unpacked, make sure that it has not been damaged during transportation. -
Page 8: During Cleaning And Maintenance
zone, and turn the handles to a safe position so they cannot be knocked or grabbed. • If the product will not be used for a long period of time, turn the main control switch off. Turn the gas valve off when a gas appliance is not in use. • Make sure the appliance control knobs are always in the “0”... - Page 9 CE Declaration of conformity We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced. This appliance has been designed to be used only for home cooking. Any other use (such as heating a room) is improper and dangerous.
-
Page 10: Installation And Preparation For Use
2. INSTALLATION AND PREPARATION FOR USE WARNING : This appliance must be Air inlet section min. 100 cm installed by an authorised service person or qualified technician, according to the instructions in this guide and in compliance with the current local regulations. -
Page 11: Installation Of The Hob
• If a cooker hood or cupboard is to be no access to the base of the appliance. installed above the appliance, the safety • The appliance can be placed close to distance between cooktop and any other furniture on condition that, in the cupboard/cooker hood should be as area where the appliance... -
Page 12: Gas Connection
Separator Separator • Apply the supplied one-sided self- of used gas is different than the values adhesive sealing tape all the way stated or is not stable in your area, it may around the lower edge of the cooktop. be necessary to assemble an available Do not stretch it. -
Page 13: Gas Conversion (If Available)
a naked flame to check for gas leakage. • All metal items that are used during Gas pipe Gas pipe gas connection must be free from Seal rust. Check the expiry date of any Hose components used for connection. fitting Hose fitting Points that must be checked during... -
Page 14: Electrical Connection And Safety (If Available)
Valve with flame failure device Burner cap Adapter Bypass screw Valve without flame Valve with flame failure failure device device Bypass Bypass Spanner screw screw (Inside the hole) Injector Adjusting the reduced flame position Changing the gas inlet First of all, make sure that the appliance For some countries, the gas inlet type is unplugged from the the mains electrical can be different for NG/LPG gases. - Page 15 this should be done by a qualified personnel. • Do not use adaptors, multiple sockets and/or extension leads. • The supply cord should be kept away from hot parts of the appliance and must not be bent or compressed. Otherwise the cord may be damaged, causing a short circuit.
-
Page 16: Product Features
3. PRODUCT FEATURES Important: Specifications for the product vary and the appearance of your appliance may differ from that shown in the figures below. List of Components 1. Gas Burner 2. Control Panel EN - 16... -
Page 17: Use Of Product
4. USE OF PRODUCT 4.1 uSe of GaS burnerS Ignition of the burners The position symbol above each control knob indicates the burner that the knob controls. Manual Ignition of the Gas Burners OFF position MAX position If your appliance is not equipped with an ignition aid, or in case there is a failure in the electric network, follow the procedures listed below. -
Page 18: Accessorries
To cut the gas flow to all burners, push the Rapid / Wok Burner 22-26 cm button as shown below. Semi-rapid Burner 14-22 cm Auxiliary Burner 12-18 cm Make sure that the tips of the flames do not spread out from the outer circumference of the pan, as this may harm plastic accessories, such as handles. -
Page 19: Cleaning And Maintenance
correctly after cleaning. • The surfaces of the pan supports may become scratched over time due to use. This is not a production fault. Do not use a metal sponge for CORRECT INCORRECT cleaning any part of the hob. Make sure no water gets into the burners as this may block the injectors. - Page 20 changed. • We recommend the gas connection components are changed annually If a defect is found while operating the control knobs of the appliance, contact an authorised service provider. EN - 20...
-
Page 21: Troubleshooting&Transport
6. TROUBLESHOOTING&TRANSPORT 6.1 troubleShootinG If you still have a problem with your appliance after checking these basic troubleshooting steps, please contact an authorised service person or qualified technician. Problem Possible Cause Solution The burners may be in the ´off` Check the position of oven and/or grill burner’s position. -
Page 22: Technical Specifications
7. TECHNICAL SPECIFICATIONS 7.1. injeCtor table G30 28-30mbar G20 20 mbar G30/G31 7,5 kW 545 g/h 28-30/37 mbar II2H3+ GB Class:3 LARGE BURNER DIA. of INJECTOR (1/100mm) NOMINAL RATING (KW) CONSUMPTION 285,7 l/h 218,1 g/h MEDIUM BURNER DIA. of INJECTOR (1/100mm) NOMINAL RATING (KW) 1,75 1,75... -
Page 23: Energy Fiche
7.2. enerGy fiChe Brand Model HGX903BGL Type of Hob Number of Cooking Zones Heating Technology-1 Size-1 Auxiliary Energy Efficiency-1 Heating Technology-2 Size-2 Semi-Rapid Energy Efficiency-2 59,0 Heating Technology-3 Size-3 Semi-Rapid Energy Efficiency-3 59,0 Heating Technology-4 Size-4 Rapid Energy Efficiency-4 57,0... - Page 24 52237312...
