Summary of Contents for Nordmende HCP604FL

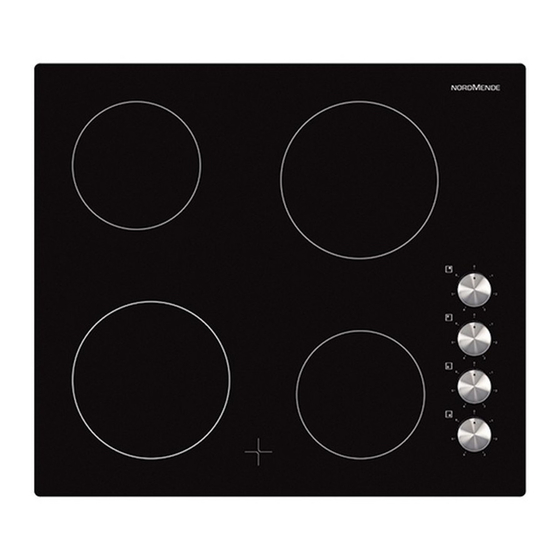

- Page 1 Hob / User Manual HCP604FL...
- Page 2 Thank you for choosing this product. This User Manual contains important safety information and instructions on the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference. Icon Type Meaning...
-
Page 3: Table Of Contents
CONTENTS 1.SAFETY INSTRUCTIONS ....................4 1.1 General Safety Warnings ....................4 1.2 Installation Warnings ......................6 1.3 During Use ........................7 1.4 During Cleaning and Maintenance .................7 2.INSTALLATION AND PREPARATION FOR USE ..............9 2.1 Installation of the Hob .....................9 2.2 Electrical Connection and Safety.................. 11 3.PRODUCT FEATURES ....................12 4.USE OF PRODUCT ......................13 4.1 Hob controls .........................13... -
Page 4: Safety Instructions
1. SAFETY INSTRUCTIONS • Carefully read all instructions before using your appliance and keep them in a convenient place for reference when necessary. • This manual has been prepared for more than one model therefore your appliance may not have some of the features described within. - Page 5 WARNING: Danger of fire: Do not store items on the cooking surfaces. WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock. • For models which incorporate a hob lid, clean any spillages off the lid before use and allow the cooker to cool before closing the lid.
-
Page 6: Installation Warnings
other purpose or in any other application, such as for non-domestic use, in a commercial environment or for heating a room. • All possible measures have been taken to ensure your safety. Since the glass may break, care should be taken when cleaning to avoid scratching. Avoid hitting or knocking the glass with accessories. -
Page 7: During Use
100°C. • The temperature of the bottom surface of the hob may rise during operation, therefore a board must be installed underneath the product. 1.3 DurinG uSe • Do not put flammable or combustible materials in or near the appliance while it is operating. Do not leave the cooker unattended when cooking with solid or liquid oils. - Page 8 CE Declaration of conformity We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced. This appliance has been designed to be used only for home cooking. Any other use (such as heating a room) is improper and dangerous.
-
Page 9: Installation And Preparation For Use
2. INSTALLATION AND PREPARATION FOR USE WARNING : This appliance must be installed by an authorised service person or qualified technician, according to the instructions in this guide Minimum Minimum 42 cm 42 cm and in compliance with the current local regulations. - Page 10 Separator Separator • Apply the supplied one-sided self- adhesive sealing tape all the way Worktop mounting around the lower edge of the cooktop. bracket Do not stretch the tape. Self-adhesive sealing tape • Screw the 4 worktop mounting brackets on to the side walls of the appliance. EN - 10...
-
Page 11: Electrical Connection And Safety
• Insert the appliance into the aperture. 2.2 eleCtriCal ConneCtion anD Safety WARNING: The electrical connection of this appliance should be carried out by an authorised service person or qualified electrician, according to the instructions in this guide and in compliance with the current local regulations. -
Page 12: Product Features
3. PRODUCT FEATURES Important: Specifications for the product vary and the appearance of your appliance may differ from that shown in the figures below. List of Components 1. Ceramic Heater 2. Control Panel EN - 12... -
Page 13: Use Of Product
4. USE OF PRODUCT decreased or until one of the cooking zones is activated. 4.1 hob ControlS Hints and Tips Ceramic Heater Important: When ceramic heaters are The ceramic heater is controlled by a 6 operated in higher heat settings, the position knob. -
Page 14: Cleaning And Maintenance
well away from the hob during operation ceramic cooktop.If plastic, tin foil, sugar and until it has fully cooled after or sugary foods have fallen on the hot operation. glass-ceramic cooktop, please scrape it off the hot surface as quickly and as •... -
Page 15: Troubleshooting&Transport
6. TROUBLESHOOTING&TRANSPORT 6.1 troubleShootinG If you still have a problem with your appliance after checking these basic troubleshooting steps, please contact an authorised service person or qualified technician. Problem Possible Cause Solution Check the household fuse for the appliance. The hob or cooking zones cannot be There is no power supply. -
Page 16: Technical Specifications
7. TECHNICAL SPECIFICATIONS 7.1 enerGy fiChe Brand Model HCP604FL Type of Hob Electric Number of Cooking Zones Heating Technology-1 Radiant Size-1 Ø14,5 Energy Consumption-1 Wh/kg 192,0 Heating Technology-2 Radiant Size-2 Ø14,5 Energy Consumption-2 Wh/kg 192,0 Heating Technology-3 Radiant Size-3 Ø18,0... - Page 17 52290578...
