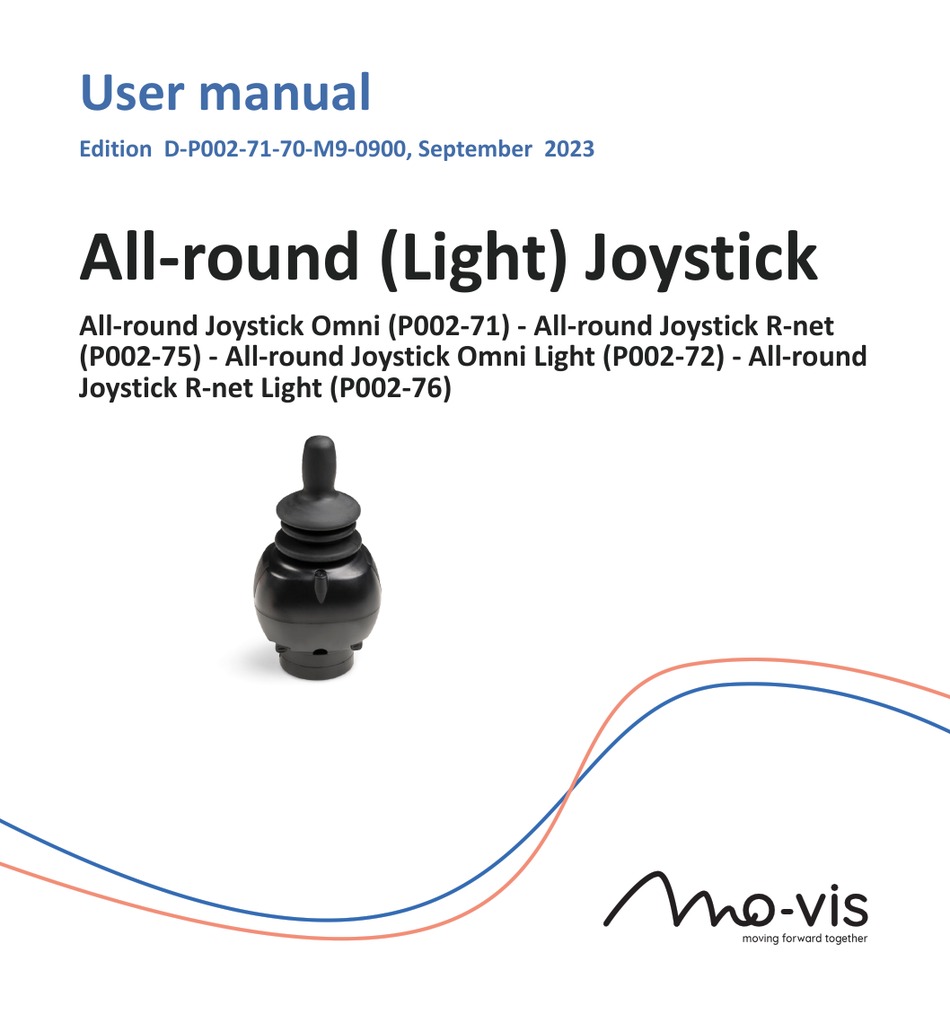

- Page 1 User manual Edition D-P002-71-70-M9-0900, September 2023 All-round (Light) Joystick All-round Joystick Omni (P002-71) - All-round Joystick R-net (P002-75) - All-round Joystick Omni Light (P002-72) - All-round Joystick R-net Light (P002-76) moving forward together...
-
Page 2: Table Of Contents
Contents Other languages ................. 2 About this manual ................3 User manual ................3 mo-vis bv ................... 3 User manual ..................5 Warning labels ................5 Support, scrapping & recycling ..........8 Limited liability ................9 Intended use ................9 Features .................. -
Page 3: Other Languages
Other languages CS: Tito příručku naleznete v češtině na našich webových stránkách. DA: Du kan finde denne manual på dansk på vores websted. DE: Auf unserer Website finden Sie diese Anleitung in Deutsch. EN: You can find this manual in English on our website. ES: Este manual está... -
Page 4: About This Manual
About this manual User manual Thank you for choosing a mo-vis product! This manual contains useful and important information about your device. Please read it carefully before use and store safely for future reference. Our team (or your authorized dealer) will be happy to answer your questions. - Page 5 CH-REP: SKS Rehab AG, Im Wyden, 8762 Schwanden GL, Switzerland. UK Responsible Person: QServe Group UK, Ltd., 49 Greek Street, London, WID 4EG, UK. All-round (Light) Joystick User manual...
-
Page 6: User Manual
User manual Warning labels Please read this manual, the safety instructions and warning texts carefully, in order to reduce the risks associated to the device. Our products are safe under normal and reasonably foreseeable operating conditions. NOTE: This symbol indicates general notes and information. CAUTION: This symbol indicates caution for a hazardous situation that, if not avoided, could result in minor or moderate injury. - Page 7 identified. Batch code: indicates the manufacturer's batch code so that the batch or lot can be identified. Medical device: indicates that the item is a medical device. Date of manufacture: indicates the date when the medical device was manufactured. Serial number: indicates the manufacturer's serial number so that a specific medical device can be identified.
- Page 8 indicates that a medical device should not be used if the package has been damaged or opened and that the user should consult the instructions for use for additional information. CE label: indicates that the manufac- turer or importer affirms the good's conformity with European health, safety, and environmental protec- tion standards.
-
Page 9: Support, Scrapping & Recycling
This ensures you are provided with the correct information. Spare parts and accessories Contact mo-vis or your dealer for more information about spare parts and accessories. Scrapping & recycling The expected lifetime of this device is 5 years. -
Page 10: Limited Liability
Limited liability mo-vis accepts no liability for personal injury or damage to property that may arise from the failure of the user or other persons to follow the recommendations, warnings and instructions in this manual. CAUTION: This product should only be installed by a qualified service engineer. -
Page 11: Features
• is the compact version of a standard electronic wheelchair joystick module. • is developed for all-round use. • is suitable for the major part of wheelchair users. • can be used as a standard joystick, chin joystick or as an attendant joystick. - Page 12 • is fully adjustable to individual possibilities and needs with well-thought- out electronics (USB-C connection). • is compatible with multiple types of wheelchair electronics. • equipped with a LED light in the housing which will start to flash in case of error.
-
Page 13: Operation
Avoid hitting obstacles during driving. WARNING: When the LED light flashes and/or after every incident with the wheelchair or the mo-vis device, contact your dealer immediately to perform a functional test. LED status The illumination of the LED on the joystick interface indicates the operational status of the joystick. -
Page 14: Parts And Accessories
JOYSTICK COLOUR COUNT STATE DESCRIPTION STATUS TIMING Configur- Orange Fast Wheelchair is configur- applicable Powercy- Orange Heartbeat Wheelchair waits for power cycle Focus Green Always on System is in focus Out of Green Heartbeat System is out of focus focus Out of Green Medium... - Page 15 EXAMPLE P002-71 ALL-ROUND P002-75 ALL-ROUND JOYSTICK OMNI AND JOYSTICK R-NET AND P002-72 ALL-ROUND P002-76 ALL-ROUND JOYSTICK OMNI LIGHT JOYSTICK R-NET LIGHT All-round Joystick All-round Joystick (Light) set, with inte- (Light) set, with inte- grated SUB D9 cable grated R-net cable D-P002-71-70-MX All-round Joystick User manual D-P002-71-70-M1 All-round Joystick Installation manual Accessories...
- Page 16 EXAMPLE PRODUCT DESCRIPTION ing set 8 mm M002-61 All-round Joystick mount- ing set 6 mm M002-76 All-round Joystick ball All-round (Light) Joystick User manual...
- Page 17 EXAMPLE PRODUCT DESCRIPTION (6.35 mm) M002-25 All-round Joystick table All-round (Light) Joystick User manual...
- Page 18 EXAMPLE PRODUCT DESCRIPTION mounting set P005-40 Satellite Twister (incl. All- round Joystick housing satellite insert), short cable (300 mm), black Available in other colors (40 = black, 41 = red, 42 = yellow, 43 = blue, 44 = green) Unit detail •...
-
Page 19: Qualifications
Spare parts Spare parts and accessories must be ordered by the dealer at mo-vis bv. Always mention the product code of the desired item. Qualifications CAUTION: Only a qualified service engineer may install the device. CAUTION: An incorrect programming of the wheelchair or device electronics, may cause damage to the devices or injury to the user. -
Page 20: Cleaning
Let the handle dry before putting it back on. • If the handle is damaged, worn out or remains dirty, please contact your authorized dealer or mo-vis to replace it. Warnings and limitations NOTE: This product complies with the limit values for Electromagnetic... -
Page 21: Connection Options
the harmonized standards for the EU in the Medical Device Regulation, No. 2017/745. WARNING: Do not cover or block the device to avoid uncontrolled behavior of the device or the wheelchair. CAUTION: If an output inhibit is programmed, then it should be checked monthly if this is still operational. - Page 22 Red = power on/off • • Yellow = mode WARNING: The on/off switch must be available to the user at all times. This allows to instantly stop the wheelchair in case of problems or an emergency. WARNING: Always power off the device when the user is no longer in the wheelchair to avoid unauthorized access or accidental movements.
-
Page 23: Combinations
Combinations There are different versions of this device available for combination with different wheelchair electronics. Please refer to the Installation Manual of this device for more information. Dimensions All-round Joystick Omni/R-net 110 x 66 x 60 mm / 4.33 x 2.60 x 2.36 in (HxWxD) All-round Joystick Omni/R-net Light 96.5 x 66 x 60 mm / 4.33 x 2.60 x 2.36 in (HxWxD) Mounting holes... - Page 24 All-round (Light) Joystick User manual...
- Page 25 moving forward together mo-vis bv . Biebuyckstraat 15D . 9850 Deinze - Belgium www.mo-vis.com . contact@mo-vis.com . +32 9 335 28 60 Go to our website for more information on our products or share your experience with us via email.
