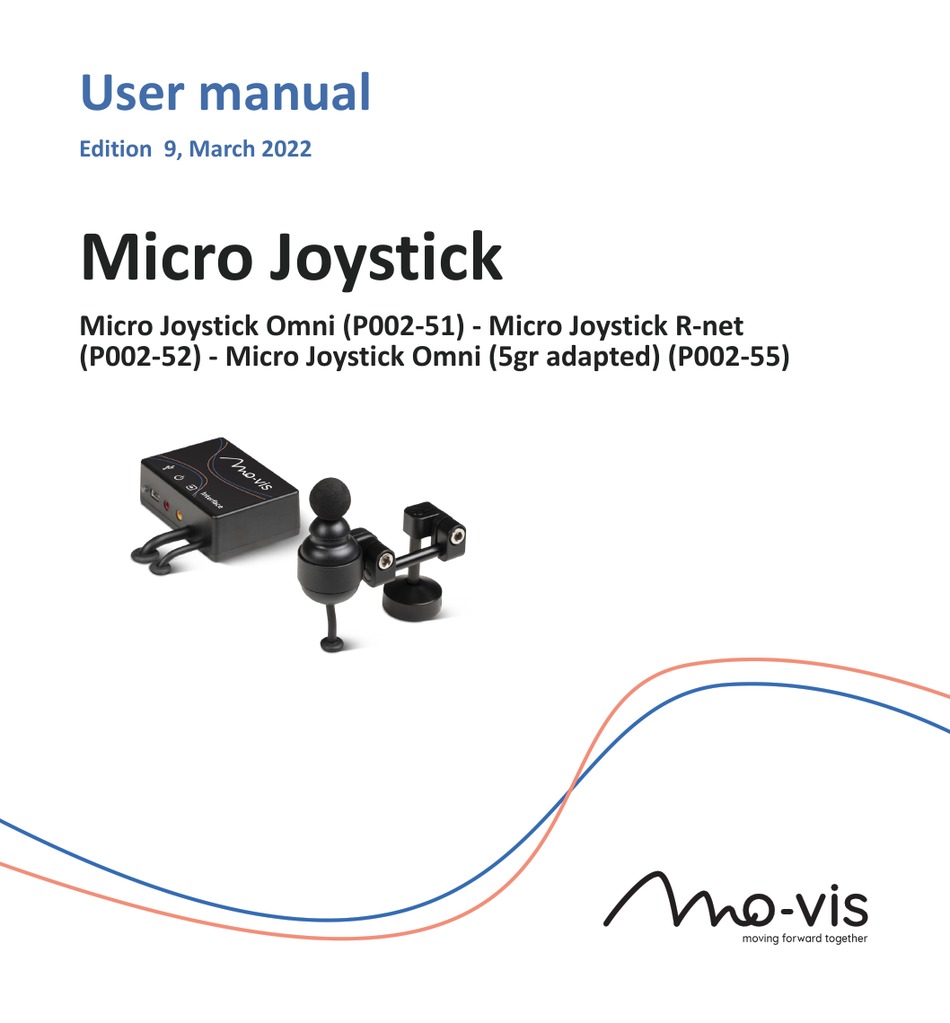

- Page 1 User manual Edition 9, March 2022 Micro Joystick Micro Joystick Omni (P002-51) - Micro Joystick R-net (P002-52) - Micro Joystick Omni (5gr adapted) (P002-55) moving forward together...
-
Page 2: Table Of Contents
Contents Other languages ................. 2 About this manual ................3 User manual ................3 mo-vis bv ................... 3 User manual ..................4 Warning labels ................4 Support, scrapping & recycling ..........7 Limited liability ................8 Intended use ................8 Features .................. -
Page 3: Other Languages
Other languages CS: Tito příručku naleznete v češtině na našich webových stránkách. DA: Du kan finde denne manual på dansk på vores websted. DE: Auf unserer Website finden Sie diese Anleitung in Deutsch. EN: You can find this manual in English on our website. ES: Este manual está... -
Page 4: About This Manual
About this manual User manual Thank you for choosing a mo-vis product! This manual contains useful and important information about your device. Please read it carefully before use and store safely for future reference. Our team (or your authorized dealer) will be happy to answer your questions. -
Page 5: User Manual
User manual Warning labels Please read this manual, the safety instructions and warning texts carefully, in order to reduce the risks associated to the device. Our products are safe under normal and reasonably foreseeable operating conditions. NOTE: This symbol indicates general notes and information. CAUTION: This symbol indicates caution for a hazardous situation that, if not avoided, could result in minor or moderate injury. - Page 6 identified. Batch code: indicates the manufacturer's batch code so that the batch or lot can be identified. Medical device: indicates that the item is a medical device. Date of manufacture: indicates the date when the medical device was manufactured. Serial number: indicates the manufacturer's serial number so that a specific medical device can be identified.
- Page 7 should not be used if the package has been damaged or opened and that the user should consult the instructions for use for additional information. CE label: indicates that the manufac- turer or importer affirms the good's conformity with European health, safety, and environmental protec- tion standards.
-
Page 8: Support, Scrapping & Recycling
Always state the product code and device serial number when contacting us. This ensures you are provided with the correct information. Spare parts and accessories Contact mo-vis or your dealer for more information about spare parts and accessories. Scrapping & recycling CAUTION: For scrapping, adhere to your local waste legislation. -
Page 9: Limited Liability
Limited liability mo-vis accepts no liability for personal injury or damage to property that may arise from the failure of the user or other persons to follow the recommendations, warnings and instructions in this manual. CAUTION: This product should only be installed by a qualified service engineer. -
Page 10: Features
• is a very small, proportional joystick, specifically designed for people with very poor or weak muscle strength and/or limited movements. • can easily be controlled by e.g. finger, chin, tongue, lip ... • is recommended for people with muscular or neuromuscular diseases. NOTE: The joystick operates with high sensitivity. - Page 11 • is very sensitive due to its low operating force (ca. 8 gr - 0.28 oz) and movement (3.3 mm - 0.13 in). • can be controlled by finger, chin, tongue, lip ... Micro Joystick User manual...
- Page 12 • is designed in ergonomic shape for easy handling. • has 2 switches that can be linked to the separate interface: (1) on/off power wheelchair - (2) mode of the power wheelchair. • is fully adjustable to individual possibilities and needs with well-thought- out electronics (mini USB connection).
-
Page 13: Operation
Special adaptation There is now also another version available of the Micro Joystick: the P002-55 Micro Joystick Omni (5gr adapted). The movement is still 3.3 mm - 0.13 in, but the operating force is now 5 gr - 0.18 oz. - Page 14 WARNING: When the LED light flashes and/or after every incident with the wheelchair or the mo-vis device, contact your dealer immediately to perform a functional test. LED status The illumination of the LED on the joystick interface indicates the operational status of the joystick.
-
Page 15: Parts And Accessories
Parts and accessories A Micro Joystick package consists of the following parts: EXAMPLE P002-51 - MICRO P002-52 - MICRO JOYSTICK OMNI / JOYSTICK R-NET P002-55 MICRO JOYSTICK OMNI (5 GR ADAPTED) P002-50 - Micro Joystick sensor NOTE: In the case of the P002-55, the P002-50 will be adapted for lower force M006-08 - Micro Joystick ball M006-09 - Micro Joystick cup (10.1 mm) - Page 16 EXAMPLE P002-51 - MICRO P002-52 - MICRO JOYSTICK OMNI / JOYSTICK R-NET P002-55 MICRO JOYSTICK OMNI (5 GR ADAPTED) M006-20 - Micro Joystick mounting set See Installation Manual SUB D9 cable and Joy- R-net cable and Joy- stick Omni Interface stick R-net Interface Micro Joystick User manual...
- Page 17 EXAMPLE P002-51 - MICRO P002-52 - MICRO JOYSTICK OMNI / JOYSTICK R-NET P002-55 MICRO JOYSTICK OMNI (5 GR ADAPTED) D-P002-51-70-MX Micro Joystick User manual D-P002-51-70-M9 Micro Joystick Installation manual Optional A third topper is optionally available: M006-27 Micro Joystick Cup (15.5 mm). Micro Joystick User manual...
- Page 18 The connections of the interface unit have protective covers to avoid the intrusion of dust or moist during usage. Spare parts Spare parts and accessories must be ordered by the dealer at mo-vis bv. Always mention the product code of the desired item. Micro Joystick User manual...
-
Page 19: Qualifications
Qualifications CAUTION: Only a qualified service engineer may install the device. CAUTION: An incorrect programming of the wheelchair or device electronics, may cause damage to the devices or injury to the user. First time use CAUTION: A qualified service engineer should assist during first time use of the device and make sure that all functions are clear to the user, including what to do in case of problems or doubt. -
Page 20: Warnings And Limitations
Let the handle dry before putting it back on. • If the handle is damaged, worn out or remains dirty, please contact your authorized dealer or mo-vis to replace it. Warnings and limitations NOTE: This product complies with the limit values for Electromagnetic... -
Page 21: Connection Options
Connection options The connection interface depends on the control version. Please see the Installation Manual for more information. You can connect 1 or 2 switches to the unit: Red = power on/off • • Yellow = mode Micro Joystick User manual... -
Page 22: Combinations
WARNING: The on/off switch must be available to the user at all times. This allows to instantly stop the wheelchair in case of problems or an emergency. WARNING: Always power off the device when the user is no longer in the wheelchair to avoid unauthorized access or accidental movements. -
Page 23: Dimensions
Dimensions Micro Joystick User manual... - Page 24 Micro Joystick User manual...
- Page 25 PART DIMENSIONS (METRIC) DIMENSIONS (IMPERIAL) Joystick 50 mm x 29 mm x 29 mm 1.97 in x 1.41 in x 1.41 in (HxWxD) (HxWxD) Ball 16 mm x 18 mm x 18 mm 0.63 in x 0.71 in x 0.71 in (HxWxD) (HxWxD) Cup (10.1...
- Page 26 Micro Joystick User manual...
- Page 27 . Biebuyckstraat 15D . 9850 Deinze - Belgium www.mo-vis.com . contact@mo-vis.com . +32 9 335 28 60 Go to our website for more information on our products or share your experience with us via email.
