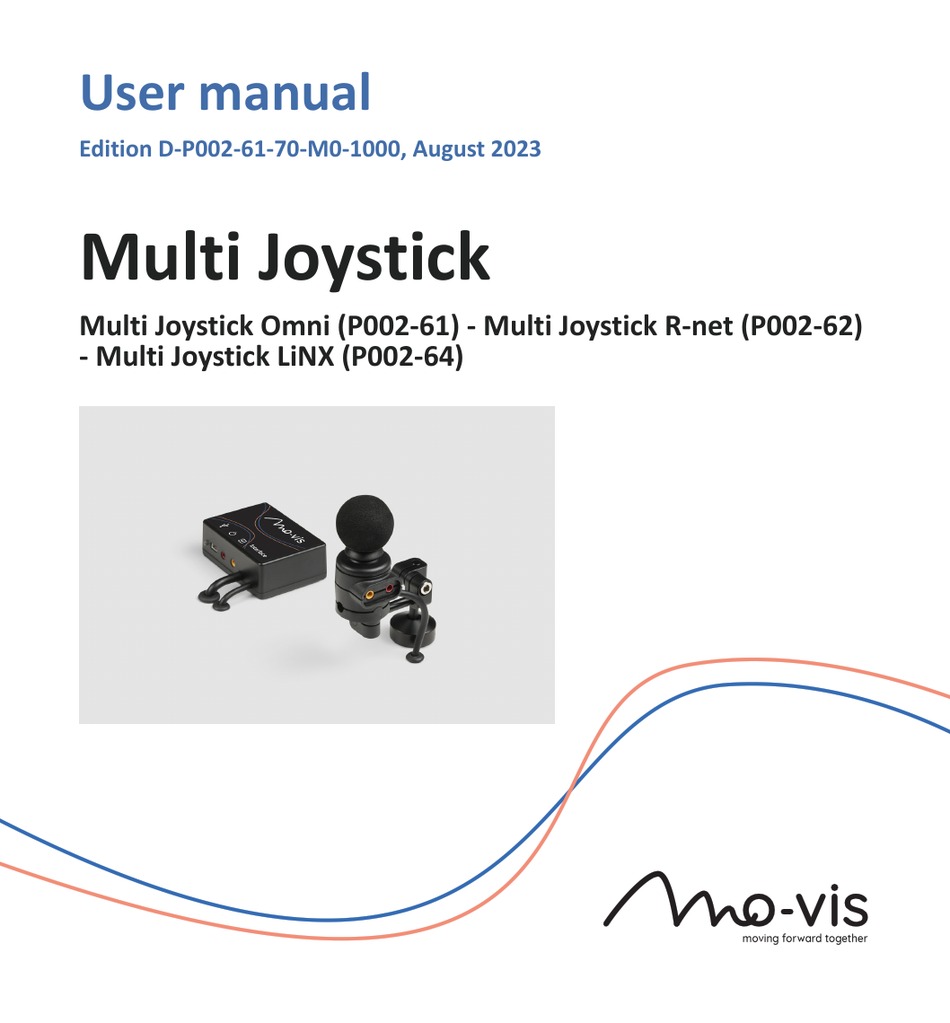

- Page 1 User manual Edition D-P002-61-70-M0-1000, August 2023 Multi Joystick Multi Joystick Omni (P002-61) - Multi Joystick R-net (P002-62) - Multi Joystick LiNX (P002-64) moving forward together...
-
Page 2: Table Of Contents
Contents Other languages ................. 2 About this manual ................3 User manual ................3 mo-vis bv ................... 3 User manual ..................5 Warning labels ................5 Support, scrapping & recycling ..........8 Limited liability ................9 Intended Use ................9 Features .................. -
Page 3: Other Languages
Other languages CS: Tito příručku naleznete v češtině na našich webových stránkách. DA: Du kan finde denne manual på dansk på vores websted. DE: Auf unserer Website finden Sie diese Anleitung in Deutsch. EN: You can find this manual in English on our website. ES: Este manual está... -
Page 4: About This Manual
About this manual User manual Thank you for choosing a mo-vis product! This manual contains useful and important information about your device. Please read it carefully before use and store safely for future reference. Our team (or your authorized dealer) will be happy to answer your questions. - Page 5 CH-REP: SKS Rehab AG, Im Wyden, 8762 Schwanden GL, Switzerland. UK Responsible Person: QServe Group UK, Ltd., 49 Greek Street, London, WID 4EG, UK. Multi Joystick User manual...
-
Page 6: User Manual
User manual Warning labels Please read this manual, the safety instructions and warning texts carefully, in order to reduce the risks associated to the device. Our products are safe under normal and reasonably foreseeable operating conditions. NOTE: This symbol indicates general notes and information. CAUTION: This symbol indicates caution for a hazardous situation that, if not avoided, could result in minor or moderate injury. - Page 7 identified. Batch code: indicates the manufacturer's batch code so that the batch or lot can be identified. Medical device: indicates that the item is a medical device. Date of manufacture: indicates the date when the medical device was manufactured. Serial number: indicates the manufacturer's serial number so that a specific medical device can be identified.
- Page 8 indicates that a medical device should not be used if the package has been damaged or opened and that the user should consult the instructions for use for additional information. CE label: indicates that the manufac- turer or importer affirms the good's conformity with European health, safety, and environmental protec- tion standards.
-
Page 9: Support, Scrapping & Recycling
This ensures you are provided with the correct information. Spare parts and accessories Contact mo-vis or your dealer for more information about spare parts and accessories. Scrapping & recycling The expected lifetime of this device is 5 years. -
Page 10: Limited Liability
Limited liability mo-vis accepts no liability for personal injury or damage to property that may arise from the failure of the user or other persons to follow the recommendations, warnings and instructions in this manual. CAUTION: This product should only be installed by a qualified service engineer. -
Page 11: Features
• is a small proportional joystick, which requires significant less power and movement compared to a normal joystick • can easily be controlled by any body part, including finger, chin, lip... thanks to its flexibility • is recommended for people with tetraplegia, neuromuscular diseases (ALS, MS...) and limited muscular force Features The Multi Joystick is:... - Page 12 Multi Joystick User manual...
- Page 13 • has 2 switches that can be linked to the separate interface: (1) on/off power wheelchair - (2) mode of the power wheelchair. • is fully adjustable to individual possibilities and needs with well-thought- out electronics (USB-C connection). • is compatible with multiple types of wheelchair electronics. •...
-
Page 14: Operation
Avoid hitting obstacles during driving. WARNING: When the LED light flashes and/or after every incident with the wheelchair or the mo-vis device, contact your dealer immediately to perform a functional test. LED status The illumination of the LED on the joystick interface indicates the operational status of the joystick. -
Page 15: Parts And Accessories
JOYSTICK COLOUR COUNT STATE DESCRIPTION STATUS TIMING Configur- Orange Fast Wheelchair is configur- applicable Powercy- Orange Heartbeat Wheelchair waits for power cycle Focus Green Always on System is in focus Out of Green Heartbeat System is out of focus focus Out of Green Medium... - Page 16 EXAMPLE P002-61 - MULTI P002-62 - MULTI P002-63 - MULTI JOYSTICK OMNI JOYSTICK R-NET JOYSTICK LINX P002-60 - Multi Joystick Sensor M002-05 - Multi Joystick ball M002-18 - Multi Joystick Mounting set See Installation SUB D9 cable R-net cable and LiNX cable and Manual and Joystick...
- Page 17 EXAMPLE P002-61 - MULTI P002-62 - MULTI P002-63 - MULTI JOYSTICK OMNI JOYSTICK R-NET JOYSTICK LINX D-P002-61-70-MX Multi Joystick User Manual D-P002-61-70-M1 Multi Joystick Installation Manual Optional A second topper is optionally available: M002-53 Multi Joystick Cup. Unit detail The connections of the Multi Joystick unit have protective covers to avoid the intrusion of dust and moisture during usage.
-
Page 18: Qualifications
Spare parts Spare parts and accessories must be ordered by the dealer at mo-vis bv. Always mention the product code of the desired item. Qualifications CAUTION: Only a qualified service engineer may install the device. CAUTION: An incorrect programming of the wheelchair or device electronics, may cause damage to the devices or injury to the user. -
Page 19: First Time Use
You may shortly immerse the handle in warm water with a gentle cleaning agent. Let the handle dry before putting it back on. • If the handle is damaged, worn out or remains dirty, please contact your authorized dealer or mo-vis to replace it. Multi Joystick User manual... -
Page 20: Warnings And Limitations
Warnings and limitations NOTE: This product complies with the limit values for Electromagnetic Compatibility (EMC) with respect to power wheelchairs, as set out in the harmonized standards for the EU in the Medical Device Regulation, No. 2017/745. WARNING: Do not cover or block the device to avoid uncontrolled behavior of the device or the wheelchair. - Page 21 You can connect 1 or 2 switches to the unit: • Red = power on/off Yellow = mode • WARNING: The on/off switch must be available to the user at all times. This allows to instantly stop the wheelchair in case of problems or an emergency.
-
Page 22: Combinations
WARNING: Always power off the device when the user is no longer in the wheelchair to avoid unauthorized access or accidental movements. Combinations There are different versions of this device available for combination with different wheelchair electronics. Please refer to the Installation Manual of this device for more information. - Page 23 Side view: Multi Joystick User manual...
- Page 24 PART DIMENSIONS (METRIC) DIMENSIONS (IMPERIAL) Joystick 65 mm x 31 mm x 31 2.55 in x 1.22 in x 1.22 Multi Joystick User manual...
- Page 25 PART DIMENSIONS (METRIC) DIMENSIONS (IMPERIAL) mm (HxWxD) Ball 26 mm x 30 mm x 30 1.02 in x 1.18 in x 1.18 22 mm x 24 mm x 24 0.87 in x 0.94 in x 0.94 Multi Joystick User manual...
- Page 26 Multi Joystick User manual...
- Page 27 . Biebuyckstraat 15D . 9850 Deinze - Belgium www.mo-vis.com . contact@mo-vis.com . +32 9 335 28 60 Go to our website for more information on our products or share your experience with us via email.
