Summary of Contents for Amewi AMXFLIGHT 24127

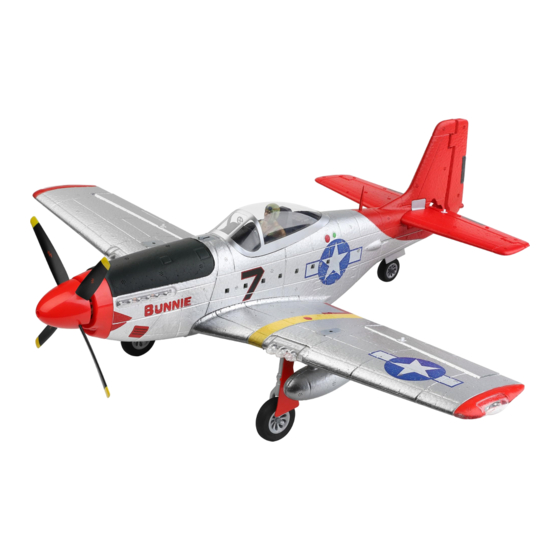

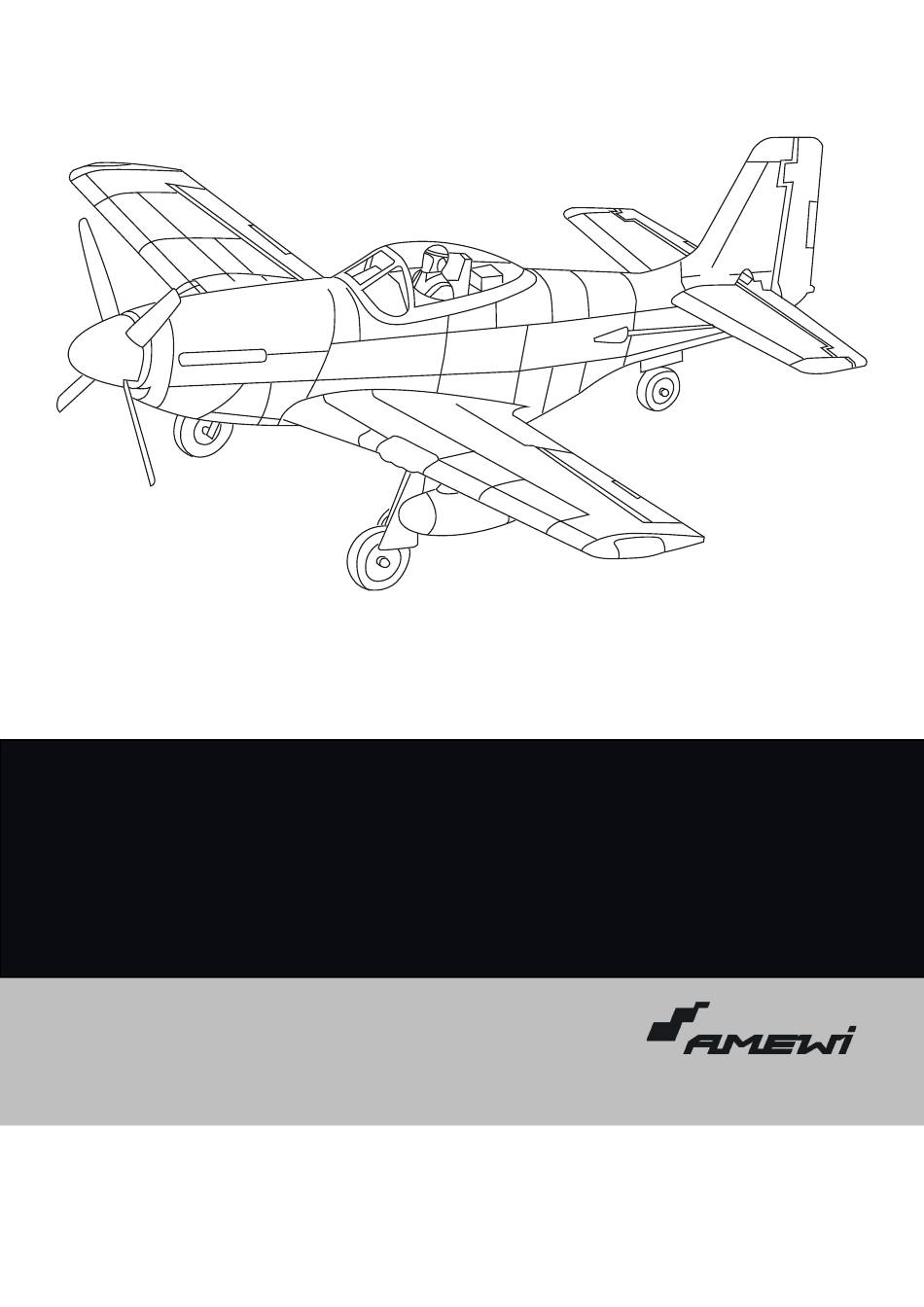

- Page 1 AMXFLIGHT P-51 3D/6G RTF 24127 JUST REMOTE-CONTROLLED BEDIENUNGSANLEITUNG OPERATION MANUAL...
- Page 3 Welcome to AMEWI The Amewi Trade GmbH is an international import- and wholesale company for R/C models, toys and creative items, located in Borchen near Paderborn, Germany. Our product range includes over 10,000 items. Above all, this includes remote-controlled car, helicopter, boat, and tank models as well as a wide range of accessories and all necessary spare parts.
-
Page 4: Sicherheits- Und Gefahrenhinweise
This product has been manufactured according to actual technical standards. The product is matching the requirements of the existing European and national guidelines. The Declaration of Conformity has been proofed. AMEWI Trade GmbH declares that this product is matching the basic requirements and remaining regulations of the guideline 2014/53/EU {RED). The declarations and documents are stored at the manufacturer and can be requested and applied there. - Page 5 Improper use such as short-circuiting, or overcharging may result in explosion or fire. Keep the battery in a safe place that babies or children cannot reach. The above indicates the danger of using the battery. The user assumes full responsibility for the outcome of using the battery. amewi.com...
- Page 6 DISPOSAL ENTSORGUNGSHINWEISE / Die Firma AMEWI Trade GmbH ist unter der Batt-Reg.-Nr. DE 77735153 sowie der WEEE-Reg.-Nr. 93834722 bei der Stiftung EAR angemeldet und recycelt alle gebrauchten elektronischen Bauteile ordnungsgemäß. Elektrische und elektronische Geräte dürfen nicht in den Hausmüll. Entsorgen Sie das Produkt am Ende seiner Lebensdauer gemäß...
- Page 7 Vielen Dank für den Kauf des Amewi AMXFlight P-51 Flugzeugs. Bitte lesen Sie die Bedienungsanleitung aufmerksam durch und bewahren Sie sie für spätere Fragen auf. Thank you for purchasing the Amewi AMXFlight P-51 Airplane. Please read the instruction manual carefully and keep it for future reference.
-
Page 8: Wichtige Hinweise
Sendemasten. Orten mit aktiven Funkwellen. Near crowds or in public places. Near rivers, ponds or lakes. Near electricity pylons or other Near a radio tower, mobile phone transmission towers. masts or other places with active radio waves. amewi.com... - Page 9 Da das Produkt kleinteile enthält, auf öffentlichen Straßen oder halten Sie es von kleinen Kindern fern. überfüllten Plätzen. As the product contains small parts, Do not operate the model on keep it away from small children. public roads or crowded places. amewi.com...
- Page 10 (looking from the head of the aircraft) as shown in the illustration. 2. Connect the plugs of the LEDs on the fuselage and on the wing to the adapter as desired. Note: The connector of the lights is different from that of the Y-cable of the servos. amewi.com...
- Page 11 First install a tank on one side of the side of the wing. Note that the front and back sides of the wing. Attach it with a 1.7x8mm screw. tank must not be installed incorrectly. INSTALLATION OF FRONT LANDING GEAR MONTAGE DES VORDEREN FAHRWERKS / amewi.com...
- Page 12 Öffnen Sie die Akkufachabdeckung, Schalten Sie die Fernsteuerung ein. Verschließen Sie das Akkufach. schließen Sie den Akku am ESC an und Sobald die Status-LED dauerhaft Close the battery compartment. platzieren Sie den Akku möglichst weit leuchtet, sind Sender und Empfänger verbunden. amewi.com...
- Page 13 Push the throttle lever to full throttle. With a pull of the elevator lever, let the aircraft take off. TAKE OFF FROM THE HAND STARTEN AUS DER HAND / Wind Falsche Wurfmethode Throwing error method Richtige Wurfmethode Correct throwing method Falsche Wurfmethode Throwing error method amewi.com...
- Page 14 NOTE: The electronics have an emergency system that you can activate in 3D mode by pressing the 3D/6G button. If you cannot control the aircraft properly, press the 3D/6G button and the aircraft will stabilise. This can prevent a possible crash. amewi.com...
- Page 15 2. Schraube die M5 Mutter mit einem Schraubenschlüssel heraus. Entferne den alten Propeller durch einen neuen. Unscrew the screw A counterclockwise from the spinner cap B using a screwdriver. Unscrew the M5 nut with a wrench. Remove the old propeller with a new one. amewi.com...
-
Page 16: Replace Motor
Unplug the motor from ESC. Ziehen Sie den Motor nach vorne ab und ersetzen Sie ihn durch den neuen Motor. Unscrew the two 2x10mm screws. Pull the motor off to the front and replace it with the new motor. amewi.com... - Page 17 B - Halten Sie den Trimm-Knopf gedrückt und schalten Sie die Fernsteuerung ein, um zwischen Mode 1 und 2 zu wechseln. Press and hold the trim button and switch on the remote control to change between mode 1 and 2. amewi.com...
-
Page 18: Batterien Einlegen
Sie keine Batterien unterschiedlichen Typs. Open the battery compartment cover and insert 6 AA batteries. Be sure to observe the polarity. Do not use rechargeable batteries, do not mix old and new batteries and do not mix batteries of different types. amewi.com... -
Page 19: Potentiometer Calibration
Pull the throttle lever to the lowest position, leaving the other lever in the middle position. Press and hold the aileron trim button and switch on the remote control. The status light will light up and the changeover is complete. Mode 1 – Gas rechts / Right hand hrottle Mode 2 – Gas links / Left hand throttle amewi.com... -
Page 20: Pre-Flight Adjustments
If this all fits, check that the motor is running. Just give it a little throttle. 2. Check that the centre of gravity is correct. Under normal circumstances the centre of gravity is about 40mm behind the leading edge of the wing. amewi.com... -
Page 21: Bedienung
Hoch Sinken – Ruder Steigen – Ruder Down nach unten nach oben Descent – Down rudder down Rise – rudder up Links Rechts Left Right Runter Hoch Hoch Runter Down Down Rechts Links Right Left Links Rechts Left Right amewi.com... - Page 22 The mode can be reset to 6G mode by pressing the 6G/Senior switch again. We recommend that beginners fly in 6G mode only. Senior mode is even more sensitive than 3D mode. Only use it if you have perfect control of the aircraft in 3D mode. amewi.com...
-
Page 23: Fehlersuche
Gashebel in der untersten versehentlich verstellt. Position befindet. The motor is running after landing although The throttle trim was accidentally adjusted Reset the throttle trim to center position. the throttle is in the lowest position. during the flight. amewi.com... - Page 24 BEDIENUNGSANLEITUNG / INSTRUCTION MANUAL P-51 3D/6G amewi.com...
