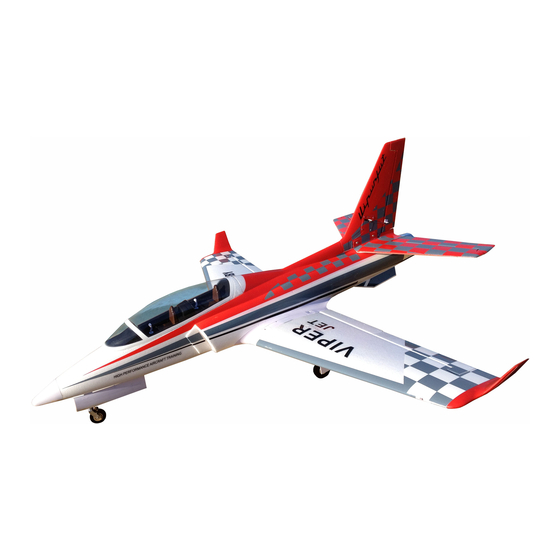

  • Page 1 AMXFlight VIPER JET 24097 PNP Pro | 24098 PNP | 24099 PNP Super Snake BEDIENUNGSANLEITUNG / MANUAL...
  • Page 2 BEDIENUNGSANLEITUNG / INSTRUCTION MANUAL VIPER JET V4 Herzlich willkommen bei Amewi AMEWI TRADE e.K. ist ein junges, international tätiges Import- und Großhandelsunternehmen im Bereich RC Modellbau und Spielwaren, mit Sitz in Borchen bei Paderborn. Unsere Produktpalette beinhaltet über 6.000 Artikel. Dazu gehören vor allem ferngesteuerte Auto-, Hubschrauber-, Boots- und Panzermodelle sowie ein reichhaltiges Zubehör und alle erforderlichen Ersatzteile.
  • Page 3: Hinweise Zur Konformität

    Dieses Modell wurde nach derzeit aktuellem Stand der Technik gefertigt. Das Produkt erfüllt die Anforderungen der geltenden europäischen und nationalen Richtlinien. Die CE-Konformität wurde nachgewiesen. Die Firma Amewi Trade e.K. erklärt hiermit, dass dieses Produkt den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 2014/53/EU (RED) entspricht.
  • Page 4 BEDIENUNGSANLEITUNG / INSTRUCTION MANUAL VIPER JET V4 ENTSORGUNGSHINWEISE Die Firma Amewi Trade e.K. ist unter der WEEE Reg. Nr. DE93834722 bei der Stiftung EAR angemeldet und recycelt alle gebrauchten elektronischen Bauteile ordnungsgemäß. Elektrische und elektronische Geräte dürfen nicht in den Hausmüll. Entsorgen Sie das Produkt am Ende seiner Lebensdauer gemäß den geltenden gesetzlichen Vorschriften.
  • Page 5: Vielen Dank

    BEDIENUNGSANLEITUNG / INSTRUCTION MANUAL VIPER JET V4 VIELEN DANK Vielen Dank für den Kauf der Viper V4. Bitte lesen Sie die Bedienungsanleitung aufmerksam durch und bewahren Sie sie für spätere Fragen auf. WARNUNG Dieses Flugzeug ist kein Spielzeug. Er besteht aus vielen Kleinteilen und ist nicht geeignet für Kinder unter 14 Jahren. •...
  • Page 6 BEDIENUNGSANLEITUNG / INSTRUCTION MANUAL VIPER JET V4 VORSICHTSMASSNAHMEN Bitte lesen Sie die folgenden Sicherheitsinformationen bevor Sie das Modell benutzen. Bitte nutzen Sie das Modell nicht bei Regen, Schnee oder Gewitter. Wenn Flüssigkeit in die Elektronik eindringt, kann diese • irreparabel beschädigt werden. Bitte nutzen Sie das Modell nicht in einer Umgebung, die Sie nicht einsehen können.
  • Page 7 BEDIENUNGSANLEITUNG / INSTRUCTION MANUAL VIPER JET V4 AKKU ANSCHLUSS 1. Heben Sie die Vorderseite der Haube vorsichtig an und ziehen Sie dann die Haube nach vorne heraus. 2. Platzieren Sie den Akkuanschluss vorne im Akkufach und legen Sie den Akku möglichst weit vorne hinein. 3.
  • Page 8 BEDIENUNGSANLEITUNG / INSTRUCTION MANUAL VIPER JET V4 PCB ANSCHLUSSPLAN Höhenruder Seitenruder Querruder Einziehfahrwerk Landeklappen Anschluss Querruder Anschluss Höhenruder Anschluss Seitenruder Anschluss...
  • Page 9: Montage Des Fahrwerks

    BEDIENUNGSANLEITUNG / INSTRUCTION MANUAL VIPER JET V4 MONTAGE DES FAHRWERKS Stellen Sie beim Einfahren des Bugfahrwerks sicher, dass sich der Servoarm in der gleichen Position wie auf dem Bild befindet. Wenn Sie die Anlenkung des Bugfahrwerk mit dem innersten Loch am Servoarm anschließen, sollte der Servoarm auf 3 Uhr zeigen.
  • Page 10 BEDIENUNGSANLEITUNG / INSTRUCTION MANUAL VIPER JET V4 Schrauben 3x25mm 2 Stück Schrauben 3x5mm 4 Stück Schrauben 3x12mm 4 Stück...
  • Page 11 BEDIENUNGSANLEITUNG / INSTRUCTION MANUAL VIPER JET V4 SCHWERPUNKT EINSTELLEN Legen Sie den Akku in das Akkufach. Verwenden Sie zur Befestigung ein Klettband. Es ist am einfachsten das Flugzeug umgedreht auszubalancieren. 100mm 100mm...
  • Page 12 BEDIENUNGSANLEITUNG / INSTRUCTION MANUAL VIPER JET V4 SERVO DREHRICHTUNG TEST Höhenruder Hebel Höhenruder oben Hebel Höhenruder unten Querruder Hebel Querruder links Hebel Querruder rechts Seitenruder Hebel Seitenruder rechts Hebel Seitenruder links Landeklappen Landeklappen oben Landeklappen unten...
  • Page 13: Starten Aus Der Hand

    BEDIENUNGSANLEITUNG / INSTRUCTION MANUAL VIPER JET V4 FLUGVORBEREITUNG CHECKLISTE Laden Sie den Flug Akku. Stellen Sie Servos entsprechend ein. Befestigen Sie den Akku im Rumpf (Klettband). Führen Sie einen Reichweiten Check durch. Schalten Sie den Sender ein, anschließend das Flugzeug. Fliegen Sie nur auf einsprechenden Modellflugplätzen.
  • Page 14 BEDIENUNGSANLEITUNG / INSTRUCTION MANUAL VIPER JET V4 FEHLERKORREKTUREN PROBLEM MÖGLICHE URSACHE LÖSUNG Das Flugzeug reagiert nicht auf den Der Gashebel befindet sich nicht ganz unten und Stellen Sie die Trimmung auf 0 und ziehen Sie den Gashebel, anderen Funktionen sind oder die Gastrimmung ist zu hoch eingestellt.
  • Page 15 BEDIENUNGSANLEITUNG / INSTRUCTION MANUAL VIPER JET V4 Regler ist ausgeschaltet. Schalten Sie den Regler an. Servo drehen falsch herum. Sender Einstellungen sind verkehrt herum. Stellen Sie die Richtung am Sender entsprechend um. Der Motor dreht, dann verliert er Leistung. Der Regler verwendet soft Low Voltage Cut off Laden Sie den Akku auf.
  • Page 16 700 specialist dealer and online retailers across Europe. The company AMEWI Trade e.K. is a pure wholesale company. We only sell our products to retailers. When you purchase AMEWI products as an end consumer, you are entering into a contract with the retailer. Please always contact your dealer in warranty cases.
  • Page 17 This product has been manufactured according to actual technical standards. The product is matching the requirements of the existing European and national guidelines. The Declaration of Conformity has been proofed. AMEWI Trade e.K. declares that this product is matching the basic requirements and remaining regulations of the guideline 2014/53/EU {RED).
  • Page 18 BEDIENUNGSANLEITUNG / INSTRUCTION MANUAL VIPER JET V4 DISPOSAL The company AMEWI is registered below the WEEE Reg. Nr. DE93834722 at the foundation EAR and recycles all used electronic parts properly. Electric and electronical products are not allowed to put in household garbage.
  • Page 19: Important Notice

    BEDIENUNGSANLEITUNG / INSTRUCTION MANUAL VIPER JET V4 THANK YOU Thank you for purchasing the Viper V4. Please read the operating instructions carefully and keep them for your future reference. WARNING This remote-controlled plane is not a toy - it consists of many small parts and is not suitable for children under 14 years of •...
  • Page 20 BEDIENUNGSANLEITUNG / INSTRUCTION MANUAL VIPER JET V4 PRCAUTIONS Please read the following safety information before using the model! Please do not use the model in rain, snow, or thunderstorms. If liquid gets into the electronics, it can be irreparably damaged. •...
  • Page 21: Installing Battery

    BEDIENUNGSANLEITUNG / INSTRUCTION MANUAL VIPER JET V4 INSTALLING BATTERY 1. Carefully lift the front of the canopy (A) and pull the canopy forward and off the fuselage. 2. Place the battery connector toward the front of the airplane and install the flight battery (B) all the way to the front of the battery compartment.
  • Page 22 BEDIENUNGSANLEITUNG / INSTRUCTION MANUAL VIPER JET V4 PCB WIRES INTEGRATION Tail Wing Rudder Wing Main Wing Retract Landing Gear Flaps Output Line Aileron Output Line Elevator Output Line Rudder Output Line...
  • Page 23: Installing The Landing Gear

    BEDIENUNGSANLEITUNG / INSTRUCTION MANUAL VIPER JET V4 INSTALLING THE LANDING GEAR About the retract of nose gear, please make sure, the servo arm is in the same position as picture. When you connect the nose gear linkage into the inner-most hole in the steering servo arm in the nose, the servo arm should be as 3 o' clock.
  • Page 24 BEDIENUNGSANLEITUNG / INSTRUCTION MANUAL VIPER JET V4 Screw 3x25mm 2 pcs Screw 3x5mm 4 pcs Screw 3x12mm 4 pcs...
  • Page 25 BEDIENUNGSANLEITUNG / INSTRUCTION MANUAL VIPER JET V4 CENTER OF GAVITY (CG) Place the battery all the way forward in the battery compartment and hold it in place using hook and loop straps. It is easier to balance the aircraft with the aircraft is inverted. 100mm 100mm...
  • Page 26: Control Direction Test

    BEDIENUNGSANLEITUNG / INSTRUCTION MANUAL VIPER JET V4 CONTROL DIRECTION TEST Elevator Elevator up Elevator down Aileron Stick left Stick right Rudder Stick right Stick left Flaps Flaps up Flaps down...
  • Page 27: Preflight Checklist

    BEDIENUNGSANLEITUNG / INSTRUCTION MANUAL VIPER JET V4 PREFLIGHT CHECKLIST Charge flight battery. Adjust servos and tranmitter. Install flight battery in aircraft. Perform a radio system range check. Bind aircraft to transmitter Find a safe and open area. Make sure linkage move freely. Plan flight for good conditions.
  • Page 28: Troubleshooting Guide

    BEDIENUNGSANLEITUNG / INSTRUCTION MANUAL VIPER JET V4 TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSES SOLUTION The aircraft does not respond to the The throttle is not at the bottom and or the gas Set the trim to 0 and pull the throttle all the way down. throttle, other functions are given.
  • Page 29 BEDIENUNGSANLEITUNG / INSTRUCTION MANUAL VIPER JET V4 Servo reversed. Transmitter settings are reversed. Adjust the direction on the transmitter accordingly. The motor turns, then it loses power. The slider uses soft Low Voltage Cutoff (LVC). Charge the battery. The weather conditions are too cold. Fly in warmer weather.
