Technical Support and E-Warranty Certificate www.vevor.com/support

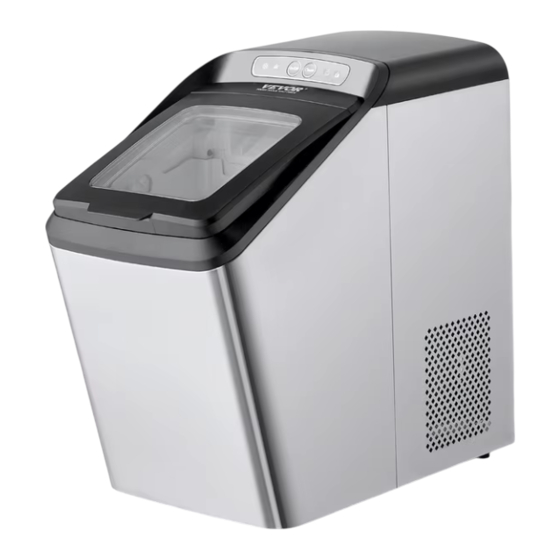

ICE MAKER
INSTRUCTION MANUAL
MODEL: IM1102-UL
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Table of Contents
Related Manuals for VEVOR IM1102-UL
Summary of Contents for VEVOR IM1102-UL
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support ICE MAKER INSTRUCTION MANUAL MODEL: IM1102-UL We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
- Page 3 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
- Page 4 Read this manual thoroughly before using and save it for future reference. IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire, explosion, electric shock, or injury when using your ice maker, follow these important safety instructions: 1.Before using, check that the voltage power corresponds to the one shown on the appliance nameplate.
- Page 5 fire, electric shock or injury. 12.Do not touch the ice-making parts when using the ice maker or making ice to avoid frostbite. 13.Do not immerse any part of the product in water. 14.To disconnect, turn any control to “OFF”, then remove plug from wall outlet. 15.Do not plug or unplug product with wet hands.
-
Page 6: Control Panel
flammable blowing gas and refrigerant. 33.Warning: Never pour colored drinks or porridge-like drinks into the machine. SAVE THESE INSTRUCTIONS HOUSEHOLD USE ONLY KNOW YOUR ICE MAKER (Product may be subject to change without prior notice) CONTROL PANEL - 4 -... - Page 7 Key/Indicator Function Start or stop the appliance. “Clean” key. The “Ice-making” indicator will light solidly when the appliance is making ice. lights solidly The “Clean” indicator will light solidly when the appliance is performing cleaning. lights solidly Water refill indication. The “Ice-making” indicator will light solidly and the “No water”...
-
Page 8: Before First Use
BEFORE FIRST USE 1.Unpack the appliance, then check and make sure that all the accessories , including the ice basket and ice scoop, etc., are complete. Please contact with the client service department if some accessories are missing. 2.Please ensure the ice maker is level and on a stable table or platform to avoid malfunction. - Page 9 5.Replace the ice basket and close the front lid. 6.Press the “ON/OFF” key and the “ ” indicator lights solidly. 7.The ice-making cycle will last approximately 20-30 minutes, depending on the ambient temperature and water temperature. 8.The ice-making assembly is equipped inside of appliance, and the ice-making assembly will keep producing ice when the water is pumped into it.
-
Page 10: Cleaning And Maintenance
12.Open the front lid and transfer the ice to a freezer. 13.Allow the ice maker to reach room temperature. 14.Suggest replacing the water every a week. Please empty the water reservoir if the ice maker is not used for a long time. 15.The ice maker can be connected with external water source by the 1/4PE tube shown in the section of “CLEANING AND MAINTENANCE”... - Page 11 8.Wash the ice basket and ice scoop in warm soapy water. Rinse and dry. 9.Clean the exterior of the ice maker with a soft damp cloth. Use a mild dishwashing soap, if necessary. NOTE: Do not use organic solvent, boiled water, detergent, strong acid and strong alkali etc.
-
Page 12: Troubleshooting
TROUBLESHOOTING Problem Possible causes Solution 1. Stop making ice, refill water 1.Be lack of water. and then press “ON/OFF” key 2.The water screen at to restart ice-making cycle. the bottom of water 2. Remove the water screen reservoir is blocked. at the bottom for cleaning. -
Page 13: Technical Parameters
3. Operate the ice maker at a broken, which lasts 4. The ice-making environment with an ambient for more than 2 system is abnormal. temperature between 10℃ and 32℃. hours. 4. Call customer service. TECHNICAL PARAMETERS Model: IM1102-UL Ice Production: 28 Ibs/day - 11 -... - Page 14 Applicable climate: ST/SN/N Class: I Power source: 120V/60Hz Rated power: 170W Refrigerant/Refrigerant amount: R600a / 20g Foaming agent: C Net weight: 15.5kg Housing: SUS430 Unit size (D×W×H): 448*246*430mm - 12 -...
- Page 16 Technical Support and E-Warranty Certificate www.vevor.com/support...
