Page 1: Table Of Contents
PR 642 /I(BK) UK English Operating Instructions Contents Operating Instructions,1 Warnings,2 Description of the appliance,3 Installation,4 Start-up and use,8 Precautions and tips,8 Maintenance and care,9 Troubleshooting,9 Product Guarantee and Repair Information,11... - Page 2 Warnings WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been...

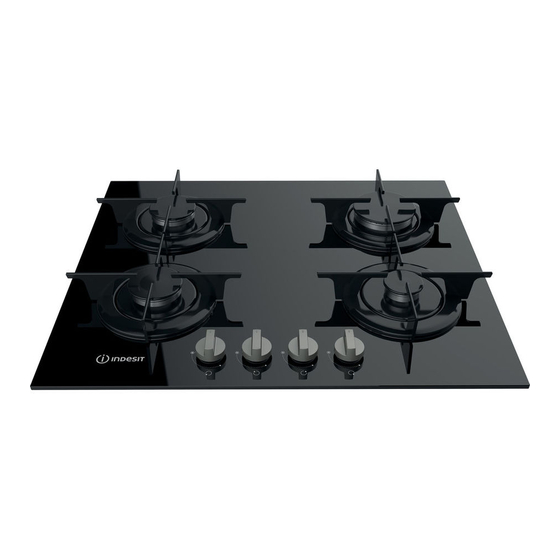

- Page 3 Description of the appliance Overall view 1. Support Grid for COOKWARE 2. GAS BURNERS 3. Control Knobs for GAS BURNERS 4. Ignition for GAS BURNERS 5. SAFETY DEVICES • GAS BURNERS differ in size and power. Use the diameter of the cookware to choose the most appropriate burner to cook with.
- Page 4 Installation Fitting the appliance The following precautions must be taken when installing the hob: • Kitchen cabinets adjacent to the appliance and taller than the top of the ! Before operating your new appliance please read this instruction booklet hob must be at least 200 mm from the edge of the hob. carefully.
- Page 5 • Where the hob is not installed over a built-in oven, a wooden panel must Connect the Blue wire to the terminal marked “N” or coloured Black or Blue. be installed as insulation. This must be placed at a minimum distance of FAILURE TO OBSERVE THE ACCIDENT-PREVENTION REGULATIONS 20 mm from the lower part of the hob.
- Page 6 • Setting the burners to minimum 1. Turn the tap to the low flame position; 2. Remove the knob and adjust the adjustment screw, which is positioned in or next to the tap pin, until the flame is small but steady. 3.
- Page 7 Burner and nozzle specifications Table 1 Liquid Gas Natural Gas Burner Diameter Thermal Power By-pass Nozzle Flow* Nozzle Flow* (mm) kW (p.c.s.*) 1/100 1/100 1/100 (mm) (mm) (mm) Nomin. Reduc. 0.70 116(Y) Rapid (R) 3.00 Semi Rapid (S) 1.65 0.40 96(Z) 0.40 79(6)
-
Page 8: Start-Up And Use,8
Start-up and use Precautions and tips ! The position of the corresponding gas burner is shown on every knob. ! This appliance has been designed and manufactured in compliance with international safety standards. The following warnings are provided for safety Gas burners reasons and must be read carefully. -
Page 9: Maintenance And Care,9
Troubleshooting Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. It may happen that the appliance does not function properly or at all. Before Respecting and conserving the environment calling the service centre for assistance, check if anything can be done. First, •... - Page 10 NOTICE PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24...
-
Page 11: Product Guarantee And Repair Information,11
Product Guarantee and Repair Information Guarantee Recycling and Disposal Information 12 Months Parts and Labour Guarantee As part of Hotpoint’s continued commitment to helping the environment, Hotpoint reserves the right to use quality, recycled components to keep down Your appliance has benefit of our manufacturer’s guarantee, which covers customer costs and minimise material wastage. - Page 12 195145853.00 05/2016 - XEROX FABRIANO Indesit Company S.p.A. Viale Aristide Merloni,47 60044 Fabriano (AN) www.indesit.com.uk PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24...
