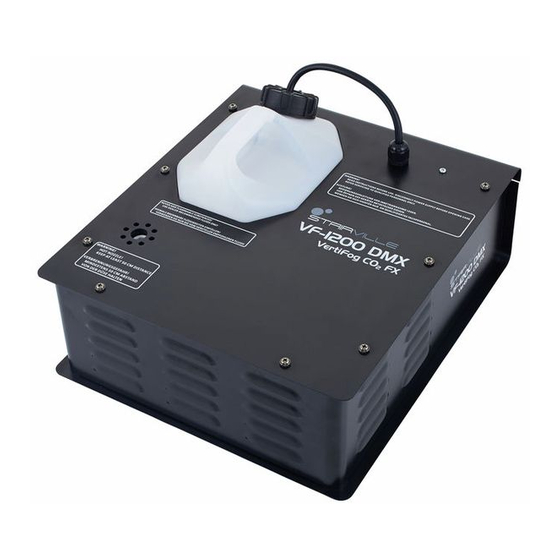

thomann STAIRVILLE VF-1200 DMX VertiFog CO2 FX User Manual

Hide thumbs Also See for STAIRVILLE VF-1200 DMX VertiFog CO2 FX:
Table of Contents

Advertisement

Quick Links

Download this manual
VF-1200 DMX
VertiFog CO2 FX
fog machine
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAIRVILLE VF-1200 DMX VertiFog CO2 FX and is the answer not in the manual?

Questions and answers

Related Manuals for thomann STAIRVILLE VF-1200 DMX VertiFog CO2 FX

Summary of Contents for thomann STAIRVILLE VF-1200 DMX VertiFog CO2 FX

  • Page 1 VF-1200 DMX VertiFog CO2 FX fog machine user manual...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 15.01.2020, ID: 362289 (V5)

  • Page 3: Table Of Contents

    Table of contents Table of contents General information..........................5 1.1 Further information........................... 6 1.2 Notational conventions........................7 1.3 Symbols and signal words....................... 7 Safety instructions..........................10 Features............................... 19 Installation..............................20 Starting up..............................21 Connections and operating elements................... 23 Operating..............................29 7.1 Remote control functions......................
  • Page 4 Table of contents Cleaning............................... 39 Protecting the environment......................41 fog machine...

  • Page 5: General Information

    Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. VF-1200 DMX VertiFog CO2 FX...

  • Page 6: Further Information

    General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly.

  • Page 7: Notational Conventions

    General information 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual.
  • Page 8 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
  • Page 9 General information Warning signs Type of danger Warning – flammable substances. Warning – hot surface. Warning - slip hazard. Warning – harmful or irritating substances. Warning – danger zone. VF-1200 DMX VertiFog CO2 FX...

  • Page 10: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended to be used to produce artificial fog by vaporising fog fluid. Use the device only as described in this user manual. Any other use or use under other operating con‐ ditions is considered to be improper and may result in personal injury or property damage.
  • Page 11 Safety instructions DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device if covers, protectors or optical components are missing or damaged.
  • Page 12 Safety instructions WARNING! Risk of burns from flammable liquids The use of flammable liquids in this device may cause severe burns and damage to property. Always use approved fog fluids. Never fill flammable liquids into the tank of the device. WARNING! Risk of burns The generated fog at the fog nozzle is hot and can cause burns.
  • Page 13 Safety instructions WARNING! Risk of slipping caused by condensate Fog machines can produce condensate. Do not direct the fog to floors. Floors and surfaces can become slippery by condensed fog. Check regularly that all floors can be accessed without slipping hazard and remove any condensate, if necessary.
  • Page 14 Safety instructions CAUTION! Possible respiratory problems The device can be operated safely only with the approved fog fluid. The use of other fluids can release toxic gases. Claims for damages caused by the use of non- approved fluids shall be excluded. Do not create fog in closed or poorly ventilated areas.
  • Page 15 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specified in the chapter ‘Technical specifications’...
  • Page 16 Safety instructions NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the user.
  • Page 17 Safety instructions NOTICE! Possible staining The plasticiser contained in the rubber feet of this product may possibly react with the coating of your parquet, linoleum, laminate or PVC floor and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the floor, but use felt-pad floor protectors or a carpet.
  • Page 18 Safety instructions During operation, ensure that the visibility in the room does not fall below 2 m so that everyone in the room can still orient themselves safely. The haze or mist generated by the device may trigger smoke alarms. fog machine...

  • Page 19: Features

    Features Features Professional vertical fog machine for producing spectacular fog effects in clubs, bars, discothe‐ ques and on stages. Special features of the device: Control via DMX-512 (one channel) or via the supplied remote control Adjustable fog output volume and intervals Suitable for mobile use Specially developed pump system for fog output up to five metres VF-1200 DMX VertiFog CO2 FX...

  • Page 20: Installation

    Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.

  • Page 21: Starting Up

    Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi‐ nary microphone cables.
  • Page 22 Starting up Connections in DMX mode Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device. Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain.

  • Page 23: Connections And Operating Elements

    Connections and operating elements Connections and operating elements Top view VF-1200 DMX VertiFog CO2 FX...
  • Page 24 Connections and operating elements 1 Carrying handle 2 Fog fluid container with screw-cap 3 Fog nozzle fog machine...
  • Page 25 Connections and operating elements Connections VF-1200 DMX VertiFog CO2 FX...
  • Page 26 Connections and operating elements 4 [REMOTE CONTROL] Connection for the receiver of the wireless remote control (optionally available, item no. 464052) 5 [ON | OFF] Main switch to turn the device on and off. 6 [POWER | FUSE] Plug for mains cable with fuse holder 7 DIP switch for setting the DMX address 8 [WIRE CONTROL] Connection for the wired remote control...
  • Page 27 Connections and operating elements Remote control VF-1200 DMX VertiFog CO2 FX...
  • Page 28 Connections and operating elements 11 [TIMER] With this button, you can turn the Timer function on or off. In this mode, the set amount of haze / air is output in certain intervals. The corresponding LED lights while the function is enabled. 12 [CONT] Press this button to turn continuous operation on or off.

  • Page 29: Operating

    Possible damages caused by unsuitable fog fluid Fog liquids not approved by the manufacturer may permanently damage the unit. Only use the fog fluids listed on www.thomann.de and follow their instructions for use. First, make sure the unit is switched off.
  • Page 30 Operating Turning the unit on NOTICE! Fire hazard Do not operate the machine unattended. Connect the device to the mains power grid and turn it on with the main switch. As soon as the required operating temperature is reached, the green LED on the control panel Operation Operation with an empty fluid container can lead to overheating and permanent damage of the pump.

  • Page 31: Remote Control Functions

    Operating 7.1 Remote control functions When the device is not controlled by DMX, it supports the following operating modes that can be selected with the remote control: Manual operation with maximum fog Press the pushbutton [MANUAL]. This mode takes precedence over all others. This means that you don't have to stop the timer function and continuous operation before you press the button.

  • Page 32: Operating Mode 'Dmx

    Operating 7.2 Operating mode ‘DMX’ Setting the DMX address Use the DIP switches of the device to set the desired DMX address between 1 and 512 (see the following figure). fog machine...
  • Page 33 Operating DMX channel assignment Channe Value Function 0 … 255 No fog output to maximum fog output VF-1200 DMX VertiFog CO2 FX...

  • Page 34: Technical Specifications

    Technical specifications Technical specifications Approved fog fluids Stairville FAST-FOG (item no. 209054) Stairville E-M fluid (item no. 121307) Stairville E fluid (item no. 105454) Stairville E-C fluid (item no. 105455) Stairville E-HD heavy fluid (item no. 105456) Heater power 1,200 W Warm-up time approx.
  • Page 35 Technical specifications Receiver of the wireless remote control DIN socket, 5-pin (optional) Wired remote control XLR chassis socket, 5-pin Output connections DMX control XLR chassis socket, 3-pin Power consumption max. 1,250 W Supply voltage 230 V 50 Hz Fuse 5 mm × 20 mm, 8 A, 250 V, fast-acting Degree of protection IP20 Dimensions (W ×...
  • Page 36 Technical specifications Further information DMX control Blast direction Vertical Timer remote control On/Off remote control Radio remote control Light effect With suspension bracket fog machine...

  • Page 37: Troubleshooting

    Troubleshooting Troubleshooting In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting: VF-1200 DMX VertiFog CO2 FX...
  • Page 38 2. Switch the device off and check the hose that leads into the fluid container for flow. 3. Check if the protective circuit has been reset after tripping, see . If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. fog machine...
  • Page 39 Possible damages caused by unsuitable cleaning agents Cleaners not approved by the manufacturer may permanently damage the unit. Only use the fog machine cleaners listed on www.thomann.de and follow their instructions for use. Clean the appliance after every 30 operating hours, or if it was not in use for a longer period of time.
  • Page 40 Cleaning Change to continuous operation and let the device produce fog for about 20 seconds. Insert the suction hose of the fog machine back into the fog fluid container and let the device again produce fog for about 20 seconds. This will rinse the lines. ð...
  • Page 41 Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 42 Notes fog machine...
