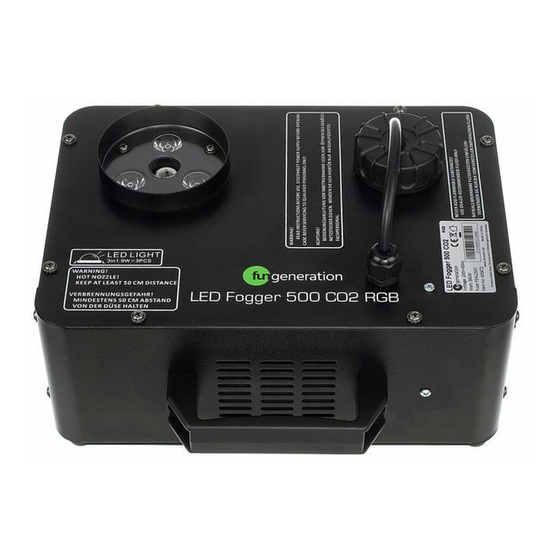

- Page 1 LED-Fogger 500 CO2 RGB Fog Machine...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 11.12.2023, ID: 455672 (V2)
-
Page 3: Table Of Contents
Table of contents Table of contents General information..........................5 1.1 Symbols and signal words....................... 5 Safety instructions............................. 8 Features............................... 13 Installation..............................14 Connections and controls........................15 Operating..............................18 Technical specifications........................21 Troubleshooting............................23 Cleaning............................... 24 Protecting the environment......................26 LED-Fogger 500 CO2 RGB Fog Machine... - Page 4 LED-Fogger 500 CO2 RGB Fog Machine...
-
Page 5: General Information
Our products and documentation are subject to a process of continuous development. They are therefore subject to change. Please refer to the latest version of the documentation, which is ready for download under www.thomann.de. 1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document. - Page 6 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
- Page 7 General information Warning signs Type of danger Warning – hot surface. Warning – dangerous optical radiation. Warning - slip hazard. Warning – harmful or irritating substances. Warning – danger zone. LED-Fogger 500 CO2 RGB Fog Machine...
-
Page 8: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended for generating artificial fog by evaporating the fog fluid with which it is filled, with an additional electronic lighting effect by means of LED technology. The device is designed for professional use and is not suitable for use in households. Use the device only as described in this user manual. - Page 9 Safety instructions Safety DANGER! Risk of injury and choking hazard for children! Children can suffocate on packaging material and small parts. Children can injure themselves when handling the device. Never allow children to play with the packaging material and the device. Always store packaging material out of the reach of babies and small children.
- Page 10 Safety instructions WARNING! Risk of burns on the hot fog nozzle! The fog generated on the fog nozzle is hot. Occasionally hot fluid drops may escape from the nozzle. The fog nozzle may be hot for several hours after switching off the device. Skin contact with hot fog and drops of hot liquid can lead to burns. Ensure a minimum distance of 50 cm to persons and objects during operation.
- Page 11 Safety instructions CAUTION! Possible respiratory problems due to fog fluid! Fog fluid can lead to respiratory problems in case of prolonged exposure and in certain people. Using unsuitable fluids can generate toxic gases. Do not use any fog fluids other than the ones approved for the device. Any claims for compensation for damages caused by using non-approved fluids are excluded.
- Page 12 Safety instructions NOTICE! Risk of fire due to installation of a wrong fuse! Using fuses of a different type than compatible with the device may cause a fire and seriously damage the device. Only use fuses of the same type. Observe the labelling on the device casing and the information in the "Technical data” chapter. General information about how The device was designed for use in professional event technology and works reliably when to safely operate fog machines...
-
Page 13: Features
Features Features This vertical fog machine with LED effect ring is suitable for use in clubs, bars, night clubs and on stages. The built-in LEDs are mounted around the fog outlet and enlighten the fog column in bold colours. Special features of the device: Vertical fog column of approx. -
Page 14: Installation
Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. -
Page 15: Connections And Controls
Connections and controls Connections and controls Rear panel & ö LED-Fogger 500 CO2 RGB Fog Machine... - Page 16 Connections and controls 1 [POWER] | Rubber panel plug for the power supply with fuse holder 2 Carrying handle 3 [ON | OFF] | Main switch. Turns the device on and off. 4 [STROBE] | Turns the strobe effect on and off. 5 [HEATING]/[READY] | Indicator LED for heating up process and operating status 6 Fog fluid container with screw-cap 7 LED effect ring and fog nozzle for fog output...
- Page 17 Connections and controls Wired remote control 10 [READY]/[ON] | Indicator LEDs [READY] lights up: The device is fully heated and ready for use. [ON] lights up: The trigger button on the remote is activated. 11 [1] … [8] | Activates a colour combination and simultaneously triggers a fog blast. READY ON [1] | Red [2] | Green...
-
Page 18: Operating
Damage to the device due to the use of unsuitable fog fluids! Fog fluids not approved by the manufacturer may permanently damage the unit. Only use the fog fluids listed on www.thomann.de and follow their instructions for use. First, make sure that the device is disconnected from the mains. - Page 19 Operating Switching on the device NOTICE! Risk of undetected fires in the absence of supervision! There is a general risk of fire when operating the device. If the appliance is left unattended, fires can go undetected and cause great damage. Never operate the device unattended.
- Page 20 Operating Decommissioning the device Switch off the device using the main switch. Do not transport the device before it has cooled down completely. To avoid leaking fog fluid during transport, you should transport the device only with an empty fluid container. LED-Fogger 500 CO2 RGB Fog Machine...
-
Page 21: Technical Specifications
Technical specifications Technical specifications Heater power 550 W Warm-up time approx. 3 min Fluid container capacity 800 ml Fluid consumption 27 ml/min Fog blast duration, max. approx. 9 s Charging time between fog blasts approx. 43 s Fog blast reach Input connections Power supply C14 rubber panel plug... - Page 22 Technical specifications Weight 3.3 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20%…80% (non-condensing) Further information Approved fog fluids Stairville Fast Fog Fluid (item no. 209054) Stairville E-M Fluid (item no. 121307) Stairville E Fluid (item no. 105454) DMX control Blast direction Vertical...
-
Page 23: Troubleshooting
No response to the wired remote control Check if the remote control is connected correctly. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. LED-Fogger 500 CO2 RGB Fog Machine... -
Page 24: Cleaning
Possible damages caused by unsuitable cleaning agents Cleaners not approved by the manufacturer may permanently damage the unit. Only use the fog machine cleaners listed on www.thomann.de and follow their instructions for use. Clean the appliance after every 30 operating hours, or if it was not in use for a longer period of time. - Page 25 Cleaning Fan grids The fan grids of the device must be cleaned of any contamination, such as dust, etc. on a reg‐ ular basis. Before cleaning, switch off the device and disconnect mains-operated devices from the mains. Only use pH-neutral, solvent-free and non-abrasive cleaning agents. Clean the unit with a slightly damp lint-free cloth.
-
Page 26: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packing material Environmentally friendly materials have been chosen for the packaging. These materials can be sent for normal recycling. Ensure that plastic bags, packaging, etc. are disposed of in the proper manner. Do not dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 27 Repairing a device or passing it on to another user is an ecologically valuable alternative to disposal. You can return your old device to Thomann GmbH at no charge. Check the current conditions on www.thomann.de. If your old device contains personal data, delete those data before disposing of it.
- Page 28 Notes LED-Fogger 500 CO2 RGB Fog Machine...
- Page 29 Notes LED-Fogger 500 CO2 RGB Fog Machine...
- Page 30 Notes LED-Fogger 500 CO2 RGB Fog Machine...
- Page 32 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
