Hz-200 DMX
hazer
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Stairville Hz-200 DMX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for thomann Stairville Hz-200 DMX

Summary of Contents for thomann Stairville Hz-200 DMX

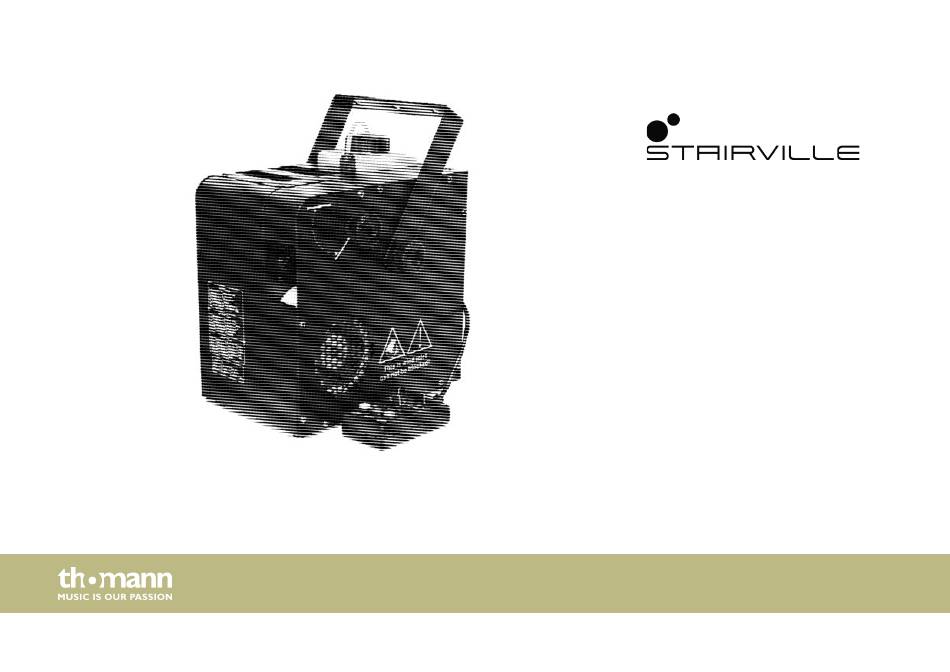

  • Page 1 Hz-200 DMX hazer user manual...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 22.01.2021, ID: 326263 (V6)

  • Page 3: Table Of Contents

    Table of contents Table of contents General information..........................5 1.1 Further information........................... 6 1.2 Notational conventions........................7 1.3 Symbols and signal words....................... 7 Safety instructions..........................10 Features............................... 19 Installation..............................20 Starting up..............................21 Connections and operating elements................... 23 Operating..............................28 7.1 DIP switch operation........................
  • Page 4 Table of contents Plug and connection assignments....................36 Troubleshooting............................37 Cleaning............................... 39 Protecting the environment......................41 hazer...

  • Page 5: General Information

    Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. Hz-200 DMX...

  • Page 6: Further Information

    General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly.

  • Page 7: Notational Conventions

    General information 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. Cross-references References to other locations in this manual are identified by an arrow and the specified page number.
  • Page 8 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
  • Page 9 General information Warning signs Type of danger Warning – flammable substances. Warning - slip hazard. Warning – harmful or irritating substances. Warning – danger zone. Hz-200 DMX...

  • Page 10: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended to be used to produce fine haze by vaporising hazer fluid. Use the device only as described in this user manual. Any other use or use under other operating con‐ ditions is considered to be improper and may result in personal injury or property damage.
  • Page 11 Safety instructions DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device if covers, protectors or optical components are missing or damaged.
  • Page 12 Safety instructions WARNING! Risk of burns from flammable liquids The use of flammable liquids in this appliance can cause serious burns and prop‐ erty damages. Use only approved hazer fluids. Never fill flammable liquids into the container of the device. WARNING! Risk of slipping caused by condensate Hazer can produce condensate.
  • Page 13 Safety instructions WARNING! Health hazard when handling hazer fluid Hazer fluid contains glycols, which meet the requirements for food products. Nev‐ ertheless, fluid is harmful if swallowed. Do not induce vomiting. Get immediate medical attention. Keep hazer fluid in a safe place.
  • Page 14 Safety instructions NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. hazer...
  • Page 15 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specified in the chapter ‘Technical specifications’...
  • Page 16 Safety instructions NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the user.
  • Page 17 Safety instructions NOTICE! Possible staining The plasticiser contained in the rubber feet of this product may possibly react with the coating of your parquet, linoleum, laminate or PVC floor and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the floor, but use felt-pad floor protectors or a carpet.
  • Page 18 Safety instructions During operation, ensure that the visibility in the room does not fall below 2 m so that everyone in the room can still orient themselves safely. The haze or mist generated by the device may trigger smoke alarms. hazer...

  • Page 19: Features

    Features Features This hazer is suitable to be used in clubs, bars, discotheques and on stages. Special features of the device: Control via DMX, integrated DIP switches or via the supplied remote control Suitable for mobile use due to compact design Hz-200 DMX...

  • Page 20: Installation

    Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.

  • Page 21: Starting Up

    Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi‐ nary microphone cables.
  • Page 22 Starting up Connections in DMX mode Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device. Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain.

  • Page 23: Connections And Operating Elements

    Connections and operating elements Connections and operating elements Front and rear side Hz-200 DMX...
  • Page 24 Connections and operating elements 1 Main switch to turn the device on and off. 2 IEC chassis plug with fuse holder for the power supply 3 Connection for the supplied remote control 4 [DMX IN | OUT] DMX in and output 5 Locking screws for the mounting bracket 6 Locking screw for adjusting and fixing the exhaust port.
  • Page 25 Connections and operating elements 12 Liquid level indicator. 13 Haze / air nozzle Hz-200 DMX...
  • Page 26 Connections and operating elements Remote control 14 [TIMER] With this button, you can turn the Timer function on or off. In this mode, the set amount of haze / air is output in certain intervals. The corresponding LED lights while the function is enabled. 15 [CONT] Press this button to turn continuous operation on or off.
  • Page 27 Connections and operating elements 18 [INTERVAL] Rotary control to set the interval between two haze blasts. 19 [WIND SET] Rotary control to set the amount of air to be output. Hz-200 DMX...

  • Page 28: Operating

    Possible damages caused by unsuitable hazer fluid Hazer fluids not approved by the manufacturer may permanently damage the unit. Only use the hazer fluids listed on www.thomann.de and follow their instructions for use. First, make sure the unit is disconnected from the mains.
  • Page 29 Operating Turning the unit on NOTICE! Fire hazard Do not operate the machine unattended. Connect the device to the mains and switch the device on with the main switch. The appliance heats up, the red LED on the rear panel lights up. As soon as the required operating temperature is reached, the red LED on the rear panel goes out.

  • Page 30: Dip Switch Operation

    Operating 7.1 DIP switch operation If you want to control the device only via the DIP switches on the rear panel, first set the switches 1 to 9 to [OFF] and switch 10 to [ON]. The unit then operates continuously and does not respond to DMX commands nor the remote control.

  • Page 31: Remote Control Operation

    Operating Function 75 % air output 100 % air output 0: DIP switch is in ‘OFF’ position. 1: DIP switch is in ‘ON’ position. 7.2 Remote control operation If you want to control the device via remote control, set the switches 1 to 10 to [OFF] Set the amount of haze or air as well as the interval between two pulses using the rotary con‐...

  • Page 32: Operating Mode 'Dmx

    Operating 7.3 Operating mode ‘DMX’ Setting up the DMX address The value of the DIP switches 1-9 is binary coded. To set the desired DMX address, set the DIP switches so that the sum of the resulting numbers yields the desired DMX address. Please orient yourself by the following table: DMX address hazer...
  • Page 33 Operating DMX address 0: DIP switch is in ‘OFF’ position. 1: DIP switch is in ‘ON’ position. Example: To set the DMX address 10 set DIP switches 2 and 4 to ‘ON’, all others to ‘OFF’. The highest possible DMX address is 511 (all DIP switches to ‘ON’). DIP switch 10 has no function in this mode.

  • Page 34: Technical Specifications

    Technical specifications Technical specifications Heater power 615 W Warm-up time approx. 1.5 min Fluid container capacity 1.2 l Haze burst approx. 34 m /min Haze burst duration, max. continuously Charging time between haze bursts continuously Haze burst reach Input connections Power supply IEC chassis plug C14 DMX control...
  • Page 35 Technical specifications Supply voltage 230 V 50 Hz Fuse 5 mm × 20 mm, 4 A, 250 V, fast-acting Degree of protection IP20 Height of housing / incl. filling port / 280 mm / 330 mm / 380 mm (11.02 in. / 12.99 in. / 14.96 in.) incl.

  • Page 36: Plug And Connection Assignments

    Plug and connection assignments Plug and connection assignments Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment so that a perfect light experience is guaranteed. Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or ‘just’...

  • Page 37: Troubleshooting

    Troubleshooting Troubleshooting In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting: Symptom Remedy The unit does not work Check the mains connection and the main fuse. No haze output 1.
  • Page 38 Troubleshooting If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. hazer...

  • Page 39: Cleaning

    Possible damages caused by unsuitable cleaning agents Cleaners not approved by the manufacturer may permanently damage the unit. Only use the fog machine cleaners listed on www.thomann.de and follow their instructions for use. Clean the appliance after every 30 operating hours, or if it was not in use for a longer period of time.
  • Page 40 Cleaning As soon as the required operating temperature is reached, the red LED on the rear panel goes out. The device is now operational. Let the device produce haze with maximum output volume for about 20 seconds. Insert the suction hose of the haze machine back into the fog fluid container and let the device again produce haze for about 20 seconds.

  • Page 41: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 42 Notes hazer...
  • Page 44 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
