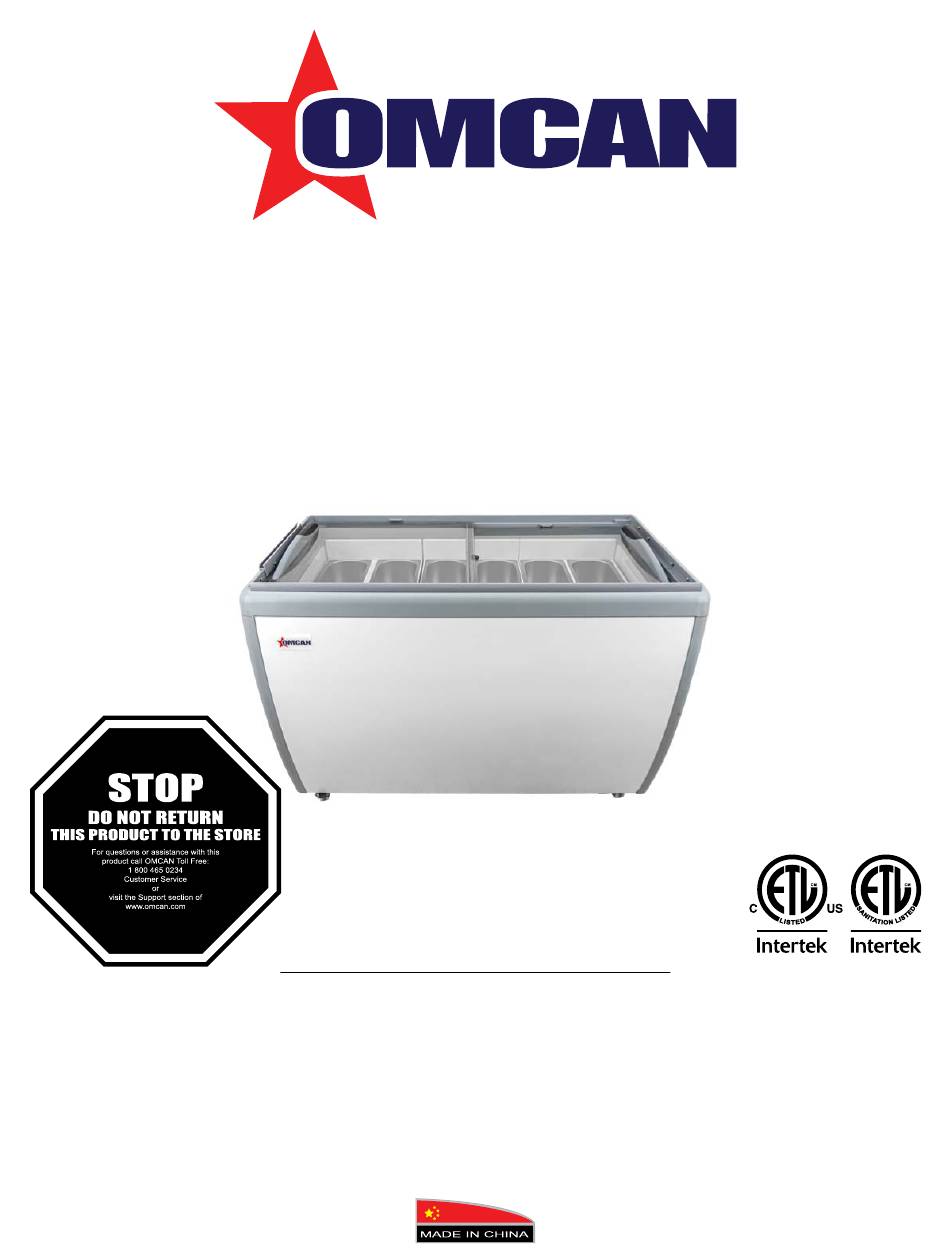

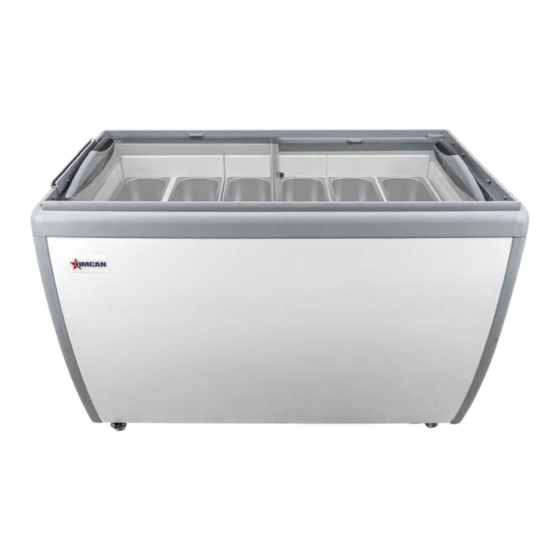

- Page 1 Refrigerated Showcases Models FR-CN-0005, 0009, 0014 Items 47742, 47743, 47744 Instruction Manual Revised - 09/08/2023 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model FR-CN-0005 / Model FR-CN-0009 / Model FR-CN-0014 Section Page Disclaimer -------------------------------------------------------------------------------------------- 3 General Information --------------------------------------------------------------------------- 4 - 5 Safety and Warranty --------------------------------------------------------------------------- 5 - 6 Technical Specifications -------------------------------------------------------------------------- 7 Installation -------------------------------------------------------------------------------------------- 8 Operation --------------------------------------------------------------------------------------------- 8 Maintenance... -
Page 3: Disclaimer
Disclaimer OMCan IS nOT ReSpOnSIble fOR any DaMageS Due TO waTeR leakS. waRRanTy fOR waTeR leakS IS vOID If The aMbIenT ROOM TeMpeRaTuRe exCeeDS 75°f anD 55% RelaTIve huMIDITy, anD The applIanCe DRaIn IS nOT COnneCTeD DIReCTly TO a flOOR DRaIn. -
Page 4: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 5: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 6 Safety and warranty Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use. Please see https://omcan.com/disclaimer for complete info.
-
Page 7: Technical Specifications
Technical Specifications Model FR-CN-0005 FR-CN-0009 FR-CN-0014 Capacity 120 L / 4.2 cu.ft. 290 L / 10.2 cu.ft. 450 L / 15.9 cu.ft. Maximum Load 264.6 lbs. / 120 kgs. 639.3 lbs. / 290 kgs. 992.1 lbs. / 450 kgs. Temperature Range -26 to 0°C / -15 to 32°F... -
Page 8: Installation
Installation TRANSPORTATION AND PLACEMENT • When transporting the chest freezer from one place to another, the inclination of the cabinet should not exceed 45 degrees, for prevention against compressor or system damage. • Before use, remove all the packing material. The back side of the cabinet should be more than 20cm / 7.87”... -
Page 9: Maintenance
Maintenance • The freezer should be cleaned regularly. When cleaning, turn off the power, take out the foods in the cabinet, clean the inside using water or a little neutral detergent. • Do not use boiling water, acid, chemical diluters, petrol and oil, or dirt-removing powder. •... - Page 10 Troubleshooting The compressor works normally, The door is being opened too Reduce open times. but the temperature in the cabinet frequently. cools too slowly. The is too much food in the Place food properly, keep space cabinet, and it is placed improperly. between them for ventilation of cold air.
-
Page 11: Parts Breakdown
Model fR-Cn-0005 47742... - Page 12 Model fR-Cn-0005 47742 Item No. Description Position Item No. Description Position Item No. Description Position AN902 Upper Glass Door Assembly for 47742 AN917 Lamp Switch for 47742 AN931 ST 4.8x13 Self Tapping Screw for 47742 AN903 Key and Lock for 47742...
- Page 13 parts breakdown Model fR-Cn-0009 47743...
- Page 14 parts breakdown Model fR-Cn-0009 47743 Item No. Description Position Item No. Description Position Item No. Description Position AN946 Upper Glass Door Assembly for 47743 AN918 Temperature-Controlled Wiring for 47743 AN932 Compressor Baseboard for 47743 AN903 Key and Lock for 47743 AN919 JIS 4x16 Self Tapping Screw for 47743 AN951...
- Page 15 parts breakdown Model fR-Cn-0014 47744...
- Page 16 parts breakdown Model fR-Cn-0014 47744 Item No. Description Position Item No. Description Position Item No. Description Position AN959 Stainless Steel Screw M5x20 for 47744 AN915 JIS 4x12 Self Tapping Screw for 47744 AN931 ST 4.8x13 Self Tapping Screw for 47744 Electronic Temperature Control Bracket AN960 Tie Bar for 47744...
-
Page 17: Electrical Schematics
Schematics Model fR-Cn-0005 47742... - Page 18 electrical Schematics Model fR-Cn-0009 47743 Model fR-Cn-0014 47744...
-
Page 19: Warranty Registration
Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 20 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
