Summary of Contents for Omcan FP-IT-0006

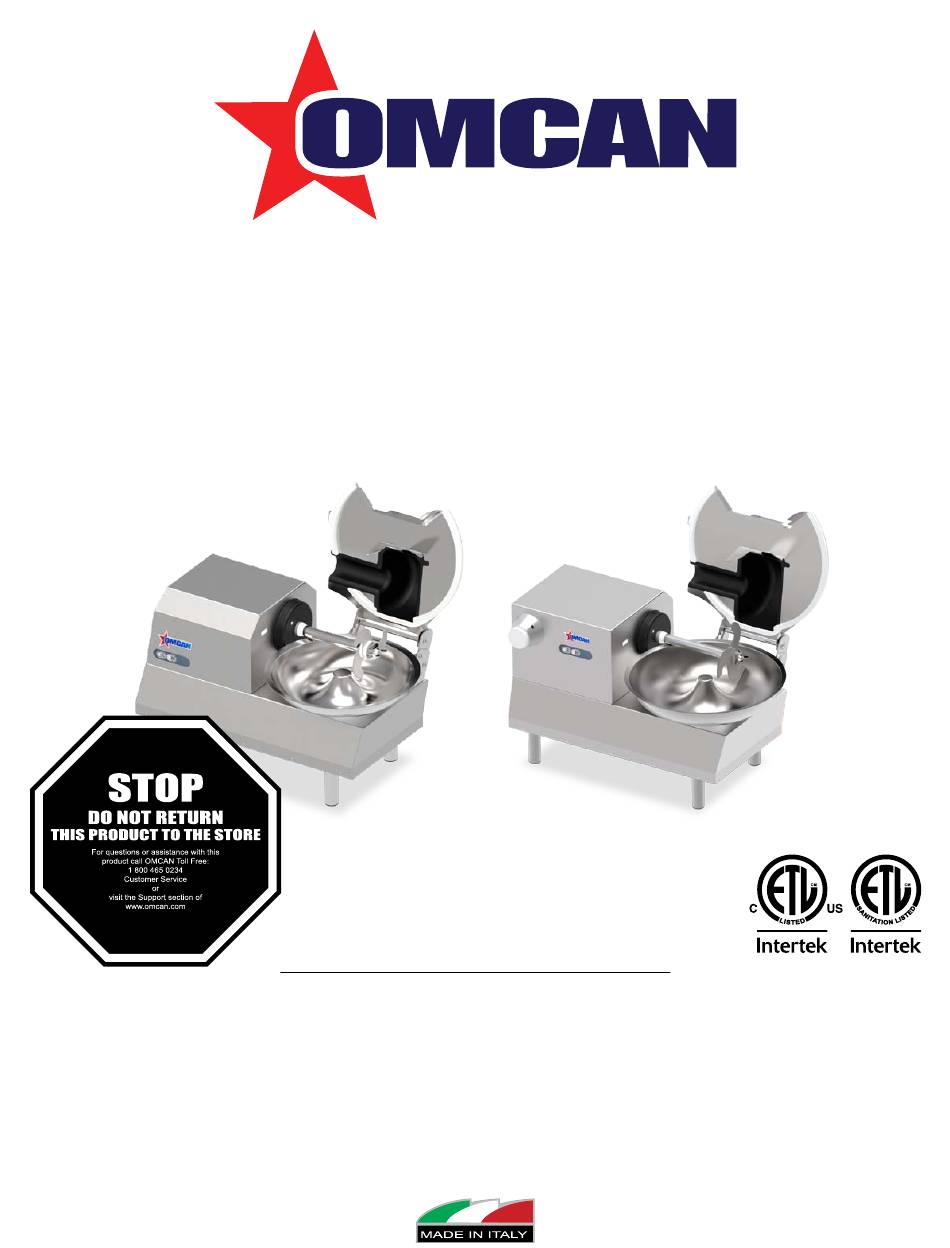

- Page 1 Bowl Cutters Model FP-IT-0006, 0012 Items 47711, 47776 Instruction Manual Revised - 08/10/2023 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model FP-IT-0006 / Model FP-IT-0012 Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 9 Technical Specifications -------------------------------------------------------------------------- 9 Installation -------------------------------------------------------------------------------------- 9 - 11 Operation -------------------------------------------------------------------------------------- 11 - 13 Maintenance --------------------------------------------------------------------------------- 13 - 15... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 5 Safety and Warranty casings removed. Do not use the machine under such conditions, but only if all of the guards are assembled correctly and are working perfectly. The manufacturer prohibits the reproduction, even partial, of this manual, and its contents may not be used for any purpose other than those explicitly authorised by the manufacturer. Any infringement will be prosecuted according to law.
- Page 6 Safety and Warranty OPERATIONS FOR EMPTYING THE TANK: • Set the circuit breaker upstream of the machine to “0”. • Turn the release knob on the lid counter-clockwise. • Open the lid. • Turn the lock knob of the blade holder. •...
- Page 7 Safety and Warranty • Do not allow unauthorized personnel to perform operations on the machine. Urgent treatment in case of an accident caused by electric current requires first of all pulling the injured person away from the machine (as the person will have likely lost consciousness). This is a hazardous operation. The injured person in this case is an electric conductor: touch him means getting electrocuted.
- Page 8 1 YEAR PARTS AND LAbOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use.
-
Page 9: Technical Specifications
In any case, for suitable recycling, we suggest disposing of the products separately (differentiated waste) according to the current norms. DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT! Technical Specifications Model FP-IT-0006 FP-IT-0012 Power 1 HP / 750 W 2 HP / 1400 W... -
Page 10: Installation
Installation agreed with the customer, or in the event of particularly expensive transport, the machine is packed on a wooden pallet, protected with cardboard and fastened with straps. The dimensions of the packing are shown in Fig. 3.2.1. Check the integrity of the packing when you receive the machine. If the packing is damaged, sign the transport docket, including the phrase: “Accepted with reservations...”... -
Page 11: Operation
Installation manufacturer (in these cases, the machine is supplied without a mains plug). If you need to stretch the power cable, use a cable of the same section as the one installed by the manufacturer. Operation CONTROLS AND INDICATORS lIST OF COnTrOlS AnD InDICATOrS (FIg. 4.1.1) 1. - Page 12 Operation MACHINE STOP To stop the machine, press button “2” (stops the electric motor). Then, switch the circuit breaker installed upstream of the machine to “0”, thereby disconnecting the cutter. USE OF THE MACHINE PERSONS AUTHORISED TO OPERATE THE MACHINE IMPORTANT! Only authorised staff can intervene on the machine.
-
Page 13: Maintenance
Operation solvents (non-toxic solvents and non-flammable). Adapt the guards to be used when cleaning and disinfecting the machine based on the type of solvent. Follow the instructions of the cleaning products. ASSEMbLING THE TANK To assemble the tank, perform the procedure described in the previous paragraph in reverse order, paying attention to re-assemble the tank in its correct position. - Page 14 Maintenance INTRODUCTION Good maintenance and proper use are essential requirements to ensure the efficiency and safety of the mixer To ensure regular and constant operation and to avoid invalidation of the warranty, machine components must be replaced only with original spare parts. CHECKS CARRIED OUT AT OUR MANUFACTURING PLANT The manufacturer has conducted a number of tests on the machine in your possession, in order to ensure correct commissioning and include the necessary adjustments.
- Page 15 Maintenance checks and inspections (besides those described hitherto) with the frequency listed below. bEFORE EACH WORK SHIFT: • Check the operation of the safety devices - daily. • Check the integrity of the power cable. IMPORTANT! If the machine does not stop when you open the lid or in the event of other malfunctions, request the assistance of customer service.
-
Page 16: Troubleshooting
Troubleshooting Malfunctions Causes Remedies The machine does not start. The circuit breaker is set to “0”. Turn the main switch to “1”. The lid is not locked. Lower the lid and turn the knob counterclockwise. The tank is missing. Assemble the tank, fastening it cor- rectly to the pull mechanism. - Page 17 Figure Drawings...
- Page 18 Figure Drawings...
-
Page 19: Parts Breakdown
Parts Breakdown Model FP-IT-0006 47711... - Page 20 Parts Breakdown Model FP-IT-0006 47711...
- Page 21 Parts Breakdown Model FP-IT-0006 47711...
- Page 22 Parts Breakdown Model FP-IT-0006 47711 Item No. Description Position Item No. Description Position Item No. Description Position Pipe+Key+Gallet Kit. M12 Cut.Ind for Cover Prot.Termico Monof UL CSA for Cut.Ind. Thermometer Hole Cap for AN426 AM949 AN466 47711 47711 47711 Protettore Termic. Monof 10A UL CSA AN427 Colt.
- Page 23 Parts Breakdown Model FP-IT-0006 47711 Item No. Description Position Item No. Description Position Item No. Description Position AN491 Reducing Shaft Cut.Ind. for 47711 AN504 Retaining Rings DIN 471 D 30E for 47711 62663 X.Screw Din 933 M8x20 for 47711 Washer Notch. Din 6798-A D 6E for AN492 Drive Shaft Tank Cut.Ind.
- Page 24 Parts Breakdown Model FP-IT-0012 47776...
- Page 25 Parts Breakdown Model FP-IT-0012 47776...
- Page 26 Parts Breakdown Model FP-IT-0012 47776...
- Page 27 Parts Breakdown Model FP-IT-0012 47776...
- Page 28 Parts Breakdown Model FP-IT-0012 47776 Item No. Description Position Item No. Description Position Item No. Description Position Pipe+Key+Gallet Kit. M12 Cut.Ind for Stainless Steel Button MSM-19 UL Cut Black PVC Shell for Shaft Colt. Cut.Ind AN522 AN355 AN463 47776 Ind for 47776 for 47776 Cover Prot.Termico Monof UL CSA for Hole Cover Cap D.19 No CE Buttons...
- Page 29 Parts Breakdown Model FP-IT-0012 47776 Item No. Description Position Item No. Description Position Item No. Description Position AN545 Supp. Satin Cover Cut.Ind. for 47776 61583 Nut Din 1587 M6 for 47776 62663 X.Screw Din 933 M8x20 for 47776 AN497 Support Plate Cover Cut.Ind. for 47776 62652 Nut ES.
-
Page 30: Electrical Schematics
Electrical Schematics Model FP-IT-0006 47711 Model FP-IT-0012 47776... -
Page 31: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 32 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
