• Please refer to the Setup Guide for basic information ranging from connection of the monitor to a PC or external device to using the monitor. • The latest User’s Manual is available for download from our Web site: http://www.eizo.com...
Page 2
No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, or otherwise, without the prior written permission of EIZO Corporation. EIZO Corporation is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to EIZO Corporation’s receipt of said information.
Notice for this monitor This product is suited to clinical review. It does not support the display of mammography images for diagnosis. This product has been adjusted specifically for use in the region to which it was originally shipped. If the product is used outside the region, it may not operate as specified in the specifications.
Page 4
Cleaning Attention • Chemicals such as alcohol and antiseptic solution may cause gloss variation, tarnishing, and fading of the cabinet or panel, and also quality deterioration of the image. • Never use any thinner, benzene, wax, and abrasive cleaner, which may damage the cabinet or panel. •...
MenuDisplay..........28 ● Diskcontentsandsoftwareoverview....10 3-4. Locking Buttons .......... 28 ● Tousetouchpaneldriver .......10 3-5. Setting the EIZO Logo Display ....29 ● Touse“EIZOScreenSlicer”......10 3-6. Setting Language ........29 1-4. Basic Operations and Functions ....11 ● 3-7.
Page 6
Appendix .............. 47 Trademark ..............47 FCC Declaration of Conformity ......48 Hinweise zur Auswahl des richtigen Schwenkarms für Ihren Monitor ..... 49 LIMITED WARRANTY ..........50 China Measures for RoHS Compliance in ChinaRoHS ............59 CONTENTS...

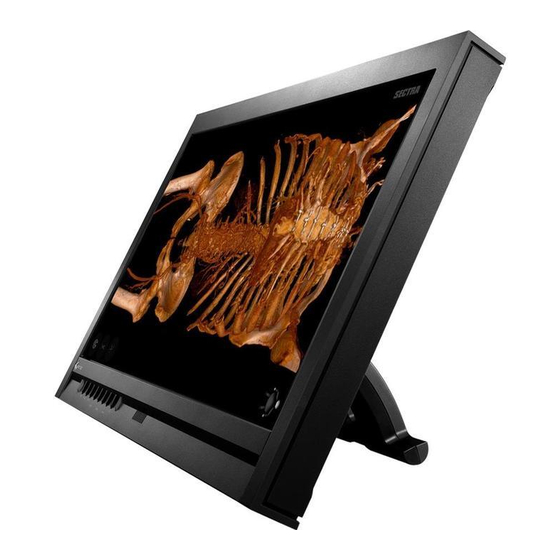

Chapter 1 Introduction Thank you very much for choosing an EIZO color LCD monitor. 1-1. Features • 23″ wide format LCD • Applicable to the resolution of 1920 × 1080. • Standard touch panel - Infrared optical imaging system Supports the Windows Touch function (multi-touch) of Microsoft Windows 7.
● Stand installation This product can be adjusted to angles of 15°, 25°, 35°, 45°, 55°, and 65°. Min.15º Max.65º CAUTION Do not use the stand in its packaged state. Thestandisfoldedwhenitispackagedforshipment.Usingitinthisstatewill makethemonitorunstable,potentiallyresultinginitfallingoverandcausing injuriesorequipmentdamage.Whenusingthestand,unfoldittoatleast15°and setitupcorrectly. ● Folding the stand Perform the following procedure to fold the stand when re-packing the monitor. Lay the LCD monitor on a soft cloth spread over on a stable surface with the panel surface facing down.
1-3. EIZO LCD Utility Disk An “EIZO LCD Utility Disk” (CD-ROM) is supplied with this product. The following table shows the disk contents and the overview of the software programs. ● Disk contents and software overview The disk includes adjustment software, touch panel software, and user’s manuals. Refer to Readme.txt file on the disk for software startup procedures or file access procedures.
1-4. Basic Operations and Functions ● Basic Adjustment menu operations Displaying Adjustment Menu 1. Press . The adjustment menu appears. Adjusting/Setting 1. Choose a menu to adjust/set with , , , , and then press . The Sub menu appears. 2.
Chapter 2 Adjusting Screens 2-1. Compatible Resolutions/Formats The monitor supports the following resolutions and signal format. ● Analog Input (D-Sub) Vertical Scan Resolution Applicable Signals Dot Clock Frequency 640×480 VGA,VESA,CEA-861 upto75Hz 720×400 VGATEXT 70Hz 800×600 VESA upto75Hz 1024×768 VESA upto75Hz 148.5MHz 1280×720 CEA-861...
2-2. Setting the Resolution When you connect the monitor to the PC and find that the resolution is improper, or when you want to change the resolution, follow the procedure below. ● Windows 7 1. Right-click the mouse anywhere on the desktop except for icons. 2.
2-3. Displaying Screen Correctly ● Digital Signal Input When digital signals are input, images are displayed correctly based on the preset data of the monitor, but if characters and/or lines appear blurred, go to “6. Modify blurred characters or lines.” (page 18).
Page 16
Prepare to use analog screen adjustment patterns. Load the “EIZO LCD Utility Disk” to your PC, and then open the “Screen adjustment pattern files”. Note • For details and instructions on opening the “Screen adjustment pattern files”, refer to the Readme.txt file.
Page 17
● To remove flickering or blurring Procedure 1. Choose <Phase> from the <Screen> menu, and press The <Phase> menu appears. 2. Adjust the phase with to minimize flickering or blurring. 3. Press to exit the adjustment. When vertical bars appear on the screen after adjustment, go back to “To eliminate vertical bars <Clock>”. (Clock →...
Page 18
Adjusting color gradation. ● To adjust color gradation automatically Every color gradation (0 to 255) can be displayed by adjusting the signal output level. Procedure 1. Display Pattern 2 in full screen on the monitor using the “Screen adjustment pattern files”. 2.
2-4. Adjusting Color ● To select the display mode (CAL Switch mode) This function allows easy selection of a desired mode according to monitor application. Display Modes Mode Purpose User1 Selectoneoftheseusermodestodefineadesiredsetofparametersettings. User2 sRGB SuitableforcolormatchingwithsRGBcompatibleperipherals. Paper Producesaprintedpapereffectbydecreasingcontrastandcolortemperature. DICOM AvailabletodisplayinDICOMmode. Displaysthecurrentmode. Procedure 1.
● Adjustable settings in each mode The adjustable settings depend on the mode. (You cannot select any non-adjustable or non-settable function.) √: Adjustable -: Not adjustable CAL Switch mode Icon Function User1 sRGB Paper DICOM User2 Brightness √ √ √ BlackLevel √...
● To adjust black level You can adjust the black level of images. Adjustable range -50 to 50 Procedure 1. Choose <Color> from the Adjustment menu, and press 2. Choose <Black Level> from the <Color> menu, and press The <Black Level> menu appears. 3.
● To adjust color temperature Color temperature can be adjusted. The color temperature is normally used to express the hue of “White” and/or “Black” by a numerical value. The value is expressed in degrees “K” (Kelvin). The screen becomes reddish at a low color temperature, and bluish at a high color temperature, like the flame temperature.
● To adjust the color saturation This function allows you to adjust color saturation. Adjustable range -128 to 127 Procedure 1. Choose <Color> from the Adjustment menu, and press 2. Choose <Saturation> from the <Color> menu, and press The <Saturation> menu appears. 3.
● To adjust gain The brightness of each color component red, green, and blue is called “Gain”. You can change the hue of “white” by adjusting gain. Adjustable range 0 to 100% Procedure 1. Choose <Color> from the Adjustment menu, and press 2.
● To set overdrive intensity This function allows you to set overdrive intensity based on the use of the monitor. You can reduce Image lags by setting it to “Enhanced” when displaying animated images. Adjustable range Enhanced, Standard, Off Procedure 1.
2-5. Changing the Screen Size ● To change screen size If a resolution other than recommended is used, the image displayed in full screen automatically. You can change the screen size by using <Screen Size> from <Others> menu. Setting Function Auto Themonitorautomaticallychangesthescreensizeaccordingtotheaspectratioand...
Chapter 3 Setting Monitor 3-1. Adjusting Volume This function allows you to adjust the volume. Adjustable range 0 to 30 Procedure 1. Press or . The volume adjustment menu appears. 2. Use for adjustment. 3. Press to exit the adjustment. Note •...
● Changing Adjustment Menu Display Position You can change the display position of the Adjustment menu. Procedure 1. Choose <Others> from the Adjustment menu, and press 2. Choose <Menu Settings> from the <Others> menu, and press 3. Choose <Menu Position> from the <Menu Settings> menu, and press The <Menu Position>...
3-5. Setting the EIZO Logo Display When the monitor is turned on, the EIZO logo appears on the screen. You can choose to display or not to display the EIZO logo. Procedure 1. Press to turn off the monitor. 2. Press holding down to turn on the monitor.
3-8. Resetting the Monitor to the Default Settings There are two different Resets: Color Reset for only resetting the color adjustments to the default settings and Full Reset for resetting all settings to the defaults. Attention • After resetting, you cannot undo the operation. Note •...
Chapter 4 Power Saving Functions 4-1. Setting Power Saving ● Monitor This function allows you to specify whether to set the monitor into the power saving mode, depending on the state of an external device connected to it. When the monitor has shifted to the power saving mode, the images on the screen are not displayed.
When the external device connected is not a PC Power Ext. Device Monitor Indicator PowerOn Operating Blue PowerOff Powersavingmode Orange Exiting the power saving mode If the monitor receives input, it automatically exits the power saving mode and returns to the normal display mode.
4-3. Enabling/Disabling Automatic Brightness Adjustment The sensor on the front side of the monitor detects the environmental brightness to adjust the screen brightness automatically and comfortably by using the Auto EcoView function. Attention • The Auto EcoView function cannot be used in the DICOM mode. •...
Chapter 5 Connecting Cables 5-1. Connecting Multiple External Devices The product has multiple connections to external devices and allows you to switch to one of the connections for display. Attention • It is assumed the touch panel monitor will be used with one computer. When the monitor is to be connected to multiple computers, connect a USB cable (MD-C93) to the computer used for touch operation (one unit only).
● To switch among input signals The input signal switches each time is pressed. When the signal is switched, the active input port name appears at the top right corner of the screen. Chapter5ConnectingCables...
Chapter 6 Troubleshooting If a problem still remains after applying the suggested remedies, contact your local dealer. 6-1. No picture Problem Possible cause and remedy 1. No picture • Checkwhetherthepowercordisconnectedproperly. • Powerindicatordoesnotlight. • Turnoffthemainpower,andthenturnitonagaina fewminuteslater. • Turnthemainpowerswitchon. • Press . •...
6-2. Imaging problems (for both digital and analog) Problem Possible cause and remedy 1. The screen is too bright or too dark. • Use<Brightness>or<Contrast>intheAdjustment menutoadjustit.(TheLCDmonitorbacklighthasa limitedlifespan.Whenthescreenbecomesdarkor beginstoflicker,contactyourlocaldealer.) • TurnontheAutoEcoViewfunction.Themonitor detectstheenvironmentalbrightnesstoadjustthe screenbrightnessautomatically. 2. Characters are blurred. • CheckwhetherthePCisconfiguredtomeetthe resolutionandverticalscanfrequencyrequirements ofthemonitor(see“2-1.CompatibleResolutions/ Formats”(page13)). •...
6-4. Imaging problems (for analog only) Problem Possible cause and remedy 1. Display position is incorrect. • Use<Position>intheAdjustmentmenutocorrectthe imageposition(see“Tocorrectthescreenposition” (page17)). • Iftheproblempersists,usethegraphicsboard’sutility ifavailabletochangethedisplayposition. 2. Vertical bars appear on the screen or a • Use<Clock>intheAdjustmentmenutoadjustit(see part of the image is flickering. “Toeliminateverticalbars”(page16)).
• For information on the operating conditions of the touch panel driver and how to install or operate them, see the Installation Guide (on the CD-ROM). The latest software and installation guide are available for download from our web site. http://www.eizo.com Chapter6Troubleshooting...
Chapter 7 Reference 7-1. How to Attach the Optional Arm An optional arm (or an optional stand) can be attached by removing the stand section. Attention • When attaching an arm or stand, follow the instructions of their user’s manual. •...
Attach the arm or stand to the monitor. Secure the monitor to the arm or stand using the screws specified in the user’s manual of the arm or stand. 7-2. Displaying Monitor Information This function allows you to display the input signal status, current resolution and model name. Information 1/3: Input signal status, resolution, and horizontal/vertical scan frequencies Information 2/3: DDC/CI Enable/Disable status Information 3/3: Model name, serial number, and usage time...
7-4. Glossary Clock The analog signal input monitor needs to reproduce a clock of the same frequency as the dot clock of the graphics system in use, when the analog signal is converted to a digital signal for image display. This is called clock adjustment.
Page 45
HDCP (High-bandwidth Digital Content Protection) Digital signal coding system developed to copy-protect the digital contents, such as video, music, etc. This helps to transmit the digital contents safely by coding the digital contents sent via the DVI or HDMI connector on the output side and decoding them on the input side. Any digital contents cannot be reproduced if both of the equipments on the output and input sides are not applicable to HDCP system.
Temperature Color temperature is a method to measure the white color tone, generally indicated in degrees Kelvin. The screen becomes reddish at a low temperature, and bluish at a high temperature, like the flame temperature. 5000K: Slightly reddish white 6500K: White referred to as daylight-balanced color 9300K: Slightly bluish white TMDS (Transition Minimized Differential Signaling) TMDS is one of the signal transmission methods for the digital interface.
HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries. EIZO, the EIZO Logo, ColorEdge, DuraVision, FlexScan, FORIS, RadiForce, RadiCS, RadiNET, Raptor, and ScreenManager are registered trademarks of EIZO Corporation in Japan and other countries.
Hinweise zur Auswahl des richtigen Schwenkarms für Ihren Monitor Dieser Monitor ist für Bildschirmarbeitsplätze vorgesehen. Wenn nicht der zum Standardzubehör gehörige Schwenkarm verwendet wird, muss statt dessen ein geeigneter anderer Schwenkarm installiert werden. Bei der Auswahl des Schwenkarms sind die nachstehenden Hinweise zu berücksichtigen: Der Standfuß...
