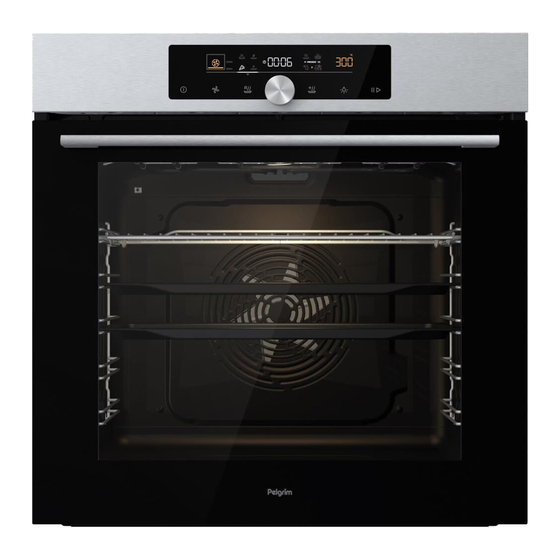

- Page 1 OP560... Instructions for use Oven...
- Page 2 We thank you for your trust and the purchase of our appliance. This detailed instruction manual is supplied to make the use of this product easier. The instructions should allow you to learn about your new appliance as quickly as possible. Make sure you have received an undamaged appliance.
-
Page 3: Table Of Contents
Contents Safety precautions ........................Safe and correct use of the oven during pyrolytic cleaning ............. Other important safety warnings ................... Appliance description ......................Rating plate product information ................... Control unit ..........................Appliance equipment ......................Control lights ..........................Guides ............................Oven door switch ........................Cooling fan .......................... -
Page 4: Safety Precautions
Safety precautions IMPORTANT SAFETY PRECAUTIONS CAREFULLY READ THE INSTRUCTIONS AND SAVE THEM FOR FUTURE REFERENCE. Appliance must be connected to fixed wiring which has incorporated means of disconnection. Fixed wiring must be made in accordance with the wiring rules. Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules. -
Page 5: Safe And Correct Use Of The Oven During Pyrolytic Cleaning
WARNING: The appliance and some of its accessible parts may become very hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. The appliance is not intended to be controlled by external timers or separate remote controll system. -
Page 6: Other Important Safety Warnings
During the automatic cleaning process, the oven heats up to a very high temperature and it is very hot on the outside as well. Risk of burns! Keep children away from the oven. Other important safety warnings The appliance is intended for household use. Do not use it for any other purpose, such as room heating, drying of pets or other animals, paper, fabrics, herbs etc. - Page 7 Pyrolytic cleaning involves very high temperatures that may cause smoke and fumes to be released form food residues. We recommend that you ensure thorough ventilation of the kitchen during the pyrolytic cleaning process. Small animals, or pets, are highly sensitive to any fumes released during pyrolytic cleaning of ovens.
-
Page 8: Appliance Description
Appliance description INFORMATION! Appliance functions and equipment depend on the model. Basic equipment of your appliance includes wire guides, shallow baking tray, and a wire rack. 1. Control unit 5. Guides cooking levels 2. Door lock with a switch 6. Rating plate 3. -
Page 9: Control Unit
Control unit (depending on the model) 1. on I off key 2. (pro bake) professional mode key 3. (auto bake) automatic mode key 4. Settings selection and confirmation knob - rotate the knob to choose a setting - press the knob to confirm the setting 5. -
Page 10: Appliance Equipment
Appliance equipment Control lights Oven light: oven light is switched on when you open or close the oven door, when you switch on the oven, at the end of the baking process, and when you touch the oven light key on the control unit. Guides •... -
Page 11: Oven Door Switch
Click-on pull-out guides (depending on the model) The click-on pull-out guide can be inserted into any space between two wire guides. Place the guide symmetrically onto the wire guides on the left and the right side of the oven cavity. First, hook the upper clip of the guide under the wire of the wire guide. - Page 12 The WIRE RACK is used for grilling/broiling or as support for a pan, baking tray or baking dish with the food you are baking. INFORMATION! There is a safety latch on the wire rack. Therefore, the wire rack has to be lifted slightly at the front when pulling it out from the oven.
-
Page 13: Before First Use
Before first use • Remove oven accessories and any packaging (cardboard, polystyrene foam) from the oven. • Wipe the oven accessories and interior with a damp cloth. Do not use abrasive or aggressive cloths or cleaners. • Heat an empty oven for approximately one hour with the top and bottom heater system at a temperature of 250 °C. -
Page 14: Switching On For The First Time
Switching on for the first time After connecting your appliance or after an extended power outage, 12:00 will flash on the display. First, choose and confirm the following basic settings. INFORMATION! Change them by rotating the KNOB. To confirm the desired setting, press the KNOB or touch key. -
Page 15: Choosing The Settings
Choosing the settings The interface allows choosing several operating modes: • Professional mode (pro bake) • Automatic mode (auto bake) • Extra functions (extra bake) • Step program (STEP) in the professional mode (pro bake) • Automatic programs in automatic mode (auto bake) INFORMATION! •... - Page 16 When the selected temperature is reached, the preheating process stops and an acoustic signal is emitted. door will appear on the display unit. Open the door and insert the food. The program will automatically continue baking with selected settings. INFORMATION! When the fast preheat function is activated, delayed start function cannot be used.
- Page 17 Table continued from last page Symbol LARGE GRILL WITH FAN For roasting poultry and larger cuts of meat under a broiler. LARGE GRILL AND BOTTOM HEATER For faster baking on a single rack and for crisply browning the top of your pastry. GRILL WITH BOTTOM HEATER AND FAN For optimum baking of yeast-leavened dough, all types of bread, and for preservation.
- Page 18 The cooking duration symbol will appear on the display unit. Choose the setting and confirm it by pressing the KNOB (in our case, 2:00). Press the KNOB again and rotate it to select the symbol . Confirm and set the time when you wish your food to be done (in our case, this is 18:00, or 6 p.m.).
- Page 19 STEP PROGRAM This function allows baking in two steps or stages (two consecutive baking steps are combined in a single cooking process). A1. first cooking step STEP1, (STEP2) C. program duration/end of program (see chapter Timer Functions) E. temperature Step: STEP1 In the mode, set the baking system and temperature.
-
Page 20: Automatic Mode (Auto Bake)
AUTOMATIC MODE (auto bake) In this mode, you may choose between special baking systems or automatic programs (preset programs for particular types of food). Special baking systems Touch the key and set the following: B. special baking systems C. program duration (see chapter Timer functions) E. - Page 21 INFORMATION! When the fast preheat function is activated, delayed start function cannot be used. Automatic programs In the automatic mode (auto bake), you may choose between numerous automatic programs (the appliance will recommend the optimum cooking method, temperature, and cooking duration depending on the type of food specified).
- Page 22 Table continued from last page Indication Program name Equipment Level Preheating Turning Pr14 poultry smaller wire rack with a drip after 2/3 of pieces tray cooking time Pr15 meat loaf baking pan/dish on wire rack Pr16 oven-baked beef wire rack with a drip after 2/3 of steak tray...
-
Page 23: Choosing Extra Functions (Extra Bake)
CHOOSING EXTRA FUNCTIONS (extra bake) Touch the key to display extra functions with their respective preset values on the display unit. C. cooking duration D. program E. preset temperature Rotate the KNOB and select the program. Preset values will be displayed: Some programs allow setting the temperature and cooking time. - Page 24 • If the lock is activated with no timer function engaged (only clock is displayed), then the oven will not operate. • If the child lock is activated after a timer function has been set, then the oven will operate normally; however, it will not be possible to change the settings.
-
Page 25: Starting The Cooking Process
Starting the cooking process Start the cooking process by pressing the key. Until the set temperature is reached for the first time, the current and the set temperature will alternate on the display unit. The temperature symbol flashes at first. When the desired temperature is reached, it goes off. INFORMATION! If no timer function is selected, cooking time will appear on the display unit. -
Page 26: End Of Cooking By Touching
End of cooking by touching Stop the cooking process by touching the key. End appears on display unit and an acoustic signal is emitted. INFORMATION! After the operation is completed, all timer settings are also stopped and deleted, except for the minute minder. -
Page 27: General Settings
General settings Press and hold the key. SEtt will appear on the display unit for a few seconds. Then, the general settings menu will appear. INFORMATION! Rotate the KNOB to scroll through the settings. Confirm each setting by pressing the KNOB or key. - Page 28 Automatic fast preheating This function allows automatic addition of fast preheating to the baking systems that allow it. Rotate the KNOB to select the Auto setting. Choose On or OFF. Sabbath The Sabbath function allows keeping the food warm tin eh oven without having to switch the oven on or off.
-
Page 29: General Tips And Advice For Baking
General tips and advice for baking • Remove all unnecessary equipment from the oven during baking • Use equipment made of heat-resistant non-reflective materials (supplied baking trays and dishes, enamel-coated cookware, tempered glass cookware). Bright-coloured materials (stainless steel or aluminium) materials reflect heat. As a result, thermal processing of food in them is less effective. •... -
Page 30: Cooking With A Temperature Probe
Cooking with a temperature probe ( BAKESENSOR) (depending on the model) The temperature probe allows for accurate monitoring of the core temperature of the food during cooking. WARNING! The temperature probe should not be in direct vicinity of the heating elements. Stick the metal end of the probe into the thickest part of the food. - Page 31 INFORMATION! During the cooking process, set and current food core temperature alternate on the display unit. You may change the cooking temperature or the target food core temperature during the cooking process. Correct use of the probe, by type of food: •...
-
Page 32: Recommended Doneness Levels For Different Types Of Meat
Recommended doneness levels for different types of meat blue medium medium Type of food medium well done (raw) rare well BEEF beef, roast 46-48 48-52 53-58 59-65 68-73 beef, sirloin 45-48 49-53 54-57 58-62 63-66 roast beef/rump steak 45-48 49-53 54-57 58-62 63-66... -
Page 33: Cleaning And Maintenance
Cleaning and maintenance WARNING! Before cleaning, unplug the appliance from the power mains and wait for the appliance to cool down. Children should not clean the appliance or perform maintenance tasks without proper supervision. For easier cleaning, oven cavity and baking tray are coated with special enamel for a smooth and resistant surface. -
Page 34: Automatic Oven Cleaning Pyrolysis
Automatic oven cleaning pyrolysis Using high temperatures, the function makes it easy to clean the interior of the appliance, as well as some of the equipment supplied with it. During cleaning, fat residues and other impurities are incinerated. There are three pyrolysis (cleaning intensity) levels available, with varying duration of the process: Level Cleaning intensity Cleaning purpose... - Page 35 WARNING! During pyrolysis, unpleasant odours and smoke, as well as irritating vapours and gases, may be emitted. Therefore, make sure that the room is well-ventilated during the procedure and do not stay in that room for prolonged periods of time. Do not allow children or pets to come close to the oven.
-
Page 36: Using The Aqua Clean Program To Clean The Oven
Using the Aqua Clean program to clean the oven This program makes it easier to remove any stains from inside the oven. The function is the most effective when used regularly. Before running the cleaning program, remove all large chunks of dirt and food residues from the oven cavity. -
Page 37: Removing Wire And Fixed Pull-Out (Extendible) Guides
Removing wire and fixed pull-out (extendible) guides Hold the guides by the bottom side and pull them towards the center of the oven cavity. Remove them from the openings at the top. INFORMATION! When removing the guides, take care not to damage the enamel coating. -
Page 38: Removing And Replacing The Oven Door And Glass Panes
Removing and replacing the oven door and glass panes First, fully open the door (as far as it will go). Oven door is attached to the hinges with special supports that also include safety levers. Rotate the safety levers towards the door by 90°. -
Page 39: Replacing The Bulb
Replacing the bulb The bulb is a consumable and therefore not covered by warranty. Before replacing the bulb, remove all accessories from the oven. Halogen lamp: G9, 230 V, 25 W Unscrew and remove the cover (in anti-clockwise direction). Remove the halogen bulb. -
Page 40: Troubleshooting Table
Troubleshooting table Special warnings and fault reporting During the warranty period, only a service center authorized by the manufacturer may carry out any repairs. Before making any repairs, make sure the appliance is disconnected from the power mains either by removing the fuse or by disconnecting the power plug from the wall outlet. -
Page 41: Disposal
Disposal Our product packaging is made of environmentally friendly materials that can be recycled, disposed of, or destroyed without any hazard to the environment. To this end, packaging materials are labelled appropriately. The symbol on the product or its packaging indicates that the product should not be treated as normal household waste. -
Page 42: Cooking Test
Cooking test EN60350-1: Only use equipment supplied by the manufacturer. Always insert the baking tray all the way to the end position on the wire guide. Place pastry or cakes baked in moulds as shown in the image. * Preheat the appliance until it reaches the set temperature. Do not use the rapid preheat mode. ** Preheat the appliance for 10 minutes. - Page 43 BROILING mould Dish Equipment placement toasted bread wire rack wire rack + shallow pljeskavica (minced baking sheet as drip 25-40 *** meat patty) tray...
- Page 44 The appliance rating label is located on the inside of the appliance. When contacting the service department, have the complete type number to hand. You will fi nd the addresses and phone numbers of the service organisation on the guarantee card. 873484-a7...
