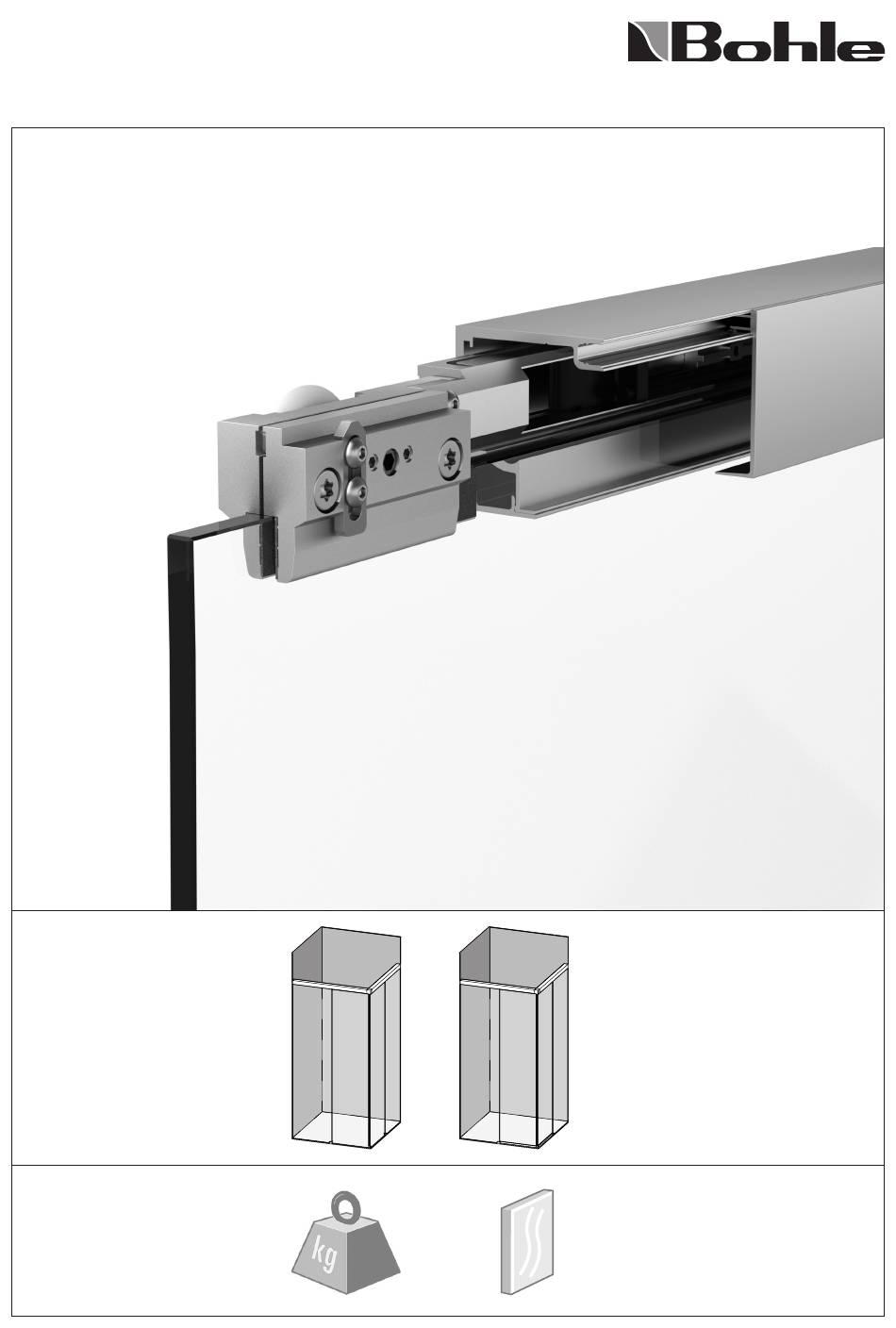

- Page 1 MasterTrack ST 90˚ Montageanleitung · Instruction Manual · Instructions d‘installation · Instrucciones de instalación · Istruzioni per l‘installazione · Szerelési útmutató · Monteringsanvisning · Installatie-instructies · Инструкция по монтажу 8 mm 40 kg...
- Page 2 MasterTrack ST 90˚ 2x BO 5700051 1x BO 5700051 min. 600 mm min. 400 mm...
- Page 3 BO 5700052 BO 5700053 GH = H - 40 GHS = H - 46 12,7 LB = L - 51 LF = LM = L/2 40 mm 40,5 L (max = 2000 mm)
- Page 4 Mounting Kit Glass Cleaner BO 5104734 BO 5107911...
- Page 5 3 mm 2 mm 1 mm...
- Page 6 ±2 mm ±2 mm...
- Page 7 min. 70 mm 13 Nm min. 30 mm 13 Nm...
- Page 9 ±3 mm...
- Page 10 max 1mm...
