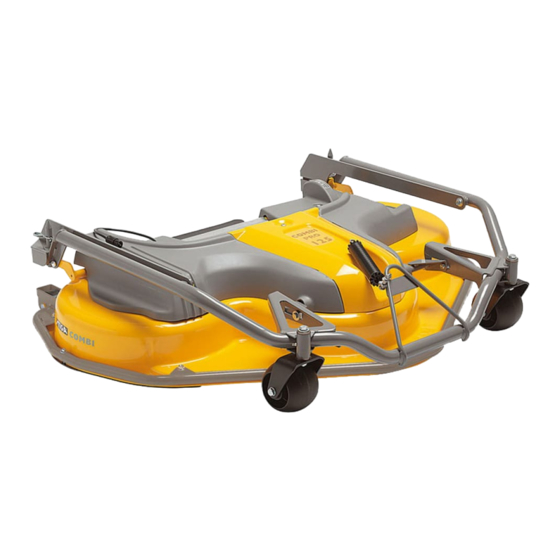

  • Page 1 110 Combi Pro EL QF 125 Combi Pro EL QF Type 110C E QF Type 125C E QF ASSIEME DEL DISPOSITIVO DI TAGLIO MANUALE DI ISTRUZIONI............IT РЕЖЕЩ ДИСК УПЪТВАНЕ ЗА УПОТРЕБА............BG REZNI TANJIR PRIRUČNIK S UPUTAMA............. BS SKŘÍŇ SEKAČKY NÁVOD K POUŽITÍ...
  • Page 3 ITALIANO - Istruzioni Originali ....................БЪЛГАРСКИ - Инструкция за експлоатация  ................BOSANSKI - Prijevod originalnih uputa ..................ČESKY - Překlad původního návodu k používání  ................DANSK - Oversættelse af den originale brugsanvisning ............... DEUTSCH - Übersetzung der Originalbetriebsanleitung  ............... ΕΛΛΗΝΙΚΑ - Μεταφραση των πρωτοτυπων οδηγιων  ..............ENGLISH - Translation of the original instruction  ................ESPAÑOL - Traducción del Manual Original  ................EESTI - Algupärase kasutusjuhendi tõlge  ..................SUOMI - Alkuperäisten ohjeiden käännös  ..................FRANÇAIS - Traduction de la notice originale  ................HRVATSKI - Prijevod originalnih uputa  ..................MAGYAR - Eredeti használati utasítás fordítása  ................LIETUVIŠKAI - Originalių instrukcijų vertimas ...
  • Page 4 Type : Cutting means assembly Art.N.
  • Page 6 Park 4WD Park 2WD...
  • Page 9: Dati Tecnici

    DATI TECNICI Type 110C E QF 125C E QF Dimensioni di ingombro fig. 2 A = Lunghezza 1011 1011 B = Altezza C = Larghezza 1185 1328 Massa 71,5 75,0 Altezza di taglio minima Altezza di taglio massima Larghezza di taglio Regolazione manuale altezza di taglio Regolazione elettrica altezza di taglio   Macchine compatibili (Type) P 901 C W  (**)  P 901 C 4W   P 901 CH  (**) (***)  (**) (***)   P 901 CH D ...
  • Page 10 [1] BG - ТЕХНИЧЕСКИ ДАННИ [1] BS - TEHNIČKI PODACI [2]  Габаритни размери [2]  Dimenzije [3]  A = Дължина [3]  A = Dužina [4]  B = Височина [4]  B = Visina [5]  C = Ширина [5]  C = Širina [6]  Маса [6]  Masa [7]  Минимална височина на косене [7]  Minimalna visina košenja [8]  Максимална височина на косене [8]  Maksimalna visina košenja [9]  Ширина на косене [9] ...
  • Page 11 [1] EN - TECHNICAL DATA [1] ES - DATOS TÉCNICOS [2]  Overall dimensions [2]  Dimensiones [3] A= Length [3] A = Longitud [4]  B= Height [4] B = Altura [5]  C= Width [5]  C = Anchura [6]  Weight [6] Peso [7]  Min. cutting height [7]  Altura de corte mínima [8]  Max. cutting height [8] ...
  • Page 12 [1] HU - MŰSZAKI ADATOK [1] LT - TECHNINIAI DUOMENYS [2]  Helyfoglalás [2]  Kėbulo išmatavimai [3]  A = Hosszúság [3] A = Ilgis [4]  B = Magasság [4]  B = Aukštis [5]  C = Szélesség [5]  C = Plotis [6]  Súly [6] Svoris [7]  Minimális vágásmagasság [7]  Minimalus pjovimo aukštis [8]  Maximális vágásmagasság [8]  Maksimalus pjovimo aukštis [9] ...
  • Page 13 [1] PL - DANE TECHNICZNE [1] PT - DADOS TÉCNICOS [2]  Wymiary [2]  Dimensões de delimitação [3]  A = Długość [3]  A = Comprimento [4]  B = Wysokość [4] B = Altura [5]  C = Szerokość [5]  C = Largura [6]  Ciężar [6]  Massa [7]  Minimalna wysokość cięcia [7]  Altura de corte mínima [8]  Maksymalna wysokość cięcia [8]  Altura de corte máxima [9] ...
  • Page 14 [1] SR - TEHNIČKI PODACI [1] SV - TEKNISKA DATA [2]  Dimenzije [2]  Dimensioner [3]  A = Dužina [3]  A = Längd [4]  B = Visina [4]  B = Höjd [5]  C = Šririna [5]  C = Bredd [6]  Masa [6]  Vikt [7]  Minimalna visina košenja [7]  Minsta klipphöjd [8]  Maksimalna visina košenja [8]  Altezza di taglio massima [9]  Širina košenja [9] Klippbredd [10] Ručno podešavanje visine košenja [10] Manuell klipphöjdsinställning...
  • Page 15: General Information

    WARNING!: READ THE INSTRUCTION BOOKLET THOROUGHLY BEFORE USING THE MACHINE. Keep for future reference. INDEX 1. GENERAL INFORMATION 1.  GENERAL INFORMATION ......1 2.  SAFETY REGULATIONS ......2 1.1 HOW TO READ THE MANUAL   2.4  Maintenance, storage and transport..3 3.  GETTING TO KNOW THE MACHINE ... 3 Some paragraphs in the manual contain ...
  • Page 16: Safety Regulations

    Work area/Machine 2. SAFETY REGULATIONS • Thoroughly inspect the entire work area and  remove anything that could be thrown by the  machine or damage the cutting means/rotating  2.1 TRAINING units (stones, branches, iron wire, bones, etc.). Before using this machine, read the 2.3 DURING OPERATION instruction manual of the machine on which this machine is about to be assembled. Work Area This Safety Regulations chapter only •...
  • Page 17: Maintenance, Storage And Transport

    immediately and move the machine away  2.5 ENVIRONMENTAL PROTECTION to prevent further damage; if an accident  occurs with injuries or third parties are  Safeguarding the environment must be a relevant  injured, carry out the first aid measures  and priority aspect of machine use, of benefit to  most suitable for the situation immediately  the community and the environment we live in. and contact the medical authorities for any  • Avoid being a disturbance to the  necessary health care. Carefully remove  neighbourhood. Use this machine at  any debris which could cause damage or  reasonable times of the day only (not  injury to persons or animals if ignored. early morning or late evening when the  noise could cause disturbance).  Use limitations • Adhere strictly to the local regulations  • Never use the machine with damaged,  governing the disposal of packaging, oil,  missing or incorrectly positioned guards. fuel, filters, damaged parts or any other  • Never disengage, deactivate, remove  element which may have an impact on  or tamper with the safety systems/ the environment; this waste should not be  micro switches installed. disposed of along with standard household  waste, but must be disposed of separately  2.4 MAINTENANCE, STORAGE and sent to special waste disposal ...
  • Page 18: Safety Signs

    • Using the cutting means on  3.3 IDENTIFICATION LABEL surfaces other than grass. The identification label holds  IMPORTANT Improper use of the machine the following data (fig. 1): will invalidate the warranty, relieve the Manufacturer from all liability, and the user 1. Trademark will consequently be liable for all and any 2. Manufacturer’s address damage or injury to himself or others. 3.
  • Page 19 To adjust the height of the cutting- For storage and transport purposes, some  means assembly: components of the machine are not installed  1. Remove the clip (fig. 5.A), preassembled  in the factory and have to be assembled after  on the pin (fig. 5.B), using a screwdriver. unpacking. Follow the instructions below. 2. Adjust the height of the pin (fig.  6.A) and insert the pin in one of the  designated holes (fig. 6.B), positioning  Unpacking and completing the it as seen in the diagram (fig. 6.C): assembly should be done on a flat and – For machines fitted with 17 inch wheels:  stable surface, with enough space for machine handling and its packaging, position the pin in the highest hole. always making use of suitable equipment.
  • Page 20: Cutting Height Adjustment

    4.2.5 Assembling the canvas guard 6. Raise the quick release support coupling  brackets (fig. 7.B) and separate the  1. Insert the two coupling hooks (fig. 11.A),  cutting-means assembly from the  found at the ends of the support chassis  ride-on mower with front deck. (fig. 11.B) inside the guide pins (fig. 11.C).  2. Position the support chassis (fig. 12.A)  under the device (fig. 12.B), and fasten  5. CONTROLS in place with the two screws (fig. 12.C). 4.2.6 Coupling to the accessory 5.1 CUTTING HEIGHT ADJUSTMENT lifting device Always perform adjustments when The cutting-means assembly is coupled  to the accessory lifting lever (fig. 13.A) of  the cutting means are stationary. the main machine by means of a spring ...
  • Page 21: Safety Checks

    • mow, chop and deposit the grass on  7. ROUTINE MAINTENANCE the ground (mulching effect) • mow the grass and discharge it on  the ground from the rear section 7.1 GENERAL INFORMATION The cutting-means assembly is delivered  ready to operate in “mulching” mode. IMPORTANT The safety regulations to follow during machine use are described To remove the grass from the rear of  in chapter 2. Strictly comply with these the cutting-means assembly indications to avoid serious risks or dangers. •...
  • Page 22: Occasional Maintenance

    5. Check that the two locking systems  7.5 LUBRICATION (fig. 18.A) are engaged and the cutting- means assembly is in a stable position. All points listed in the following table must be  6. Perform the required maintenance  lubricated every 50 hours of operation and  to the cutting-means. after each time the machine is washed. The machine is equipped with Object Action a safety system which does not allow the engagement of the cutting means when in Wheel shaft (fig. 21.A). 2 grease nipples.
  • Page 23: Handling And Transportation

    workshop for servicing, assistance  1. Clean the accessory thoroughly. and safety device inspection. 2. Check the accessory for any damage.  If necessary, carry out any repairs. 3. If the paint is damaged, touch-up  11. HANDLING AND TRANSPORTATION the areas to prevent rusting. 4. Protect all metal surfaces exposed to rust. When handling or transporting  5. Store the accessory in a closed  the machine, always: environment if possible. • Stop the machine 6. We highly recommend storing the machine  • Wait for the cutting means to come to a halt with the cutting-means assembly in the  • Bring it to the minimum cutting height (par. 5.1). working or transport position, to prevent  • Release the cutting-means assembly from  damage to the transmission belt (Please  the ride-on mower with front deck (chap. 4.3) also read the instructions provided in the  •...
  • Page 24: Problem Identification

    Intervention Frequency Paragraph First time And then after every Check the condition of the cutting-means Before each use Check the condition of the transmission belt 5 hours 25 hours Wheel shaft lubrication 50 hours 14. PROBLEM IDENTIFICATION PROBLEM PROBABLE CAUSE SOLUTION 1. Unusual vibrations  Loose parts or damaged  Tighten all fastening devices. Have  while working cutting means. the damaged parts replaced c/o  an authorised service centre. Cutting-means assembly is full of grass Clean the cutting-means assembly 2. Uneven cut Inefficient cutting-means Contact your dealer Forward speed too high ...
  • Page 25 (Istruzioni Originali) (Direttiva Macchine 2006/42/CE, Allegato II, parte A) La Società: STIGA S.p.A. – Via del Lavoro, 6 – 31033 Castelfranco Veneto (TV) – Italy Dichiara sotto la propria responsabilità, che la macchina: Assieme Dispositivo di taglio (accessorio intercambiabile) / taglio erba...
