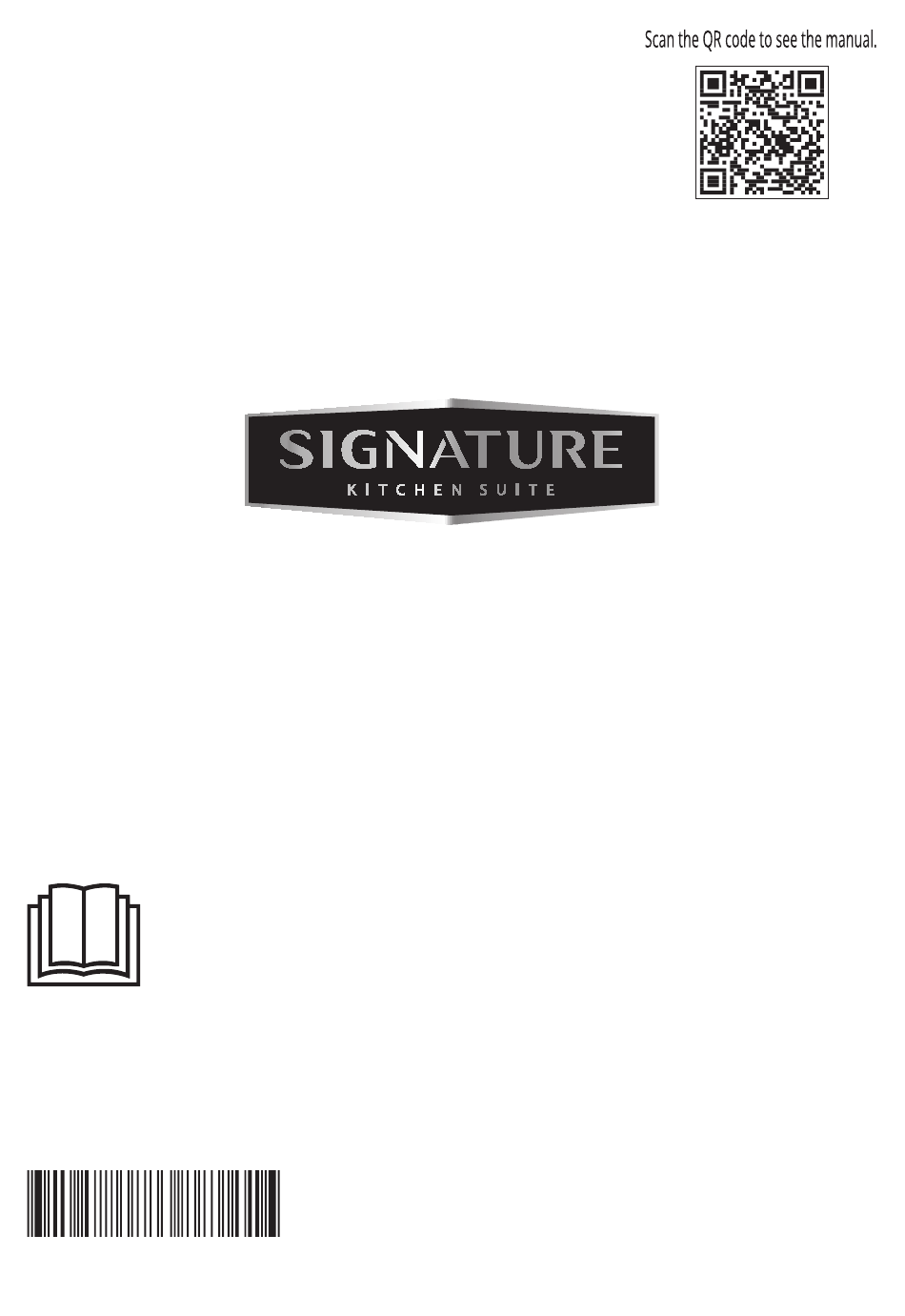

OWNER'S MANUAL
CERAMIC-GLASS INDUCTION HOB
Before beginning installation, read these instructions carefully. This
will simplify installation and ensure that the product is installed
correctly and safely. Leave these instructions near the product after
installation for future reference.
ENGLISH
SKSIT3601G SKSIT3621MS
MFL54169110
Rev.08_081623
Copyright © 2021-2023 Signature Kitchen Suite. All Rights Reserved.
www.signaturekitchensuite.com/it

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SKSIT3601G and is the answer not in the manual?

Questions and answers

Related Manuals for Signature SKSIT3601G

Summary of Contents for Signature SKSIT3601G

  • Page 1 Before beginning installation, read these instructions carefully. This will simplify installation and ensure that the product is installed correctly and safely. Leave these instructions near the product after installation for future reference. ENGLISH SKSIT3601G SKSIT3621MS www.signaturekitchensuite.com/it MFL54169110 Rev.08_081623 Copyright © 2021-2023 Signature Kitchen Suite. All Rights Reserved.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS This manual may contain images or content that may be different from the model you purchased. This manual is subject to revision by the manufacturer. SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE............3 WARNING ......................3 CAUTION ......................9 CARING FOR THE ENVIRONMENT ..............12 INSTALLATION Product Overview.....................13 Before Installing....................13...

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as described below. Safety Messages This symbol is displayed to indicate matters and operations that can cause risk.
  • Page 4 SAFETY INSTRUCTIONS • The safety aspects of this appliance comply with accepted technical standards. • Know how to disconnect the electrical power to the appliance at the circuit breaker or fuse box in case of an emergency. Mark the breaker or fuse for ease of identification and swift action if necessary.
  • Page 5 SAFETY INSTRUCTIONS • DO NOT touch cooking zones or areas near these surfaces. Cooking zones may be hot from residual heat even though they are dark in color. Areas near the cooking zones may become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials touch these areas until they have had sufficient time to cool.
  • Page 6 SAFETY INSTRUCTIONS • If the surface is cracked, switch off the appliance to avoid the possibility of electric shock. Do not reuse your hob until the glass surface has been replaced. • When using the hob, never use aluminum foil, products wrapped in aluminum foil, or deep-frozen food in aluminum cookware.
  • Page 7 SAFETY INSTRUCTIONS • Do not use aluminum foil to line any part of the hob. Only use aluminum foil as recommended after the cooking process, if used as a cover to be placed over the food. Any other use of aluminum foil may result in the risk of electric shock, fire or short circuit.
  • Page 8 • If your appliance malfunctions or fractures, switch off all cooking zones, and contact the SIGNATURE KITCHEN SUITE Customer Information Center for service. • Always keep the control panel clean and dry. Do not let liquids or grease remain on the hob display area.

  • Page 9: Caution

    SAFETY INSTRUCTIONS • Clean the appliance regularly to keep all parts free of grease that could catch fire. Exhaust fan ventilation hoods and grease filters should be kept clean. Do not allow grease to accumulate on the hood or filters. Greasy deposits in the fan could catch fire. Refer to the hood manufacturer's instructions for cleaning.
  • Page 10 SAFETY INSTRUCTIONS • Do not let pans boil dry. This may cause permanent damage in the form of breakage, fusion, or marking that can affect the ceramic- glass hob. (This type of damage is not covered by your warranty.) • Cook meat and poultry thoroughly-meat to at least an INTERNAL temperature of 71 and poultry to at least an INTERNAL temperature of 82...
  • Page 11 SAFETY INSTRUCTIONS • Clean the hob in accordance with the maintenance and cleaning instructions in this manual. • Do not use harsh abrasive cleaners or rough metal scrapers to clean the hob glass since they can scratch the surface, which may result in shattering of the glass.

  • Page 12: Caring For The Environment

    SAFETY INSTRUCTIONS CARING FOR THE ENVIRONMENT Disposal of Your Old Appliance • This crossed-out wheeled bin symbol indicates that waste electrical and electronic products (WEEE) should be disposed of separately from the municipal waste stream. • Old electrical products can contain hazardous substances so correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.

  • Page 13: Installation Product Overview

    INSTALLATION INSTALLATION Product Overview Accessories Parts and Features Throughout this manual, features and appearance may vary from your model. Retainer Brackets (2 ea) Bolts (2 ea) Type A Screws (2 ea) Before Installing Before You Begin Installation and service must be performed by a qualified installer.
  • Page 14 INSTALLATION Gloves NOTE Consumer: Parts not Provided • Keep this owner's manual and installation instructions for future reference. NOTE • This appliance must be properly grounded. • Damage caused by failure to follow these Junction Box instructions is not covered by the hob warranty. Wire Nuts Strain Relief (Conduit Connector) Tools Needed...
  • Page 15 INSTALLATION the user can ask the public power supply company for the system impedance at the interface point. Technical Specifications Models SKSIT3601G, SKSIT3621MS Description Induction Hob Connection 230 V~, 50 Hz, 44.3 A voltage Electrical Specificati Maximum connected 10 200 W...
  • Page 16 INSTALLATION Preparing the Installation Location Important Installation Information • All electric hobs run off a single phase, three-wire (L, N, Ground), 230 volt, 50 hertz, AC only electrical supply with ground. • Minimum distance between hob and overhead cabinetry is 762 mm. •...
  • Page 17 INSTALLATION Flush Installation Do not obstruct these areas. Right side Radius: 10 mm 102 mm x 203 mm opening to route armored cable if panel is present. Approximate location of junction box Front and Back Side Right and Left Side Radius: 13 mm 19 mm 32 mm...
  • Page 18 INSTALLATION 930 mm Induction Hob Dimension/Clearance Standard Flush Installation Installation Distance from bottom of upper plate to bottom of 91 mm 91 mm conduit Width of hob base 860 mm 860 mm Depth of hob base 490 mm 490 mm Distance from bottom of upper plate to bottom of hob 62 mm 62 mm...
  • Page 19 INSTALLATION Refer to the illustration below. Attach the cleats to the countertop. Consult a countertop supplier for proper methods of attachment. L-shaped Cleat (Front and Back) L-shaped Cleat (Right and Left) L-Shaped Support Cleat Counter Top All dimensions are stated in millimeters (mm). Allow 50 mm space below the armored cable opening to clear the electric cable and allow space for installation of the junction box on the wall at the back of the hob.

  • Page 20: Installing The Hob

    INSTALLATION CAUTION Standard Installation Flush Installation Installing the Hob Providing the Electrical Connection • Install the junction box under the cabinet and Electrical Connections run 230 Volt, AC wire from the main circuit panel. Important Safety Instructions NOTE • Be sure the hob is installed and grounded •...
  • Page 21 INSTALLATION line(time-delay fuse or circuit breaker is This appliance is manufactured with a supply wire recommended). DO NOT fuse neutral. The fuse and a frame-connected green and yellow size must not exceed the circuit rating of the grounding wire. appliance specified on the nameplate. WARNING •...
  • Page 22 INSTALLATION 3-Wire Grounded Junction Box NOTE • For flush installation - Before flush installing the hob, remove the 6 installation brackets. Carefully lower the hob into the countertop cutout, making sure not to trap any wires. Cable from Power Supply Cable from Hob Green and Yellow Wire (Ground) Brown Wires (L)
  • Page 23 INSTALLATION NOTE • The retainer brackets MUST be installed to meet local codes. • For flush installation - Finish a flush installation by running sealant around the edges of the hob. Countertop Bolt Retainer Brackets Type A Screw Final Check Perform a final operational check of the hob, making sure the hob powers on properly and that each cooking zone operates correctly.

  • Page 24: Operation

    OPERATION OPERATION Introduction to Induction When purchasing pans for use on the induction hob, look for cookware identified by the Cooking manufacturer as "induction ready" or "induction capable", or that is marked by the manufacturer as How Induction Cooking Works specifically designed for induction cooking.
  • Page 25 OPERATION Incompatible Cookware Pan Preheat Recommendations Induction cooking may decrease the amount of • Aluminum, nickel-silver pots time required to preheat cookware compared to • Heat-resistant glass pots cooking on a radiant element hob or gas surface • Roasting pans burner.
  • Page 26 OPERATION Use Flat-Bottomed Cookware Minimum Cookware Size Cookware must fully contact the surface of the • Use cookware with a bottom surface diameter of cooking element. Use flat-bottomed pans sized to 140 mm or greater. fit the cooking element and amount of food being •...
  • Page 27 OPERATION Incorrect possibility of developing scratches on the ceramic surface. • Cookware is not centered on surface of cooking Low-quality cookware can scratch the hob surface. element. Cookware should always be lifted over the ceramic hob surface to prevent scratching. Over time, sliding ANY type of cookware over the ceramic hob may alter the overall appearance of the hob.

  • Page 28: Control Panel

    OPERATION not aligned Surface elements and controls bottom not flat POWER: Press and hold for 1 second to handle too heavy turn the entire hob ON. When it is ON, the • Dirty cooking zones and cookware use more hob is in standby mode until a cooking electricity.
  • Page 29 Getting Started The first time that power is supplied to the hob, the SIGNATURE KITCHEN SUITE logo is displayed for 1 second. After turning on the hob for the first time, adjust the settings to suit your preferences.
  • Page 30 OPERATION • Page 2: Volume, Program Update, Demo Mode, Factory Data Reset, Open Source Time License The time is displayed on the LCD display when the hob is turned on. Setting Time of Day Press SETTINGS at the center bottom of the main screen.
  • Page 31 OPERATION Press OK. Brightness Adjust the brightness of the LCD display from 20 % to 100 % in increments of 20 %. Volume Setting Display Brightness Adjust the volume of the hob controls. Setting the Volume Press SETTINGS at the center bottom of the main screen, and press Brightness.
  • Page 32 OPERATION Before Using the Hob Press OK. Before using the hob for the first time, clean it thoroughly with the included cleaner or ceramic hob cleaner according to the Care and Cleaning instructions in this guide. This will help protect the ceramic surface and make future cleanup easier.
  • Page 33 OPERATION detection time may differ or the cookware may Press the icon in the desired cooking zone on not be detected automatically. the display to set the power level. NOTE NOTE • If the cookware is too small, the words "Auto •...
  • Page 34 OPERATION Readjusting the Power Level Press the desired cooking zone in the display to bring up the Power Levels popup. Selecting a power level turns on the cooking zone. The cooking zone indicator remains lit and the power level is stored. Press the desired level in the Power Levels popup.
  • Page 35 OPERATION and use the LEDs to monitor the power levels heat to cause burns. Avoid touching the cooking of the elements. zone when this indicator is shown. Although the hob is off, the popup message will stay lit until the hob has cooled down. 9 Step Turbo Melt...
  • Page 36 OPERATION Tips for Induction Cooking • When boiling water on the center element, an 280 mm diameter pot gives the best Getting the results you want when cooking can performance and saves the most time. take a bit of time and effort. If you are not familiar •...
  • Page 37 OPERATION Cooking Power Example Food Item Notes/Comments Function Level • Tomato Sauce Simmer • Cheese Sauce Monitor carefully to prevent spillovers. To steam vegetables or grains, bring cooking • Potatoes Simmering liquid to a simmer, cover the pot, and reduce •...
  • Page 38 OPERATION Use MELT to melt items such as chocolate or butter WARNING without scorching. • Never use the Turbo mode to preheat empty Turning Melt On cookware or to heat oil, butter or lard. The Place the cookware on the rear right cooking zone. cookware may be damaged and the fat or grease Activate the Power Levels popup and press the may catch fire if overheated.
  • Page 39 OPERATION Activating the Dual Cooking Zone To merge the 2 cooking zones, press the Flex icon. The icon will change to show one To activate the larger cooking zone, place a pan combined zone. that is at least 230 mm in diameter on the cooking zone.
  • Page 40 OPERATION wait 30 seconds or press the Clean Lock icon for 1 • When the set time has passed, a popup screen second. with "Timer finished" appears with the alarm sound. Cooking Timer The Cooking Timer also acts as a simple timer and automatically turn off the cooking zone.
  • Page 41 OPERATION Set the output level to 9. Power level Maximum set time 1 hour Long press (more than 3 seconds) on the power level area to display the cookware heating index. Automatic Power Level Control The power level displayed may be different from the actual power level at the high end of the temperature range.

  • Page 42: Smart Functions

    SMART FUNCTIONS SMART FUNCTIONS LG ThinQ Application Models without QR Code This feature is only available on models with Wi-Fi. Search for and install the LG ThinQ application The LG ThinQ application allows you to from the Google Play Store or Apple App Store communicate with the appliance using a on a smartphone.
  • Page 43 WEP, you may fail to set up the network. Please opensource.lge.com. change it to other security protocols (WPA2 is SIGNATURE KITCHEN SUITE will also provide open recommended) and connect the product again. source code to you on CD-ROM for a charge...

  • Page 44: Maintenance

    MAINTENANCE MAINTENANCE Care and Cleaning Rinse with clear water and use a dry cloth or paper towel to remove all cleaning residue. Cleaning the Hob NOTE Normal Daily Use Cleaning • Any damage or failure of the product resulting from the items below may not be covered under CAUTION the LIMITED WARRANTY.
  • Page 45 MAINTENANCE damp paper towel. Leave the cleaner on for 10 Rinse with clean water and wipe the hob minutes before rinsing it off. surface with a clean, dry paper towel. Maintaining the Hob CAUTION • Do not use chlorine bleach, ammonia, or other cleaners not specifically recommended for use on glass-ceramic hobs.
  • Page 46 MAINTENANCE CAUTION • Do not slide metal or glass across the hob surface. • Do not use cookware with any dirt build-up on the bottom. • Do not use cookware if there is foreign matter on the hob surface. Always clean the hob surface before cooking.

  • Page 47: Troubleshooting

    TROUBLESHOOTING TROUBLESHOOTING Before Calling for Service Repairs should be performed by a licensed technician only. Improper repair may result in considerable danger to you and others. However, some minor problems can be resolved as in the table below: If a problem is not solved, please contact an LG Electronics Customer Information Centre. Parts and Features Symptoms Possible Cause &...
  • Page 48 TROUBLESHOOTING Symptoms Possible Cause & Solution A fan sound can be Hob inner temperature is high. heard. • This is normal. The cooling fan will run when any element is turned on. With heavy use the fan may continue to run after the controls are turned off until the hob has cooled.
  • Page 49 TROUBLESHOOTING Symptoms Possible Cause & Solution Cookware has been Cookware is overheated. damaged. • Never use the Turbo mode to preheat empty cookware or to heat oil, butter or lard. • Use the Turbo function to boil water or heat up large quantities of food quickly.
  • Page 50 TROUBLESHOOTING Symptoms Possible Cause & Solution Your home appliance The wireless network name (SSID) is set incorrectly. and smartphone are • The wireless network name (SSID) should be a combination of English not connected to the letters and numbers. (Do not use special characters.) Wi-Fi network.

  • Page 51: Appendix Product Fiche

    APPENDIX APPENDIX Product Fiche Product Fiche Product Fiche_COMMISSION DELEGATED REGULATION (EU) No 66/2014, Applicable Standard EN 60350-2:2016 Trademark SIGNATURE KITCHEN SUITE Model identifier SKSIT3601G, SKSIT3621MS Type of hob Built-in hob Heating technology induction cooking zones and cooking areas Number of cooking zones and/or areas...

  • Page 52: Warranty

    APPENDIX Warranty Warranty...
  • Page 53 APPENDIX...
  • Page 54 Memo...
  • Page 55 Memo...
  • Page 56 Centro di assistenza clienti Customer Information Center 800-978-866 800-978-866...
