SLG46811V GreenPAK DIP Adapter
This user guide is intended to familiarize new users with the SLG46811V GreenPAK DIP Adapter. It consists of
the description of the board, lists its features, shows top and bottom views, as well as the board schematic.
Contents
1.
Description ..................................................................................................................................................... 1
2.

Features .......................................................................................................................................................... 1

3.
Top View ......................................................................................................................................................... 2
4.
Bottom View ................................................................................................................................................... 2
5.
Board Schematic ........................................................................................................................................... 2
6.
Revision History ............................................................................................................................................ 3
1. Description

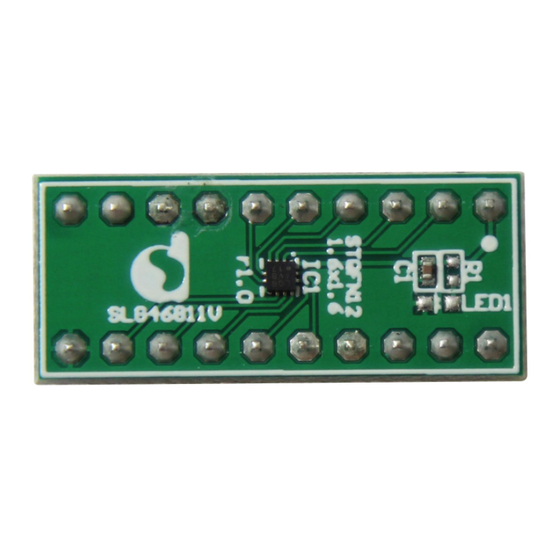

The GreenPAK DIP Adapter is a small PCB that lets you adapt STQFN packages into a DIP footprint. This board
can speed up your design prototyping and testing. This small board 0.45x1.05 inch uses 20 pins DIP footprint
with 0.3 inch width. You can also use this adapter for prototyping by making STQFN package compatible with
solder free breadboards.
2. Features
Low cost
Simplifies prototyping of SMT IC's
Optional V
LED indicator
DD
Decoupling capacitor included
R12QS0069EU0100 Rev.1.00
Jul 19, 2023
Note 1: All sizes in inches
Quick Start Guide
Page 1
© 2023 Renesas Electronics

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SLG46811V and is the answer not in the manual?

Questions and answers

Summary of Contents for Renesas SLG46811V

  • Page 1 SLG46811V GreenPAK DIP Adapter This user guide is intended to familiarize new users with the SLG46811V GreenPAK DIP Adapter. It consists of the description of the board, lists its features, shows top and bottom views, as well as the board schematic.
  • Page 2 SLG46811V GreenPAK DIP Adapter Quick Start Guide 3. Top View 4. Bottom View Chip package type LED current limit resistor (optional) I2C pull up resisitors (optional) Chip pin number VDD LED indicator (optional) VDD Chip decoupling capacitor Pins Pins Pins...
  • Page 3 SLG46811V GreenPAK DIP Adapter Quick Start Guide 6. Revision History Revision Date Description 1.00 July 19, 2023 Initial release. R12QS0069EU0100 Rev.1.00 Page 3 Jul 19, 2023...
