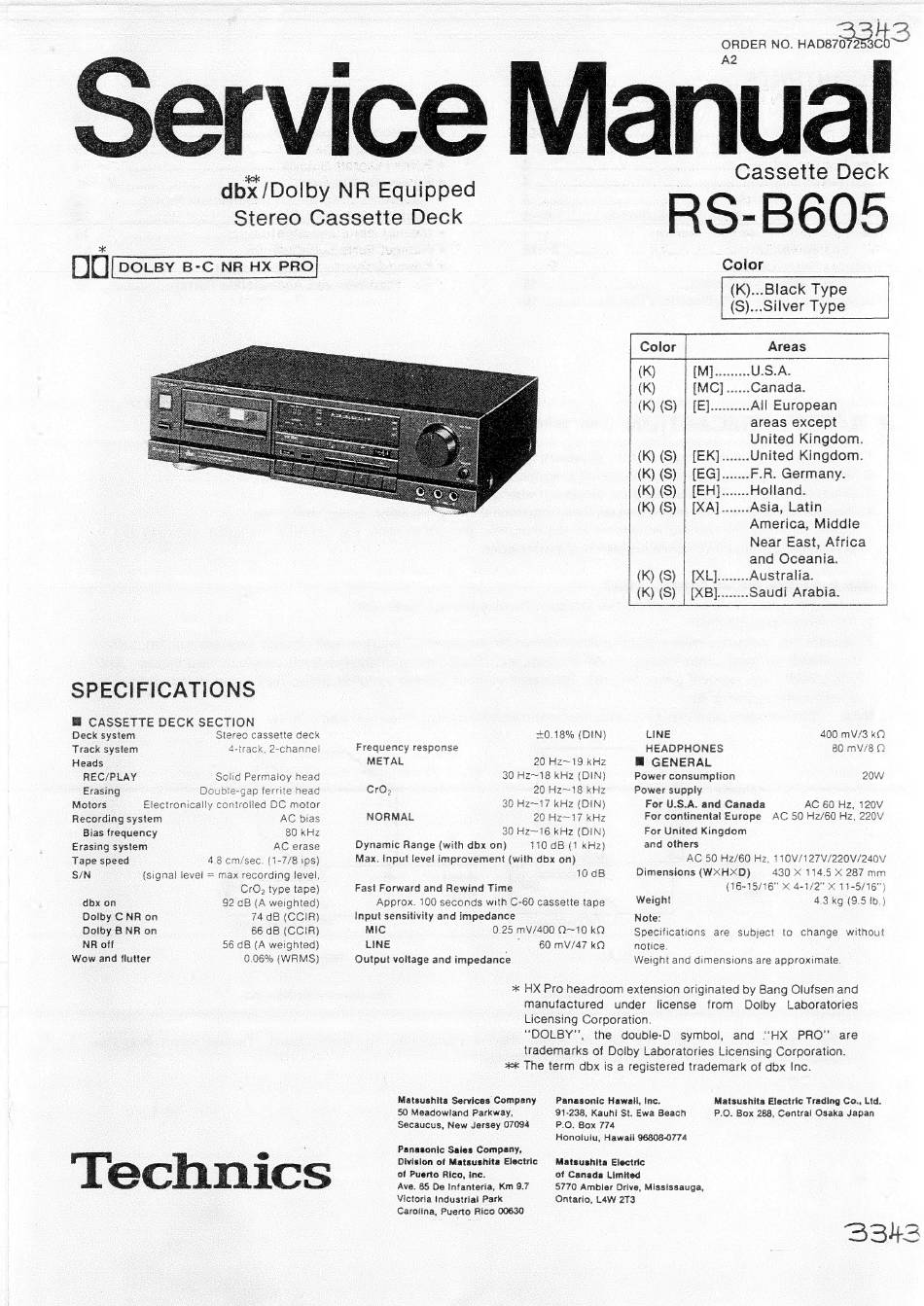

Technics RS-B605 Service Manual

dbx /Dolby NR Equipped
Stereo Cassette Deck
DU ots 5-¢ NA Hx PAO]
SPECIFICATIONS
i CASSETTE DECK SECTION
Deck system Stereo cassette deck
Track system 4-track, 2-channel
Heads
REC/PLAY Solid Permaloy head
Erasing Double-gap ferrite head
Motors Electronically controlled DC motor
Recording system AC bias
Bias frequency 80 kHz
Erasing system AC erase
Tape speed 4.8 cm/sec. {1-7/8 Ips)
S/N (signal level = max recording level,
CrO; type tape)
dbx on 92 dB (A weighted)
Dolby CNR on 74 dB (CCIR)
Dolby B NR on 66 dB (CCIR)
NR off 56 dB (A weighted)
Wow and flutter 0.06% (WRMS)
Technics
+0.18% (DIN)
Frequency response
METAL 20 Hz~19 kHz
30 Hz~18 kHz (DIN)
cro, 20 Hz~18 kHz
30 Hz~17 kHz (DIN)
NORMAL 20 Hz~17 kHz
30 Hz~16 kHz (DIN)
Dynamic Range (with dbx on) 110 dB (1 kHz)
Max. Input level improvement (with dbx on)
10 dB
Fast Forward and Rewind Time
Approx. 100 seconds with C-60 cassette tape
input sensitivity and impedance
Mic 0.25 mV/400 N~10 kQ
LINE "60 mV/47 kQ
Output voltage and impedance
33! 3
ORDER NO. HAD87072 fa
A2
ervice Manual
Cassette Deck
RS-B605
Color
(K)...Black Type
(S)...Silver Type
Areas
(K) [M]......... U.S.A.
(K) [MC]...... Canada.
(K) (S))) [Ebene All European
areas except
United Kingdom.
(K) (S) | [EK]....... United Kingdom.
(K) (S) | [EG]....... F.R. Germany.
(K) (S) | [EH].......Holland.
(K) (S) | [XA]....... Asia, Latin
America, Middle
Near East, Africa
and Oceania.
(K) (S) | [XL]........ Australia.
(K) (S) | [XB]........ Saudi Arabia.
LINE 400 mV/3 kQ
HEADPHONES 80 mV/8
@ GENERAL
Power consumption 20W
Power supply
For U.S.A. and Canada AC 60 Hz, 120V
For continental Europe AC 50 Hz/60 Hz, 220V
For United Kingdom
and others
AC 50 Hz/60 Hz, 110V/127V/220V/240V
Dimensions (WXHXD) 430 X 114.5 X 287 mm
(16-15/16" X 4-1/2" X 11-5/16")
Weight 4.3 kg (9.5 Ib.)
Note:
Specifications are subject to change without
notice.
Weight and dimensions are approximate.
* HX Pro headroom extension originated by Bang Olufsen and
manufactured under license from Dolby Laboratories
Licensing Corporation.
"DOLBY", the double-D symbol, and ''HX PRO" are
trademarks of Dolby Laboratories Licensing Corporation.
4k The term dbx is a registered trademark of dbx Inc.
