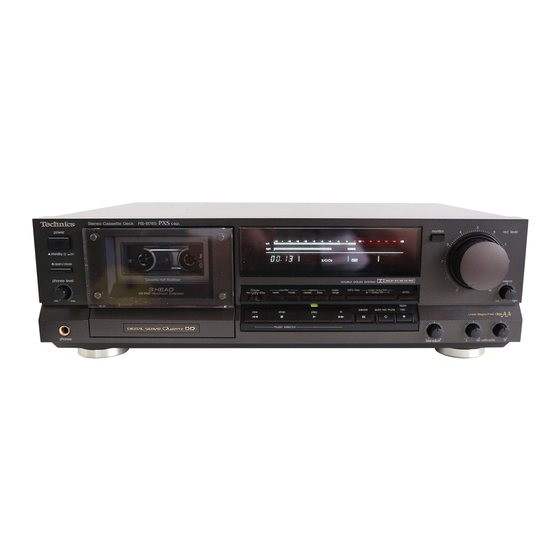

Technics RS-B765 Service Manual

ORDER NO. AD9004096A2 Service Manual
Color
(K)... Black Type
Country
Continental Europe
(K)
DU ots 5-c Na Hx PAG]
* HX Pro headroom extension originated by Bang
Olufsen and manufactured under ticense from Dolby
Laboratories Licensing Corporation.
"DOLBY", the double-D symbol, and 'HX PRO" are
trademarks of Dolby Laboratories Licensing
Corporation.
RS-B555 MECHANISM SERIES (AR350)
Area
(EB) Great Britain.
(EG) | F.R. Germany and Italy
Please file and use this supplement manual together with the service manual for Model No. RS-B755,
Mi CHANGE IN REPLACEMENT PARTS LIST
Note:
Order No. AD8908260C5,
1, Mentioned in this parts list are only those different from Model No. RS-B755 (E, EB, EG)
all other parts are the same as for RS-B755 (E, EB, EG).
2. Important safety notice:
Components identified by A mark have special characteristics important for safety.
When replacing any of these components use only manufacturer's specified parts.
3. Parenthesized indications in "'remarks"' columns specify the area.
Parts without these indications can be used for all areas.
Change of Parts No. ae
Ref. No. Part Name & Description Remarks
RS-B755 =a RS-B765
CAPACITORS
C9, C10 ECEAOJPX471B ECAO0JPXS471B E.CAPACITOR, 63V, 470yF
C19, C20 ECEA1HKR33B ECA1HPXSR33B E.CAPACITOR, 50V, 0.33uF | |
G21, G22 ECEA1CPX100B ECA1CPX$100B E.CAPACITOR, 16V, 10uF T |
C35, C36 ECEA1HPX4R7B ECA1HPXS4R7B E.CAPACITOR, 50V, 4.7yuF
| C43, c4a | ECEA1CPX1008 ECA1CPXS100B E.CAPACITOR, 16V, 10uF dl
C45,C46 | ECEA1HPX4R78 ECA1HPXS4R7B E.CAPACITOR, 25V, 4.7yuF
| C47,C48_ | ECEATHPSO10 | ECATHPXS010B E. CAPACITOR, 50V, Wa
C49, C50 ECEAICPX1008 | ECA1CPXS100B E.CAPACITOR, 16V, 10uF iG
C403, C404 ECEAICPX100B_ | ECA1CPXS100B E.CAPACITOR, 16V, 10uF
Technics
Matsushita Electric Industrial Co., Ltd.
Central P.O. Box 288, Osaka 530-91, Japan
