ORDER
NO. AD9204104C8
S508
3
aa

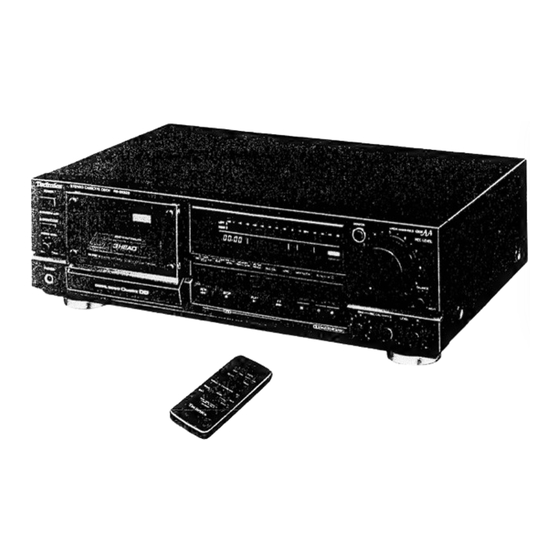

Cassette Deck
Dolby NR-Equipped
Stereo Cassette Deck
RS-
Bx828
*
NU [covey 8-c NR Hx PRO
Colour
Don
po
ee]
| (K)... Black Type
Area
\
| Suffix for
|
Model No.
Area
| Colour
|
(EB)
| Great Britain.
|
|
ol
1
Germany
and ltaly./
|
{E6)
Sass
;
—
ee
Asia, Latin America,
(K)
|
i
(GC)
Middle Near East
and Africa.
|
L
+
eas
|
(GN)
Oceania. *
| Soler
eeencurere
>
RS-TR555 MECHANISM
SERIES (AR350)
SPECIFICATIONS
H CASSETTE DECK SECTION
S/N (Signal level=max recording level, CrOe type tape)
Deck system
Stereo cassette deck
NR off
57 dB (A weighted)
Track system
4-track, 2-channel
Dolby
8B NRon
66 d& (CCIR)
Recording system
AC bias
Dolby
CNR on
74 dB (CCIR)
Bias frequency
80 KHz
input sensitivity and impedance
Erasing system
AC erase
REC (IN)
60 mV/47 kQ
Heads
Output voltage and impedance
Recording head (Permalloy) x1
PLAY (OUT)
400 mV/800Q
Playback head (Permalloy) x 1
HEADPHONES
125 mV/(8Q)
Erasing head (Double-gap ferrite) x 1
(Load impedance 8Q~600Q)
Motors
Capstan drive (Quartz DD motor) x1
@ GENERAL
Reel table drive (DC motor) x 1
Power consumption
22 W
Cassette holder open/close (DC motor) x 1
Power supply
Tape speed
4.8 cm/sec.
For (GC) area
AC 50Hz/60Hz, 110V/127V/220V/240V
Wow and flutter
0.03% (WRMS)
For others
AC 50Hz/60Hz, 230V—240V
+0.09% (DIN)
Dimensions (WXHxD)
430 x 135x300 mm
Fast forward and rewind times
Weight
5.3kg
Approx. 100 seconds with C-60 cassette tape
Frequency response (Dolby NR off)
NORMAL
30 Hz~17 kHz, +3 dB
Note:
cro
20 Hz~18 ee
Specifications are subject to change without notice.
rz
30 Hz~18 kHz, +3 dB
Weight and dimensions are approximate.
20 Hz~ 19 kHz (DIN)
METAL
30 Hz~19 kHz, +3 dB
20 Hz~20 kHz (DIN)
Technics
