Summary of Contents for HIKVISION DS-TVL224

  • Page 1 Entrance and Exit Screen User Manual...
  • Page 2 INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.
  • Page 3 Entrance and Exit Screen User Manual PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATTER PREVAILS.
  • Page 4 Entrance and Exit Screen User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, Caution could result in equipment damage, data loss, performance...
  • Page 5: Table Of Contents

    Entrance and Exit Screen User Manual Contents Chapter 1 Introduction ....................... 1 1.1 Product Introduction ......................1 1.2 LED Screen Type ........................1 Chapter 2 Installation ......................... 3 2.1 Installation ..........................3 Chapter 3 configuration ......................4 3.1 Search Screen IP ........................4 3.2 Change Screen IP ........................
  • Page 6: Chapter 1 Introduction

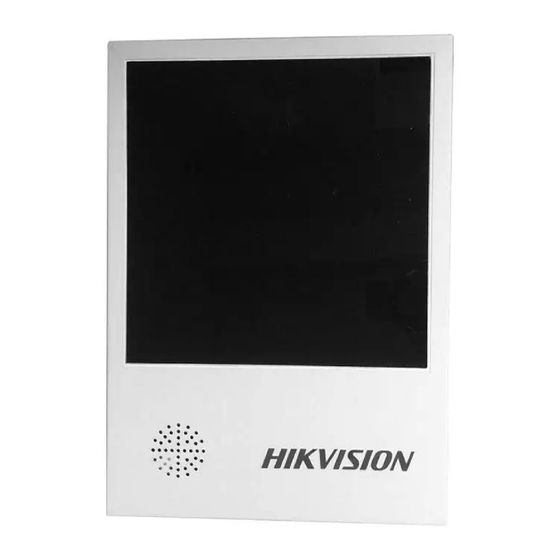

    E&E LED screen is mainly used in the entrance and exit scenario. When the vehicle enters and exits, the license plate, E&E time, and guidance message are displayed 1.2 LED Screen Type DS-TVL224-4-5Y 4-Lines 3-Color 8-Characters Outdoor Entrance & Exit LED Screen...
  • Page 7 Entrance and Exit Screen User Manual DS-TVL224-4-5Y(2 Rows) 2-Lines 3-Color 8-Characters Dark-Grey Outdoor Entrance & Exit LED Screen...
  • Page 8: Chapter 2 Installation

    Entrance and Exit Screen User Manual Chapter 2 Installation 2.1 Installation Here we take the installation of one type of screen for example 1. Install the hoop to the vertical pole. 2. Fix the device with the hoop via screws. 3.
  • Page 9: Chapter 3 Configuration

    Entrance and Exit Screen User Manual Chapter 3 configuration After the installation completes, power on the LED screen, starting to configure the LED screen 3.1 Search Screen IP Opening the LED screen tool,search the LED screen first The default IP about LED screen is 192.168.1.99 3.2 Change Screen IP Changing the LED screen IP...
  • Page 10: Set Configuration

    Entrance and Exit Screen User Manual 3.3 Set Configuration DS-TVL224-4-5Y Width: 64 Height: 64 Color: Two Colors OE Polerity: Low Data Polerity: Low Save Control: 1: not store Line: 1.General Color Channel: R+G+B Driver IC: General Scan mode: 8.4...
  • Page 11 Entrance and Exit Screen User Manual DS-TVL224-4-5Y(2 Rows) Width: 64 Height: 32 Color: Two Colors OE Polerity: Low Data Polerity: Low Save Control: 1: not store Line: 1.General Color Channel: R+G+B Driver IC: General Scan mode: 8.8 Noted:Each parameter need click Setting after change...
  • Page 12: Test

    Entrance and Exit Screen User Manual 3.4 Test Go to Display, you can input content what you want, then click Display to send message to screen, to check if the screen can display normal or not.

This manual is also suitable for:

Ds-tvl224-4-5y/2
