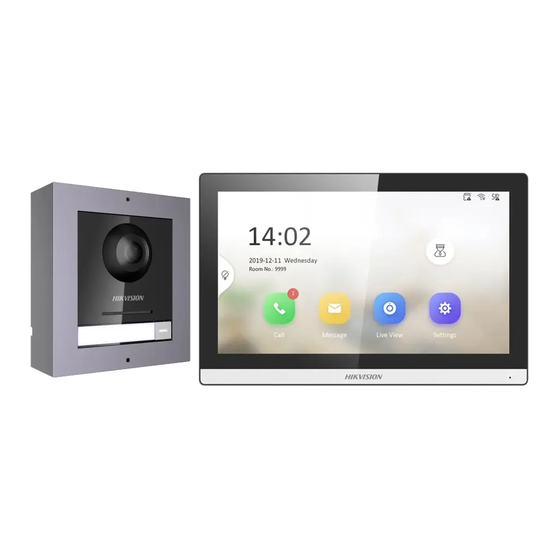

HIKVISION DS-KH6350-WTE1/Europe BV Configuration Manual

Network indoor station
Hide thumbs
Table of Contents

Advertisement

Quick Links

Network Indoor Station
Configuration Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-KH6350-WTE1/Europe BV and is the answer not in the manual?

Questions and answers

Related Manuals for HIKVISION DS-KH6350-WTE1/Europe BV

Summary of Contents for HIKVISION DS-KH6350-WTE1/Europe BV

  • Page 1 Network Indoor Station Configuration Guide...
  • Page 2 WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,...
  • Page 3 Network Indoor Station Configuration Guide CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS. YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET PROVIDES FOR INHERENT SECURITY RISKS, AND HIKVISION SHALL NOT TAKE ANY...
  • Page 4 Network Indoor Station Configuration Guide Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or Danger could result in death or serious injury. Indicates a potentially hazardous situation which, if not Caution avoided, could result in equipment damage, data loss,...
  • Page 5 Network Indoor Station Configuration Guide Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 6 Network Indoor Station Configuration Guide EU Conformity Statement This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the EMC Directive 2014/30/EU, RE Directive 2014/53/EU,the RoHS Directive 2011/ 65/EU 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the...
  • Page 7 Network Indoor Station Configuration Guide l'appareil ne doit pas produire de brouillage, et l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada.

  • Page 8: Table Of Contents

    Network Indoor Station Configuration Guide Contents 1 About this Manual ..................1 2 Local Operation ..................2 2.1 Quick Configuration Guide ................2 2.2 Basic Settings ....................5 2.2.1 Set Indoor Station Network Parameters ........... 6 2.2.2 Set Linked Device IP .................. 7 2.2.3 Set Indoor Station No.
  • Page 9 Network Indoor Station Configuration Guide 2.7.2 Maintenance ..................19 2.7.3 Preference ....................20 2.8 Device Information ..................20 2.9 Output Settings ....................21 3 Remote Operation via the Client Software ..........22 3.1 Activate Device Remotely ................22 3.2 Device Management ..................22 3.2.1 Add Video Intercom Devices ..............

  • Page 10: About This Manual

    Network Indoor Station Configuration Guide 1 About this Manual Get the manual and related software from or the official website (http:// www.hikvision.com). Product Model DS-KH6320-WTE1(B)/DS-KH6320- Network Indoor Station WTE1(B)UHK/DS-KH6320- WTE1(B)CKV/DS-KH6320- WTE1(B)UVS/DS-KH6320- WTE1(B)KVO/DS-KH6320- WTE1(B)HUN/DS-KH6320-WTE1(B)/DS- KH6320-LE1(B)/DS-KH6350-TE1/DS- KH6350-TE1/DS-KH6351-TE1/DS- KH6351-WTE1/DS-KH6360-TE1/DS- KH6360-WTE1 Scan the QR code to get the...

  • Page 11: Local Operation

    Network Indoor Station Configuration Guide 2 Local Operation 2.1 Quick Configuration Guide You can create a password for the device activation, and configure the device following the wizard. Steps 1. Activate the device. 1) Power on the device. It will enter the activation page. Figure 2-1 Activation Page 2) Create a password and confirm it.
  • Page 12 Network Indoor Station Configuration Guide system, changing the password monthly or weekly can better protect your product. After device activation, the wizard page will pop up. 2. Choose Language and tap Next. Or tap Skip to skip language settings. Figure 2-2 Language Settings 3.
  • Page 13 Network Indoor Station Configuration Guide Figure 2-3 Network Parameters 5. Configure the indoor station. - Select Device Type as Indoor Station. Set Floor No., Room No. and Registration Password. Configure Advanced Settings. You can enable Indoor Extension Settings to add indoor extensions. - Select Device Type as Indoor Extension.

  • Page 14: Basic Settings

    Network Indoor Station Configuration Guide 2) Slide the slider to edit verification code or use the activation password by default. 3) Tap Next. Note The function of the device varies according to different models. Refers to the actual device for detailed information. 7.

  • Page 15: Set Indoor Station Network Parameters

    Network Indoor Station Configuration Guide Basic settings is required before starting using the indoor station. It is necessary to set the indoor station network, room No., linked devices, device time display, and so 2.2.1 Set Indoor Station Network Parameters Network connection is mandatory for the use of the indoor station. Set the network parameters after activating the indoor station.

  • Page 16: Set Linked Device Ip

    Network Indoor Station Configuration Guide 2.2.2 Set Linked Device IP Linked network parameters refers to the network parameters of devices (like door station, doorphone, main station, center, etc.), to which the indoor station is linked. Linked devices for the indoor station refers to door station, center, main station, and doorphone.

  • Page 17: Set Indoor Station No

    Network Indoor Station Configuration Guide to edit the IP address of door station. 5. Select the device to link. Edit the network parameters. 6. Set the IP address for SIP Server, Platform IP, Main Station and Main Doorphone. 2.2.3 Set Indoor Station No. Indoor station No.

  • Page 18: Add Camera

    Network Indoor Station Configuration Guide 2) Create a new SIP register registration password and confirm the password. 3) Tap OK. 4. Select Stream Transmission Mode as Unitcast or Multicast. 5. Optional: Enable standard SIP. 1) Enable Enable Standard SIP. 2) Tap VOIP Account Settings and configure the account information, including the user name, the phone number, the registered user name, the password, the domain, the port No., and the expiration date.
  • Page 19 Network Indoor Station Configuration Guide Before You Start Tap Settings → → Shortcut Settings , and enable Alarm. Steps Note Arming status page and zone settings page are hidden by default. You should enable alarm function first. 1. Tap Settings → →...
  • Page 20 Network Indoor Station Configuration Guide Both the entering delay duration and the exiting delay duration are from 30s to ● 60s. For Gas Detector and Smoke Detector, the alarm type is set as default 24h ● alarm. The alarm type of them can not be changed. Arming Mode Settings 4 arming modes can be configured: stay mode, away mode, sleeping mode and custom mode.

  • Page 21: Password Settings

    Network Indoor Station Configuration Guide Note Zones are configurable on the arming mode page. ● 24H alarm zone including smoke detector zone and gas detector zone will be ● triggered even if they are disabled. Arming mode settings should be configured with the settings of arming status ●...

  • Page 22: Modify Arm/Disarm Password

    Network Indoor Station Configuration Guide Note Make sure the device has added to the Hik-Connect account. 1) Download Hik-Connect app. 2) Go to More → Reset Device Password . 3) Scan the QR code on the device and a verification code will be popped up. 4) Enter the verification code on the device page.

  • Page 23: Modify Unlock/Duress Code

    Network Indoor Station Configuration Guide 3. When you slide to disable Scene Password, there is no needs to enter password during scene mode switching. 2.3.3 Modify Unlock/Duress Code You can create and edit the duress code and unlock password of the indoor station. Steps 1.

  • Page 24: Synchronize Time

    Network Indoor Station Configuration Guide 2.4 Synchronize Time Steps 1. Tap Settings → → Time and Date to enter the time synchronization page. 2. Tap Date Format and Time Format to set the time format. 3. Optional: Tap Time to set time manually. 4.
  • Page 25 Network Indoor Station Configuration Guide You can set the ringtone, ring duration, call forwarding time on call settings page. Steps 1. Tap Settings → to enter the call settings page. Figure 2-11 Call Settings 2. Set corresponding parameters. Ringtone There are 3 ringtones by default, and you can custom and import at most 4 ringtones via Batch Configuration Tool or iVMS-4200 Client Software.

  • Page 26: Volume Settings

    Network Indoor Station Configuration Guide 2.5.2 Volume Settings Set the microphone volume, prompt sound volume, call volume, and enable touch sound. Steps 1. Tap Settings → → Volume Settings to enter the volume settings page. 2. Set the microphone volume, prompt sound volume, and the call volume. You can also enable Touch Sound to turn on the key sound.

  • Page 27: General Settings

    Network Indoor Station Configuration Guide 2.7.1 General Settings You can format or install TF card, clean the screen, set system language and adjust the screen brightness on this page. Tap Settings → to enter the general settings page. Figure 2-13 General Settings Page Password You can manage your arm/disarm password and scene password.

  • Page 28: Maintenance

    Network Indoor Station Configuration Guide Tap + or - to adjust the screen brightness. Clean Screen Enable Clear Screen and the screen will be locked for 30s. And you can clear the screen within the time duration. Note After enabling Clear Screen function, press and hold the Unlock key to exit the ●...

  • Page 29: Preference

    Network Indoor Station Configuration Guide Tap Wizard and set the language, password reset method, network parameters, indoor station parameters, platform service, and related device. For details, refer to Quick Configuration Guide. Security Settings Tap Security Settings and set the email address or security questions for password reset.

  • Page 30: Output Settings

    Network Indoor Station Configuration Guide Steps 1. Tap Settings → → Device Information to enter the Device Information page. 2. View the device version, model, and serial No. 2.9 Output Settings You can set and control the connected output devices via the output settings page. You can change the relay' name, and open duration.

  • Page 31: Remote Operation Via The Client Software

    Network Indoor Station Configuration Guide 3 Remote Operation via the Client Software The Video Intercom module provides remote control and configuration on video intercom products via the iVMS-4200 client software. 3.1 Activate Device Remotely You can only configure and operate the indoor station after creating a password for the device activation.

  • Page 32: Add Video Intercom Devices

    Network Indoor Station Configuration Guide After running the iVMS-4200, video intercom devices should be added to the client software for remote configuration and management. 3.2.1 Add Video Intercom Devices Steps Note You can add at most 512 indoor stations and main stations in total to the client, ●...
  • Page 33 Network Indoor Station Configuration Guide Figure 3-1 Add the Device 4. Optional: Click Online Device, the active online devices in the same local subnet with the client software will be displayed on the Online Device area. Note To add online devices to the software, you are required to change the device IP address to the same subnet with your computer first.

  • Page 34: Modify Network Information

    Network Indoor Station Configuration Guide Edit a name for the device as you want. Address Input the device's IP address. The IP address of the device is obtained automatically in this adding mode. Port Input the device port No. The default value is 8000. User Name Input the device user name.

  • Page 35: System Configuration

    Network Indoor Station Configuration Guide 3.3 System Configuration You can configure the video intercom parameters accordingly. Steps 1. Click Maintenance and Management → System Configuration → ACS & Video Intercom to enter the system configuration page. 2. Enter the required information. Ringtone Click ...
  • Page 36 Network Indoor Station Configuration Guide Device Information Click Device Information to enter device basic information page. You can view basic information (the device type, and serial No.), and version information of the device. Figure 3-2 Device Information General Click General to enter device general parameters settings page. You can view and edit the device name and device ID, and select overwrite record file.
  • Page 37 Network Indoor Station Configuration Guide Figure 3-4 Time Settings Page Select Time Zone, Enable NTP, Enable DST, or SDK Synchronization. Click Save to save the time settings. Time Zone: Select a time zone from the drop-down list menu. ● NTP: Click Enable NTP, and enter the server address, NTP port, and ●...
  • Page 38 Network Indoor Station Configuration Guide Figure 3-5 System Maintenance Reboot: Click Reboot and the system reboot dialog box pops up. Click Yes ● to reboot the system. Restore Default Settings: Click Restore Default Settings to restore the ● default parameters. All default settings, excluding network parameters, will be restored.
  • Page 39 Network Indoor Station Configuration Guide Remote Upgrade: Click ... to select the upgrade file and click Upgrade to ● remote upgrade the device. The process of remote upgrade will be displayed in the process bar. Language: Select a language, and click Save to change the device system ●...
  • Page 40 Network Indoor Station Configuration Guide Note The new password and confirm password should be identical. ● After editing the password of device, click refresh button from the device ● list, the added device will not be there. You should add the device again with new password to operate the remote configuration.

  • Page 41: Video Intercom

    Network Indoor Station Configuration Guide Figure 3-8 Security 3.4.2 Video Intercom Click Video Intercom on the remote configuration page to enter the video intercom parameters settings: Time Parameters, Password, Zone Configuration, IP Camera Information, Volume Input and Output Configuration, Ring, Arming Information, Calling Linkage, Relay, and SIP No.
  • Page 42 Network Indoor Station Configuration Guide 2. Configure the calling duration, live view duration, call forwarding time, and the ringtone duration. 3. Click Save. Note Calling duration is the maximum duration of indoor station when it is called ● without being received. The range of maximum ring duration varies from 30s to 60s.
  • Page 43 Network Indoor Station Configuration Guide Steps 1. Click Zone Alarm to enter the zone settings page. Figure 3-11 Zone Alarm 2. Select Area No. 3. Select Zone Type from the drop-down list. 4. Select Alarm Type from the drop-down list. 5.
  • Page 44 Network Indoor Station Configuration Guide disarming mode, it will not receive alarm message when the detector is triggered. When the zone type is set to be 24H Alarm, the indoor station will receive ● alarm message when the detector is triggered no matter it is under arming mode or disarming mode.
  • Page 45 Network Indoor Station Configuration Guide Note Indoor extension does not support this function. Export and Import Added Device Information Steps 1. Click Export to export the added device information file. 2. Edit parameters of added devices in batch in the exported file. 3.
  • Page 46 Network Indoor Station Configuration Guide Figure 3-14 Volume Input or Output 2. Slide the slider to adjust the input volume, output volume and speak volume. 3. Click Save to enable the settings. Ring Import Steps 1. Click Ring Import to enter the ring configuration page. Figure 3-15 Ring Import 2.
  • Page 47 Network Indoor Station Configuration Guide Click Arming Information to enter the configuring arming informaton page and view the arming information. Figure 3-16 Arming Information Click Refresh to refresh the arming information. Relay Some indoor station devices support this function. Click Relay to enter the set relay parameters page. Select a relay and click "...
  • Page 48 Network Indoor Station Configuration Guide Figure 3-18 Add SIP Info 3. Select Device Type as Indoor Extension. 4. Enter the required information. Serial No. Enter the device's serial No.. The serial No. is on the rear panel of the device (A fixed-length number with 9 digits).

  • Page 49: Network

    Network Indoor Station Configuration Guide Subnet Mask Enter the device's subnet mask. Password Enter the device password, ranging from 8 to 16 characters in length. Enter the device No., ranging from 1 to 5. 5. Click Save to enable the settings. 6.
  • Page 50 Network Indoor Station Configuration Guide Note The default port No. is 8000. ● After editing the local network parameters of device, you should add the ● devices to the device list again. SIP Server Configuration Steps 1. Click SIP Server Configuration to enter the configuring the SIP parameters page. Figure 3-20 SIP Server Configuration 2.
  • Page 51 Network Indoor Station Configuration Guide 4. Click Save to enable the settings. DNS Settings The indoor station supports 2 DNS address. Click Advanced Settings to enter DNS address settings page. Edit the IP address and click Save. Figure 3-21 DNS Settings Configure Mobile Client Connection Configure Hik-Connect server parameters before viewing videos via mobile client.

  • Page 52: Person Management

    Network Indoor Station Configuration Guide Group Network Settings Click Group Network Settings to enter the group network settings page. Figure 3-22 Group Network Settings Device No. Settings Select the device type from the drop-down list, and set the corresponding information. Note Device type can be set as indoor station or indoor extension.

  • Page 53: Organization Management

    Network Indoor Station Configuration Guide You can add, edit, and delete the organization and person in Person Management module. Organization and person management is necessary for the video intercom function. On the main page, click Person to enter the page. Figure 3-23 Personal Management Application The page is divided into two parts: Organization Management and Person Management.

  • Page 54: Person Management

    Network Indoor Station Configuration Guide 2. Input the organization name as desired. 3. You can add multiple levels of organizations according to the actual needs. 1) You can add multiple levels of organizations according to the actual needs. 2) Then the added organization will be the sub-organization of the upper-level organization.
  • Page 55 Network Indoor Station Configuration Guide Note The Person ID will be generated automatically and is editable. 2. Set basic person information. 1) Enter basic information: name, tel, birthday details, effective period and email address. 2) Optional: Click Add Face to upload the photo. Note The picture should be in *.jpg format.
  • Page 56 Network Indoor Station Configuration Guide Steps 1. Exporting Person: You can export the added persons' information in Excel format to the local PC. 1) After adding the person, you can click Export Person to pop up the following dialog. 2) Click ... to select the path of saving the exported Excel file. 3) Check the checkboxes to select the person information to export.
  • Page 57 Network Indoor Station Configuration Guide Note The person information, including person details, person's fingerprint ● information (if configured), and the linked card (if configured), will be imported to the selected organization. If the person name stored in the device is empty, the person name will be filled ●...

  • Page 58: Communication Matrix And Device Command

    A. Communication Matrix and Device Command Communication Matrix Scan the following QR code to get the device communication matrix. Note that the matrix contains all communication ports of Hikvision access control and video intercom devices. Figure A-1 QR Code of Communication Matrix Device Command Scan the following QR code to get the device common serial port commands.
  • Page 59 UD26876B...
