DS-KH9510-WTE1

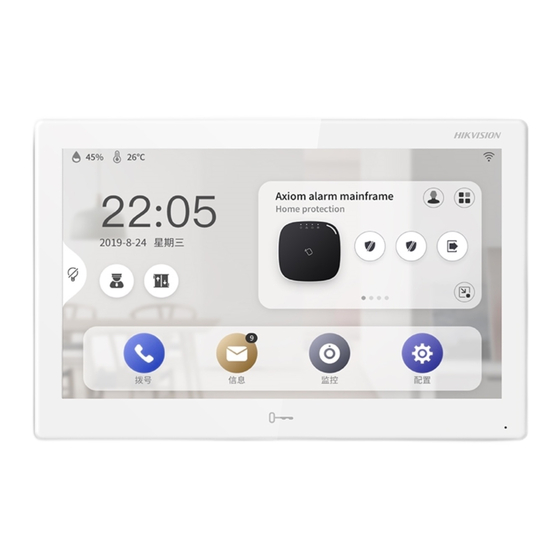

Video Intercom Indoor Station
Configuration Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-KH9510-WTE1 and is the answer not in the manual?

Questions and answers

Related Manuals for HIKVISION DS-KH9510-WTE1

Summary of Contents for HIKVISION DS-KH9510-WTE1

  • Page 1 DS-KH9510-WTE1 Video Intercom Indoor Station Configuration Guide...
  • Page 2 INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.
  • Page 3 DS-KH9510-WTE1 Video Intercom Indoor Station Configuration Guide Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could result in death or Danger serious injury.

  • Page 4: Table Of Contents

    DS-KH9510-WTE1 Video Intercom Indoor Station Configuration Guide Contents 1 Local Operation ............................. 5 Activate Indoor Station .......................... 5 Configuration Settings ........................... 5 1.2.1 Set Indoor Station Network Parameters ..................5 1.2.2 Set Linked Device IP ........................6 1.2.3 Set Indoor Station No........................7 1.2.4 Add Camera ..........................

  • Page 5: Local Operation

    DS-KH9510-WTE1 Video Intercom Indoor Station Configuration Guide Local Operation Activate Indoor Station You can configure and operate the indoor station only after creating a password for the device activation. Steps 1. Power on the device. It will enter the activation page automatically.

  • Page 6: Set Linked Device Ip

    DS-KH9510-WTE1 Video Intercom Indoor Station Configuration Guide Figure 1, Network Settings 2. Enable DHCP, then the indoor station can search and get an IP address automatically. NOTE: Skip the following steps if you have enabled DHCP. 3. Set the Local IP, Subnet Mask, and Gateway manually.

  • Page 7: Set Indoor Station No

    DS-KH9510-WTE1 Video Intercom Indoor Station Configuration Guide Figure 3, Device Information • Restore the Door Station via Indoor Station: Tap to restore the parameters of the door station. • Modify the IP Address of the Linked Door Station: Tap to modify the IP address of door station.

  • Page 8: Add Camera

    DS-KH9510-WTE1 Video Intercom Indoor Station Configuration Guide Extension No. 1.2.4 Add Camera Steps 1. Tap Settings → → Configuration → to enter the device management page. NOTE: Default admin password is the activation password. 2. Tap + to pop up the dialog box.
  • Page 9 DS-KH9510-WTE1 Video Intercom Indoor Station Configuration Guide Figure 6, Zone Settings 2. Press a zone to pop up the zone editing dialogue box. 3. Set the zone type, alarm type, status of arming status, entering delay, and exiting delay. 4. Tap OK to save the settings.

  • Page 10: Password Settings

    DS-KH9510-WTE1 Video Intercom Indoor Station Configuration Guide Figure 7, Arming Mode Settings 3. Arm the selected zone. Zones are configurable on the arming mode page. • 24H alarm zone including smoke detector zone and gas detector zone will be triggered even if •...

  • Page 11: Synchronize Time

    DS-KH9510-WTE1 Video Intercom Indoor Station Configuration Guide NOTE: Arm or disarm the zone for the indoor station by entering the arm/disarm password. Arm/Disarm settings page is hidden by default. Tap Settings → → Shortcut Settings to enable Zone Alarm Locally, you can edit the alarm parameters.

  • Page 12: Sound Settings

    DS-KH9510-WTE1 Video Intercom Indoor Station Configuration Guide Sound Settings You can set the ringtone, ring duration, call forwarding time, volume of microphone and loudspeaker and enable/disable touch sound on call settings page. Steps 1. Tap Settings → to enter the call settings page.

  • Page 13: System Settings

    DS-KH9510-WTE1 Video Intercom Indoor Station Configuration Guide Figure 11, Restore Default Settings 2. Tap Restore Default Settings to restore the default settings and reboot the system. 3. Tap Restore All to restore all parameters and reboot the system. System Settings Language: Tap Settings →...

  • Page 14: Link To The Mobile Client

    DS-KH9510-WTE1 Video Intercom Indoor Station Configuration Guide Link to the Mobile Client Steps 1. Tap Settings → Cloud Service to enter the settings page. 2. Enable Cloud Service. 3. Edit LBS server and Verification Code. NOTE: Verification code is used to add the device to mobile client.

  • Page 15: Device Management

    DS-KH9510-WTE1 Video Intercom Indoor Station Configuration Guide • Default User Name: admin. Steps 1. Run the client software, enter Device Management, check the Online Device area. 2. Select an inactivated device and click Activate. 3. Create a password, and confirm the password.
  • Page 16 DS-KH9510-WTE1 Video Intercom Indoor Station Configuration Guide Figure 13, Add the Device 8. Optional: Click Online Device, the active online devices in the same local subnet with the client software will be displayed on the Online Device area. To add online devices to the software, you are required to change the device IP address to the same subnet with your computer first.

  • Page 17: Modify Network Information

    DS-KH9510-WTE1 Video Intercom Indoor Station Configuration Guide input the required information, the device channel number, and alarm input number, and then click Add. When the offline device comes online, the software will connect automatically. Add Multiple Online Devices: To add multiple online devices to the client software, click and hold •...
  • Page 18 DS-KH9510-WTE1 Video Intercom Indoor Station Configuration Guide Click System on the remote configuration page to display the device information: Device Information, General, Time, System Maintenance, User, and RS-485. • Device Information: Click Device Information to enter device basic information page. You can view basic information (device type and serial no.) and version information of the device.
  • Page 19 DS-KH9510-WTE1 Video Intercom Indoor Station Configuration Guide ­ Time Zone Select a time zone from the drop-down list. > Click Synchronization. > ­ Check the Enable NTP checkbox to enable NTP. > Enter the server address, NTP port, and synchronization interval.
  • Page 20 DS-KH9510-WTE1 Video Intercom Indoor Station Configuration Guide and the device will reboot automatically. 6. Click Export Configuration File and the export file window pops up. Select the saving path of remote configuration files and click Save to export the configuration file.

  • Page 21: Video Intercom

    DS-KH9510-WTE1 Video Intercom Indoor Station Configuration Guide Figure 19, RS-485 Settings NOTE: For indoor station and master station, there are three choices for the working mode: transparent channel, disable, and custom. 2.4.2 Video Intercom Click Video Intercom on the remote configuration page to enter the video intercom parameters settings: Device Number Configuration, Time Parameters, Password, Zone Configuration, IP Camera Information, Volume Input and Output Configuration, etc.
  • Page 22 DS-KH9510-WTE1 Video Intercom Indoor Station Configuration Guide Permission Password 1. Click Permission Password to enter password changing page. Figure 21, Permission Password 2. For indoor station, you can change the admin password, arm/disarm password, unlock password and duress code. 3. For indoor extension, only admin password and arm/disarm password need to be configured.
  • Page 23 DS-KH9510-WTE1 Video Intercom Indoor Station Configuration Guide will receive alarm message when the detector is triggered. Under disarming mode, it will not receive alarm message when the detector is triggered. When the zone type is set to be 24H Alarm, the indoor station will receive alarm message when the detector is triggered no matter it is under arming mode or disarming mode.
  • Page 24 DS-KH9510-WTE1 Video Intercom Indoor Station Configuration Guide Figure 24, Import Added Device Information Volume Input and Output Steps 1. Click Volume Input/Output to enter the volume input and output page. Figure 25, Volume Input and Output 2. Slide the slider to adjust the volume input, volume output and talk volume.
  • Page 25 DS-KH9510-WTE1 Video Intercom Indoor Station Configuration Guide Up to four rings can be added. Deploy Info Click Deploy Info, you can get the deploy information. Figure 27, Deploy Info Incoming Call Linkage Steps 1. Click Incoming Call Linkage to enter configuration the page.

  • Page 26: Network

    DS-KH9510-WTE1 Video Intercom Indoor Station Configuration Guide The Third-Party APP Settings View the App information in the list and add/delete the App remotely. Steps 1. Click App Information List to enter the settings page. 2. Click Add, enter the URL to get the package.
  • Page 27 DS-KH9510-WTE1 Video Intercom Indoor Station Configuration Guide Figure 30, Local Network Configuration 2. Enter the local IP address, subnet mask, gateway address, and port no. 3. Click Save to enable the settings. NOTE: The default port no. is 8000. After editing the device’s local network parameters, you must add the devices to the device list again.
  • Page 28 DS-KH9510-WTE1 Video Intercom Indoor Station Configuration Guide Figure 32, DNS Settings Configure Mobile Client Connection Configure Hik-Connect server parameters before viewing videos via mobile client. Before You Start Make sure the indoor station connects to the network. Steps 1. Click Hik-Connect to enter configuration page.

  • Page 29: Person And Card Management

    DS-KH9510-WTE1 Video Intercom Indoor Station Configuration Guide 4. Enter the master station IP address, (main) door station IP address, SIP server IP address, management center IP address, and doorphone IP address. 5. Select the main door station type from the drop-down list.

  • Page 30: Person Management

    DS-KH9510-WTE1 Video Intercom Indoor Station Configuration Guide Add Organization Steps 1. In the organization list on the left, click +Add. 2. Input the organization name as desired. 3. You can add multiple levels of organizations according to the actual needs.
  • Page 31 DS-KH9510-WTE1 Video Intercom Indoor Station Configuration Guide • Click Take Phone: Take the person’s photo with the PC camera. • Click Remote Collection: Issue the card for the person. Click Credential → Card • 1) Take the person’s photo with the collection device.

  • Page 32: Communication Matrix And Device Command

    3. Click OK to save the settings. Communication Matrix and Device Command Communication Matrix Scan the following QR code to get the device communication matrix. NOTE: The matrix contains all Hikvision access control and video intercom communication ports. CG DS-KH9510-WTE1 Video Intercom 031621NA...
  • Page 33 Device Command Scan the following QR code to get the device common serial port commands. NOTE: The command list contains all commonly used serial ports commands for all Hikvision access control and video intercom devices. Figure 36, Device Command CG DS-KH9510-WTE1 Video Intercom 031621NA...
