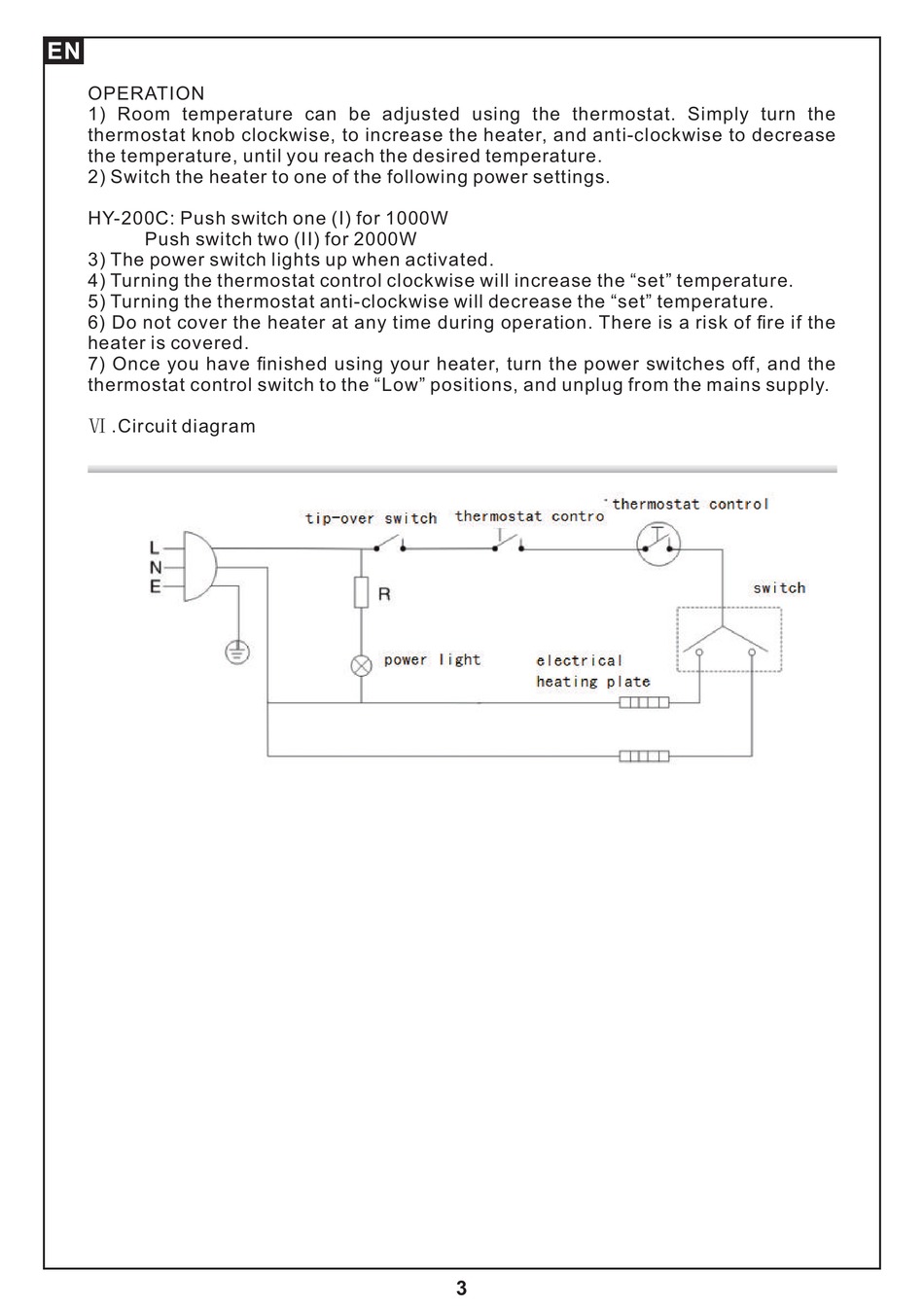

OPERATION

1) Room temperature can be adjusted using the thermostat. Simply turn the
thermostat knob clockwise, to increase the heater, and anti-clockwise to decrease
the temperature, until you reach the desired temperature.
2) Switch the heater to one of the following power settings.
HY-200C: Push switch one (I) for 1000W
Push switch two (II) for 2000W
3) The power switch lights up when activated.
4) Turning the thermostat control clockwise will increase the "set" temperature.
5) Turning the thermostat anti-clockwise will decrease the "set" temperature.
6) Do not cover the heater at any time during operation. There is a risk of fire if the
heater is covered.
7) Once you have finished using your heater, turn the power switches off, and the
thermostat control switch to the "Low" positions, and unplug from the mains supply.
Ⅵ .Circuit diagram
