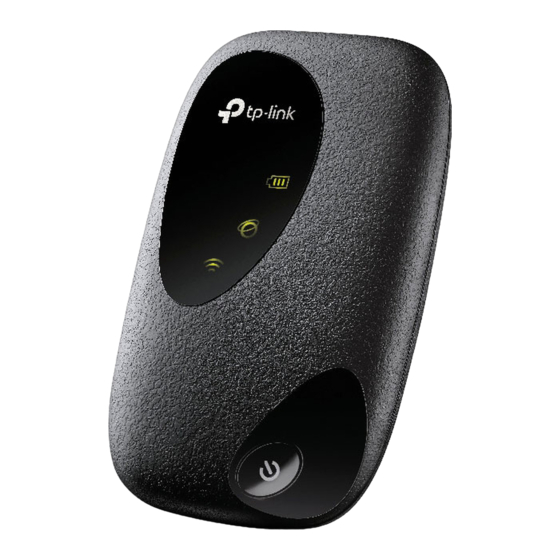

TP-Link M7000 v2 Quick Installation Manual

Quick Installation Guide
Mobile Wi-Fi
* Images are for demonstration only.
©2023 TP-Link 7106510263 REV2.0.0
LED Indicators
LED Status Explanation
On/Off Wi-Fi is enabled or disabled.
(Wi-Fi)
On/Off Internet service is available or unavailable.
(Internet)
Solid Green Mobile Wi-Fi has enough power or is fully charged.
Blinking Red The battery level is lower than 10%.
(Battery)
Blinking Green Mobile Wi-Fi is charging.
Off Power is off.
The LEDs will turn off automatically after idling for 30 seconds. To check the LED
!
status, press the Power button to turn them on again.
Charging Your Mobile Wi-Fi
Method 1 Method 2
Via a Wall Outlet (Recommended) Via a Computer
5V/1A
! · The Battery LED will be solid green when the Mobile Wi-Fi is fully charged.
· The power adapter is not provided by TP-Link.
FAQ (Frequently Asked Questions)
Q1. What should I do if I cannot access the internet (the Internet LED
up)?
A. Visit the web management page (http://tplinkmifi.net) on your phone, and check
the following:
· Check PIN status
If the current SIM card status is PIN Locked, your SIM card is PIN protected and
you need to unlock it using the PIN code provided by your mobile carrier.
· Verify the mobile carrier parameters
1. Go to Dial-up, tap View profile details, and verify that the parameters (i.e. APN,
username and password) provided by your mobile carrier are correct.
2. If the parameters are not correct, return to the Dial-up page and create a new
profile with the correct information.
· Check the Data Roaming settings
If your SIM card is operated in a roaming service area, go to Dial-up, enable Data
Roaming and tap Done.
· Check Mobile Data
Go to Dial-up to verify that Mobile Data is On. If not, enable it and tap Done.
1. Install the SIM Card and Battery
a. Remove the back cover.
SIM card requirement:
!
Standard
SIM card Provided Micro SIM card adapter + Provided sticker
2. Connect to the Internet
a. Press and hold the Power button
to power on the Mobile Wi-Fi.
· If you cannot access the internet, refer to FAQ > Q1.
!
· By default, Power Saving is enabled and the Mobile Wi-Fi will turn off Wi-Fi when no wireless devices are connected to it for 20 minutes.
To resume the Wi-Fi connection, press the Power button.
Managing Your Mobile Wi-Fi
Manage your Mobile Wi-Fi using the web management page. You can customize Wi-Fi settings, block Wi-Fi devices and more.
1. Connect your wireless device to the Mobile Wi-Fi. If it is a
computer, make sure it is set to obtain an IP address
automatically.
2. Launch a web browser and visit http://tplinkmifi.net or
http://192.168.0.1.
For technical support, user manuals and more information, please visit https://www.tp-link.com/support, or simply scan the QR code.
doesn't light Q2. How do I restore the Mobile Wi-Fi to its factory default settings?
A. With the Mobile Wi-Fi powered on, remove the cover, then use a pin to press and hold
the Reset button until all LEDs turn on momentarily.
Note: Restoring the device to its factory defaults will clear all your settings.
TP-Link hereby declares that the device is in compliance with the essential requirements and other
relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863.
The original EU Declaration of Conformity may be found at https://www.tp-link.com/support/ce/.
For TP-Link Branded Products Only. For the information about warranty period, policy and
procedures, please visit https://www.tp-link.com/support
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT
VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).
TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH
ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.
TP-Link warrants the TP-Link branded hardware product contained in the original packaging against
defects in materials and workmanship when used normally in according with TP-Link' s guidelines
for some period which depends on the local service from the date of original retail purchase by the
end-user purchaser.
b. Install your SIM card.
+ +
+ +
Micro SIM card + Nano SIM card +
Provided Nano SIM card adapter + Provided sticker
b. Connect your wireless device to the Mobile Wi-Fi using the
information or QR code on the provided Wi-Fi Info Card.
< Settings Wi-Fi
Wi-Fi
CHOOSE A NETWORK...
ALDI TALK_XXXX
Other...
c. Install the provided battery. d. Replace the cover.
1
2
Enjoy the internet!
Wi-Fi Info-Karte
SSID:
ALDI TALK_XXXX
Wi-Fi-Passwort:
QR-Code
XXXXXXXXXXXXXXXXXXXX
Router-Verwaltungsseite:
http://tplinkmifi.net
QR-Code scannen, um
Router-Passwort:
die Verbindung zum
XXXXXXXX Router herzustellen
*Incase your Wi-Fi Info Card is missing, you
can also find the default SSID on the product
label under the battery and find the
passwords on the label near the battery.
3. Log in with the Web Password on the provided Wi-Fi Info Card.
Wi-Fi Info-Karte
SSID:
ALDI TALK_XXXX
Wi-Fi-Passwort:
QR-Code
XXXXXXXXXXXXXXXXXXXX
Router-Verwaltungsseite:
http://tplinkmifi.net
QR-Code scannen, um
Router-Passwort:
die Verbindung zum
XXXXXXXX
Router herzustellen
Safety Information
· Keep the device away from water, fire, humidity or hot environments.
· Do not attempt to disassemble, repair, or modify the device. If you need service,
please contact us.
· Do not use the device where wireless devices are not allowed.
CAUTION!
· Avoid replacement of a battery with an incorrect type that can defeat a safeguard.
· Avoid disposal of a battery into fire or a hot oven, or mechanically crushing or
cutting of a battery, that can result in an explosion.
· Do not leave a battery in an extremely high temperature surrounding environment
that can result in an explosion or the leakage of flammable liquid or gas. Do not
leave a battery subjected to extremely low air pressure that may result in an
explosion or the leakage of flammable liquid or gas.
CAUTION!
· Risk of explosion if the battery is replaced by an incorrect type.
