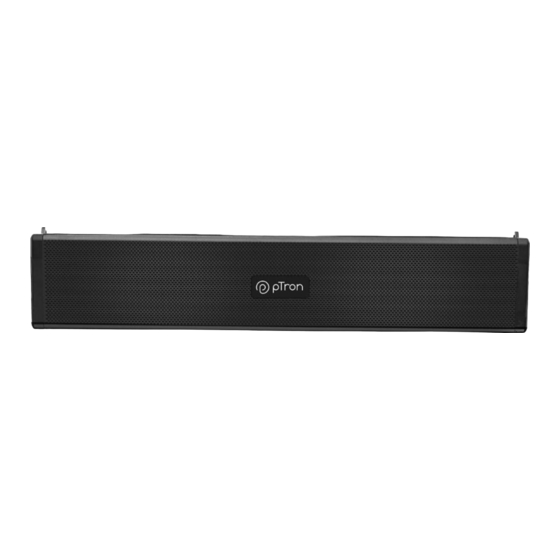

pTron Fusion Wave User Manual

Important : pTron ' Fusion Wave' speaker is set at 50% default volume. You can increase the volume through the
Speaker or through the connected device.
Getting Started & Charging:
i. Unbox the Party Speakers and remove all packaging materials.
Place the speakers on a flat surface.
ii.
iii. Connect the Micro USB cable to the charging port on the speaker's backside, and connect the USB end of the
Charging cable to a Power Source such as a USB Charger or other Charging Devices with a 5 volt output.
iv. Charge the speakers fully before initial use for the best battery performance.

Bluetooth Pairing:

i. Turn on the Party Speakers by long press the power button.
ii. The speaker will enter pairing mode automatically.
iii. On your smartphone or tablet, enable Bluetooth and search for nearby devices.
iv. When you see "pTron BT speaker" in the list of available devices, select it to pair.
v. Once the speaker is connected with the BT device it will respond with a voice prompt, "Connected"
Note: If no device is connected within 5 minutes after turning on the speaker, the Speaker will automatically turn off.

Basic Operation:

Power on/off: Turn on/off the Party Speakers by long press the power button.
i.
ii. Volume control: Long press the "+" button to increase the sound and long press the "-" to decrease the sound.
iii. Play/Pause: Press the play/pause button to start or pause audio playback.
Next/Previous track: Use the (single press) "+" & "-" buttons to move to the next & previous track when playing
iv.
music.
v. M Button : Use the (single press) the power button to change the speaker mode.
Note: The speaker will automatically detect the TF card, USB drive, or auxiliary cable after inserting these devices.

Wired Connection:

i. To use a wired connection, connect one end of the 3.5mm audio cable to the AUX IN port on the back of the
speakers.
ii.
Connect the other end of the audio cable to the headphone jack of your audio source (phone, tablet, computer,
etc.).
Fusion Wave BT Speaker - User Guide
