pTron Fusion Stage User Manual

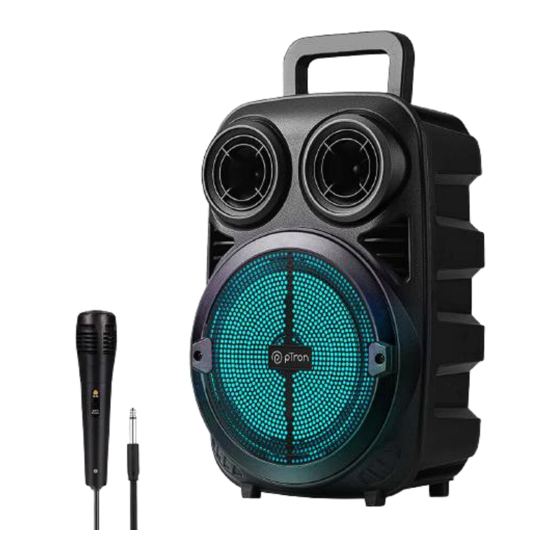

Fusion Stage Bluetooth Speaker - User Guide
Caution: pTron 'Fusion Stage' is set at 50% default volume. Please adjust the volume through the key panel
on speaker or thru the connected device.
Power On & Pairing
1. Power On the speaker by sliding the Power key towards the right side. You will see Blue LED light
blinking.
2. Open Bluetooth function on your Device and Search for the Available Bluetooth device.
3. Click on "pTron BT Speaker" to connect.

Power Off

To power off the speaker slide the Power key towards the left side.

Bluetooth Connectivity - Automatic

Just Turn On the Speaker. It will Automatically Connect to the Last Connected Device.
Note: The last connected device must be turned on, Bluetooth function must be active and both the devices
must within 10 meters wireless range.

Wired Microphone Function

1. Plug the mic cable pin into the Mic port provided in the speaker.
2. For using the Mic, "Turn ON" the Mic by sliding the button upward provided in the Mic and to "Turn OFF"
the mic slide the button downward.
Modes: There are 5 modes
1. Bluetooth mode
2. Play by TF card
3. Play by USB Drive
4. AUX Mode
5. TWS Mode.
Note:
1. TF card mode will be active only when a TF card is inserted into the TF card port.
2. USB Drive mode will be active only when an USB drive is inserted into the USB drive port.

Aux Function

1. Just turn ON the speaker.
2. By default Bluetooth mode will open.
3. Connect the Aux cable with the speaker & the phone.
4. As you will connect the Aux cable, speaker will voice prompt Aux mode.
5. Now, you can use this function.
