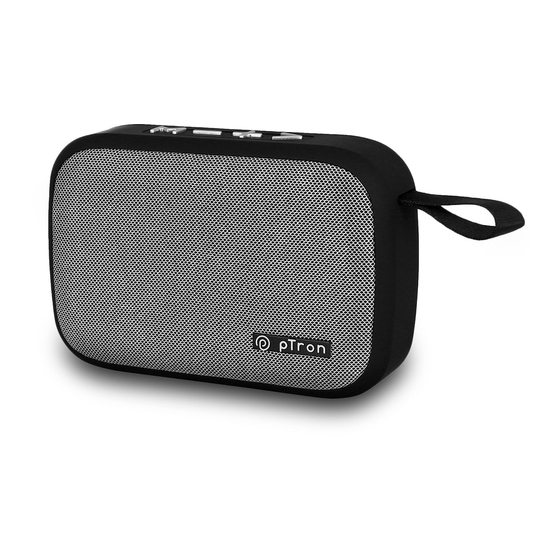

pTron Musicbot Lite Product Manual

Musicbot Lite Bluetooth Speaker - Product Manual
Important: pTron Musicbot Lite is set at 50% default volume. Please adjust the volume through the control panel
on the speaker.
Power On & Pairing
1. Power On the speaker by sliding the Power button towards the left side.
2. Open Bluetooth function on your Device and Search for the Available Bluetooth devices.
3. Click on "pTron BT Speaker' to connect.

Power Off

Power Off the speaker by sliding the Power button towards the right side.

Bluetooth Connectivity - Automatic

Just Turn On the Speaker. It will Automatically Connect to the Last Connected Device.
Note: The last connected device must be in 10 meters wireless range and Bluetooth function must be On.

Use TF Card

Insert a TF card into the slot to activate the TF card mode.

Use USB Drive

Insert a USB stick or pen drive into the slot to activate the USB drive mode.
Call & Music Functions
Answer/Hangup a Phone Call: Press MFB (>) Once
Reject a Phone Call: Press MFB (>) for 2 seconds
Music Play/Pause: Press MFB (>) once
Next Song: Press "+" button once
Previous Song: Press "-" button once
Volume Up: Long Press "+" key
Volume Down: Long Press "-" key
Re-dial: Press MFB (>) twice in standby mode
">" Multi-function Button (MFB)
"+" Volume Up & Next Song
"-" Volume Down & Previous Song
