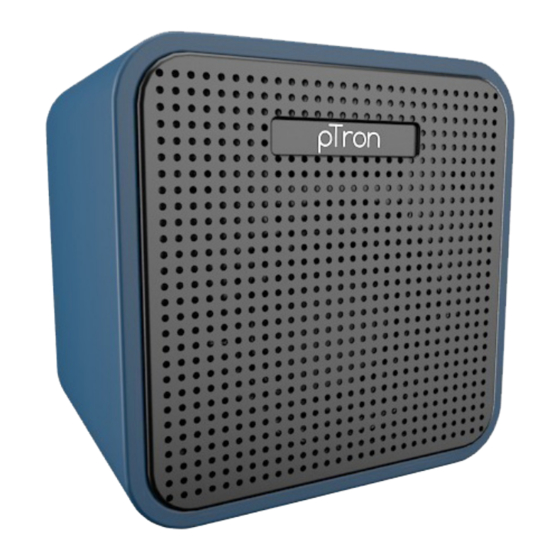

pTron Musicbot CUBE User Manual

Alexa built-in portable smart speaker
Hide thumbs Also See for Musicbot CUBE:
Table of Contents

Advertisement

Quick Links

Download this manual

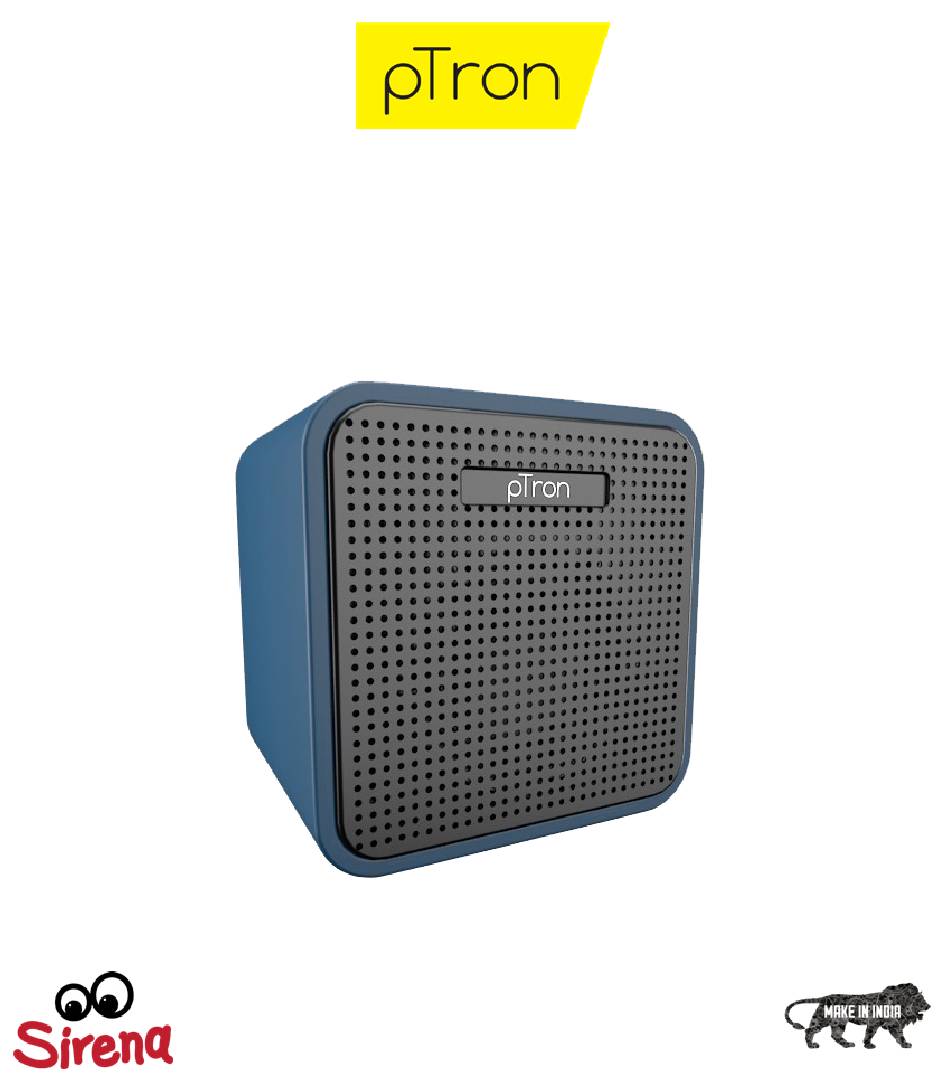

pTron Musicbot CUBE
Alexa Built-in Portable Smart Speaker
User Manual
Powered by

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Musicbot CUBE and is the answer not in the manual?

Questions and answers

Related Manuals for pTron Musicbot CUBE

Summary of Contents for pTron Musicbot CUBE

  • Page 1 Musicbot CUBE Alexa Built-in Portable Smart Speaker User Manual Powered by...

  • Page 2: Table Of Contents

    Table of Contents Know Your Device In The Box Button Functionality & LED Indication LED Status Product Specification Bluetooth Operation AUX Output Charging Procedure Environmental Information Tips...

  • Page 3: Know Your Device

    Know Your Device Volume Up / Bluetooth Power ON/OFF Push-to-talk / Wi-Fi Mute-Unmute Mic / Factory Reset Volume Down Micro USB AUX Out Reset Charging LED In The Box Alexa Smart Speaker 3W Aux Cable 5V/1A Adapter & USB Cable User Manual Warranty Card Device Configuration Manual...

  • Page 4: Button Functionality & Led Indication

    Button Functionality & LED Indication STATE BUTTON Power ON Long press Turns Red, release the for 4 seconds button Power OFF Long press Turns Red, release the for 4 seconds button Volume Up Short press No Indication Volume Down Short press No Indication Mute Mic Short press...

  • Page 5: Led Status

    LED Status STATE Ready/Idle State No Indication Listening Cyan Thinking Cyan and Blue - Alternating Speaking Cyan and Blue - Pulsing Notification Arrives Yellow - Burst Notification Queued Yellow - Slow Pulse Do Not Disturb Purple Microphones Mute Firmware Update Solid Magenta Wi-Fi Connecting White - blink...

  • Page 6: Product Specification

    Product Specification PARAMETERS SPECIFICATIONS Bluetooth Version Wi-Fi Standard 802.11 b/g/n (802.11n up to 75 Mbps) Rated Output Power (RMS) Distortion <1% ≥80dB Frequency Response 40 Hz to 16 kHz No. of Mics Battery Capacity 2600 mAh Play Time Upto 6 Hours @ 80% Volume Charging Time Upto 4 Hours Charging Input...

  • Page 7: Bluetooth Operation

    Bluetooth Operation How to Connect and Disconnect to Bluetooth when pTron Musicbot CUBE is not configured? 1. Power on the device. LED blinks in multiple color (Network Configuration Mode). 2. Long press the Mic/Bluetooth button for 3 seconds. 3. Release the button when the LED turns RED.
  • Page 8 How to Connect and Disconnect to Bluetooth when pTron Musicbot CUBE is configured to Wi-Fi Router? 1. Power on the device. 2. Say, Alexa, “Turn ON Bluetooth.” or Long press the for 3 seconds. 3. Release the button when the LED becomes RED.

  • Page 9: Aux Output

    Switch to AUX Output: Plug one end of the AUX connector to AUX out port of the pTron Musicbot CUBE and other end to the AUX input port of desired speaker. NOTE: In this mode, speaker output will be disabled.

  • Page 10: Charging Procedure

    Charging Procedure 1. If the device is in low battery, the Red color LED on top will blink continuously along with a voice prompt to notify the user. 2. Plug the Micro USB charging cable connected with a standard adapter to the charging port for charging. The backside LED will be ON and the top LED will blink in Red color once.

  • Page 11: Environmental Information

    Environmental Information (Correct disposal of this product as per E-waste Management and Handling Rules) This marking on the product, accessories or literature indicates that the product and its electronics accessories (e.g. charge, battery, cables, etc.) should not be disposed off with other household waste at the end of their working life.
  • Page 12 Do’s 1. Always drop your used electronic products, batteries and accessories after end of their life in nearest authorized collection point / center or hand over to authorized recycler for disposal. 2. Drop the discarded Electronics Equipment’s only in the bins meant for the Electronic Waste.

  • Page 13: Tips

    For more information on safe disposal and recycling, please write to us support@ptron.in This product is RoHS compliant Tips LOW BATTERY 1. In low battery state (Red Blinking), there won’t be any voice prompt or LED indication for the other functionalities.
  • Page 14 GENERAL INSTRUCTION 1. Don’t try to open the device forcibly, contact our Tips support for any help at support@ptron.in 2. If the device becomes non-responsive to key presses, press the Reset button through the pin hole. 3. If the speaker body loses its shine, simply wipe with a clean cloth, it would regain its shine.
