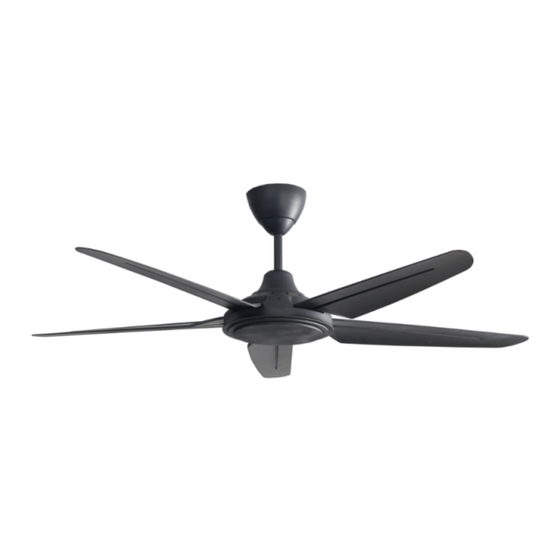

- Page 1 REDEFINE THE WAY OF LIFE 54'' RCF-NAUSCA54 SERIES RCF-NAUSCA54-5B MODEL / MODEL / 型号 RCF-NAUSCA54-5BL ( Light model )
- Page 2 CEILING FAN / KIPAS SILING / 吊扇 SUPPLIED PARTS / BAHAGIAN YANG DIBEKALKAN / 提供零件 QUANTITY PARTS QUANTITY PARTS KUANTITI KUANTITI BAHAGIAN BAHAGIAN 数量 数量 零件 零件 TOP CANOPY / SENGKUAP ATAS / 吊盅 LED PLATE / PLAT LED ( FOR LIGHT MODEL ) / 灯盘 HANGING TUBE C/W RUBBER WHEEL / LED / 光源...
- Page 3 WARNING TO ENSURE YOUR PERSONAL SAFETY, PLEASE READ THROUGH THE INSTRUCTION MANUAL BEFORE OPERATING THE PRODUCT. 1) Do not bend the blade during installation, blades balancing or fan cleaning. 2) To prevent accidents, power switch must be OFF and electrical wiring must be disconnected before ceiling fan installation, dismantling, maintenance or cleaning.
-
Page 4: Safety Guidelines
SAFETY GUIDELINES 1) Please do not install the ceiling fan at high humidity areas. 2) Distance between fan blades and ground must be at least 2.5 meter and above. 3) Do not touch the ceiling fan while it is operating. 4) For safety purposes, all electrical connections must conform to the national electrical safety codes and earth wire must be installed correctly ( suitable for power supply of 220-240VAC / 50Hz ). - Page 5 INSTALLATION PROCEDURES / TATACA RA PEMASANGAN / 安装步骤 STEP 1 ( Refer diagram 1 ) LANGKAH 1 ( Rujuk gambar 1 ) 步骤 1 ( 图 1 ) 1) Before installation, remove the rubber wheel and plastic plug from both side of the hanging tube. Sebelum pemasangan, keluarkan roda getah, plug plastic dan semua skru /bolt dari kedua-dua belah rod besi.
- Page 6 NON-LIGHT MODEL ( RCF-NAUSCA54-5B ) STEP 3 ( Refer diagram 3 ) Connect wiring by plug in connector into position. LANGKAH 3 ( Rujuk gambar 3 ) Sambungkan pendawaian dengan penyambung pasangkan ke kedudukannya. 步骤 3 （ 参见图 3 ） 通过插入连接器将电线连接到位。...
- Page 7 LIGHT MODEL ( RCF-NAUSCA54-5BL ) STEP 5 ( Installation Of Light LED ) LANGKAH 5 ( Pemasangan Lampu LED ) 步骤 5 （ 安装LED灯具 ） For Light Model a. Remove the 3 mounting screws of the light kit plate on the motor, install the light kit plate with LED assembly on the motor,and tighten the screws.
- Page 8 PRODUCT DIMENSION DIAGRAM / DIAGRAM DIMENSI PRODUK / 产品尺寸图...
- Page 9 RF TRANSMITTER / PEMANCAR RF / 射频发射器 Function of Transmitter / Fungsi Pemancar / 发射器功能 Front / Depan / 正面图 Battery cover 2x1.5V battery（AAA） Penutup bateri 1.5V电池 2颗 电池盖 This fan is operated using remote control. Kipas ini Back / Belakang / 背面 berfungsi dengan alat kawalan jauh.
- Page 10 Note – In the event of Transmitter ( Remote Control ) / Receiver cannot be control, please follow the “Remote Control Pairing Procedure” as below : 1. Insert 2 units of AAA battery into the remote control. 2. Switch on the ceiling fan ( Power Supply ). 3.
- Page 11 IMPORTANT / PERKARA PENTING / 重要事项 DO NOT CONNECT THIS CEILING FAN REMOTE CONTROL TO DIMMER SWITCH OR WALL REGULATOR. JANGAN SAMBUNGKAN KAWALAN JAUH KIPAS SILING INI KEPADA SUIS DIMMER ATAU PENGAWAL DINDING. 请勿将此吊扇遥控去连接至调光器开关或者墙壁调节器。 Ceiling fan must be hooked on concrete ceiling. Do not install the ceiling fan on plaster ceiling or any types of gypsum board ceilings, and all parts must be locked.
- Page 12 电机 W a r r a n t y FOR RECEIVER ONLY UNTUK ALAT PENERIMA SAHAJA 仅 限 于 遥 控 接 收 器 W a r r a n t y W a r r a n t y 质保...
