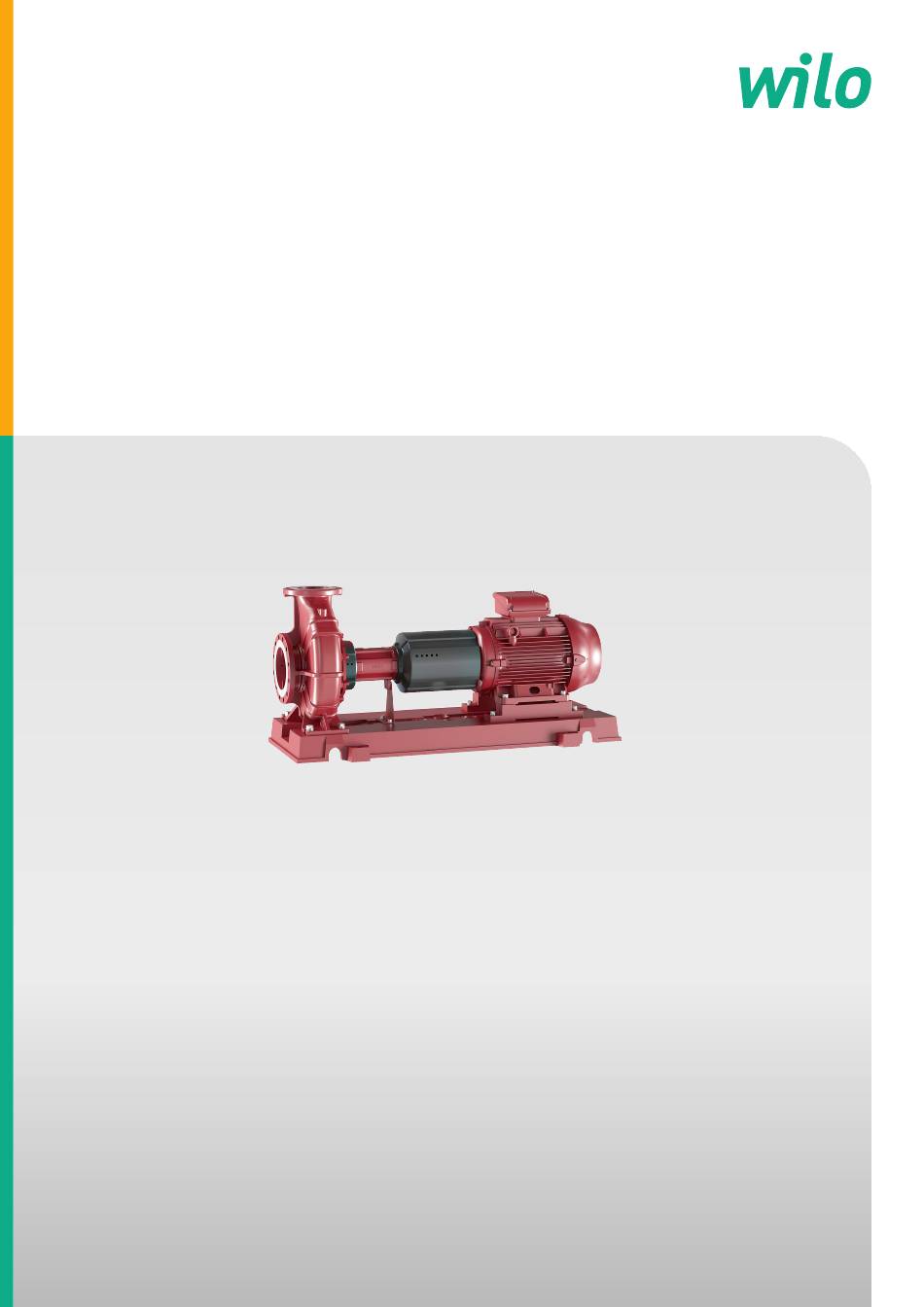

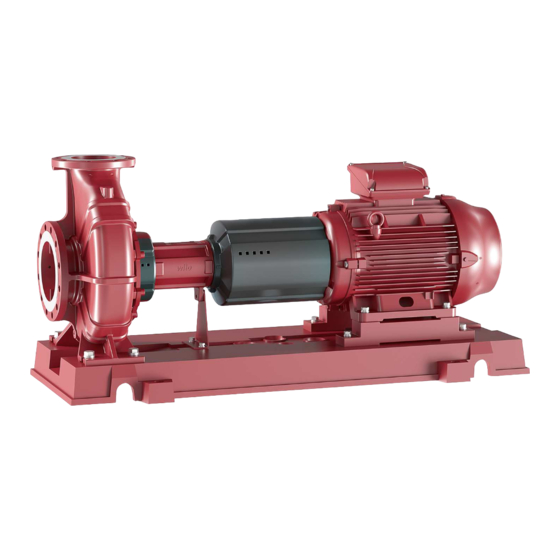

- Page 1 Pioneering for You Wilo-Atmos GIGA-NF en Installation and operating instructions · 4243597 • Ed.02/2022-02...
-
Page 3: Table Of Contents
6 Installation and electrical connection .......................... 16 Personnel qualifications.................................... 16 Operator responsibilities.................................... 16 Preparing the installation.................................... 16 Setting up the pump by itself (variant B, Wilo variant key) ........................ 17 Installing the pump unit on a base ................................ 17 Pipework........................................... 19 Aligning the unit...................................... 20 Electrical connection ...................................... - Page 4 11 Spare parts.................................... 36 11.1 Spare parts list ......................................... 37 12 Disposal.................................... 38 12.1 Oils and lubricants...................................... 38 12.2 Water-glycol mixture ..................................... 38 12.3 Protective clothing ...................................... 38 12.4 Information on the collection of used electrical and electronic products.................... 38 WILO SE 2022-02...
-
Page 5: General Information
Consequences of danger and instructions for avoidance. ƒ Safety instructions relating to property damage start with a signal word and are displayed without a symbol. CAUTION Type and source of the danger! Consequences or information. Installation and operating instructions Wilo-Atmos GIGA-NF... -
Page 6: Personnel Qualifications
Personal protective equipment: wear face mask Personal protective equipment: wear safety goggles Useful information Personnel qualifications Personnel must: ƒ Be instructed about locally applicable regulations governing accident prevention. ƒ Have read and understood the installation and operating instructions. WILO SE 2022-02... -
Page 7: Electrical Work
Clean the device thoroughly. Disinfect devices that use fluids hazardous to health! ƒ Make sure that there is no risk of explosion when carrying out any type of welding work or work with electrical devices. Installation and operating instructions Wilo-Atmos GIGA-NF... -
Page 8: During Operation
Observe local standards and regulations. Avoid pump leakages to protect persons and the environment against hazardous (explosive, toxic or hot) substances. Ensure that a dry run of the pump is not possible. A dry run can damage the shaft seal and thereby cause leakages. WILO SE 2022-02... -
Page 9: Maintenance Tasks
18 must be supervised by a technician. Application/use Intended use The glanded pumps in the Wilo-Atmos GIGA-NF series are intended for use as fire pumps in sprinkler systems. The pumps are only approved for the fluids specified in the “Technical data” section. -
Page 10: Operation With Frequency Converter
Product description Suitable Wilo control devices (e.g. Smart Control SC Fire) can control the power of the pumps continuously. This allows optimisation of the pump output for the demands of the installation and particularly economically reliable pump operation. 4.1.1 Hydraulics The pump consists of a radially divided spiral housing with exchangeable neck rings and cast-on pump support feet. -
Page 11: Type Key
Accessories have to be ordered separately. For a detailed list, consult the catalogue and spare parts documentation. Anticipated noise levels 4.7.1 Pump with three-phase motor, Motor power P [kW] Measuring surface sound-pressure level 50 Hz without speed control Lp, A [dB(A)] 2-pole (2900 rpm) 18.5 Installation and operating instructions Wilo-Atmos GIGA-NF... -
Page 12: Permissible Forces And Torques On The Pump Flanges
Σ Torques M Pressure port Fig. 2: Permissible forces and torques on the 1155 pump flanges – pump made of grey cast iron 1383 1050 1173 1838 1243 1120 1383 2170 1068 1575 1418 1750 2748 1278 Suction port 1155 WILO SE 2022-02... -
Page 13: Transportation And Storage
Loads must never be suspended for longer than necessary. Accelerations and braking during the lifting operation must be performed in a way that rules out any danger to people. Installation and operating instructions Wilo-Atmos GIGA-NF... - Page 14 • Do not use the transport lugs on the pump or motor to lift the entire unit. They are only meant for transporting the individual components during installation or dismantling. Only remove the outer packaging at the place of utilisation to ensure that the pump is not damaged during transport. WILO SE 2022-02...
-
Page 15: Storage
Ensure that no operating fluid leaks during storage. Wipe up drips immediately, e.g. place an oil mat underneath. Risk numbers: • Diesel fuel: R 40, R 65, R 66, R 51/53 • Battery acid: R 35 Installation and operating instructions Wilo-Atmos GIGA-NF... -
Page 16: Installation And Electrical Connection
Danger of personal injury and damage to property due to improper in- stallation! Observe the following fire protection standards/directives for the arrangement, in- stallation and operation of sprinkler pumps in fire-extinguishing systems: • VdS CEA 4001 • CEA 4001 • EN 12845 WILO SE 2022-02... -
Page 17: Setting Up The Pump By Itself (Variant B, Wilo Variant Key)
The base must be able to support the unit installed on the baseplate indefinitely. The base must be level to ensure there is no tension on the baseplate or unit. Wilo recom- mends using premium, non-shrink concrete of an adequate thickness for manufactur- ing. - Page 18 This allows the screws to be moved in order to achieve their final positions. Wilo recommends initially pouring the base up to about 25 mm below the planned height. The surface of the concrete base must be well contoured before curing. Remove the pipe sleeves after the concrete cures.
-
Page 19: Pipework
Remove the covers from the suction and discharge ports. ƒ If required, install a dirt filter upstream of the pump in the pipe on the suction side. ƒ Then connect the pipes to the pump connecting pieces. Installation and operating instructions Wilo-Atmos GIGA-NF... -
Page 20: Aligning The Unit
The radial deviation of the two coupling halves must not exceed the maximum val- ues found in table “Permissible tolerances of couplings for pumps with electric mo- tor or diesel motor”. This requirement applies to every operating status – including operating temperature and inlet pressure. WILO SE 2022-02... - Page 21 1040103 0.30 3 ... 4 46’ 1088119 0.30 3 ... 5 46’ 1088119 0.30 3 ... 5 46’ 1088119 0.30 3 ... 5 46’ Table 5: Permissible tolerances of the couplings (pumps with electric motor) Installation and operating instructions Wilo-Atmos GIGA-NF...
- Page 22 CAUTION Risk of damage due to vibrations! Incorrect alignment can lead to vibra- tions. Vibrations can damage or destroy individual components. • Carefully align the pump unit until all measurement results are within the per- missible range. WILO SE 2022-02...
-
Page 23: Electrical Connection
Fuse on mains side Circuit breaker The size and switching characteristics of the circuit breakers depend on the require- ments of the sprinkler system for firefighting and the rated current of the connected product. Observe local regulations. Installation and operating instructions Wilo-Atmos GIGA-NF... -
Page 24: Commissioning
The motors are equipped with condensate drainage holes, which are factory-sealed with plastic plugs. • Open the condensate drainage holes in the motor housing at regular intervals and drain the condensate. • Then reseal the condensate drainage holes with plastic plugs. WILO SE 2022-02... -
Page 25: Personnel Qualifications
Reinstall the coupling guard. Switching on the pump CAUTION Risk of property damage! • Do not operate the pump with the shut-off devices closed. • Only operate the pump within the permissible operating range. Installation and operating instructions Wilo-Atmos GIGA-NF... -
Page 26: Switching Frequency
• Only switch on the pump again when the motor is at a complete standstill. A maximum of 6 connections per hour are permitted in accordance with IEC 60034-1. It is recommended that repeated activations occur at regular intervals. WILO SE 2022-02... -
Page 27: Shutdown
Grease or oil the blank components. For this, use silicone-free grease or oil. Ob- serve the manufacturer’s instructions for preservatives. Maintenance/repair It is recommended to have the pump serviced and checked by the Wilo customer ser- vice. Maintenance and repair work require the pump to be partially or completely dismantled. -
Page 28: Personnel Qualifications
Wilo recommends checking the flexible coupling elements regularly and replacing them at the first sign of wear. ƒ Wilo recommends briefly putting the standby pumps into operation at least once a week to ensure they are always ready for operation. Maintenance tasks The bearing bracket of the pump is equipped with rolling bearings that have lifetime lubrication. -
Page 29: Draining And Cleaning
If present: Remove the intermediate sleeve of the coupling. ƒ Remove the fastening screws of the motor from the baseplate. NOTICE Observe the section drawing in the section “Spare parts”. 9.5.1 Dismantling the slide-in unit Fig. 16: Removing the slide-in unit Installation and operating instructions Wilo-Atmos GIGA-NF... - Page 30 Fig. 19: Housing cover, mechanical seal Remove the spacer (9.2). Remove the rotating part of the mechanical seal (9.1). Loosen the interior hexagonal head screws (15) and remove the housing cover (10). Remove the stationary part of the mechanical seal (9.1). WILO SE 2022-02...
-
Page 31: Installation
• Any damage to the pump connection cable should only ever be rectified by a qualified electrician. • Observe the installation and operating instructions for the pump, motor and other accessories. • Reinstall any uninstalled safety devices, such as terminal box covers, once the work is complete. Installation and operating instructions Wilo-Atmos GIGA-NF... - Page 32 In this case, replace the neck rings. 9.6.2 Assembling the slide-in unit Version with mechanical seal (optional: mechanical seal on the sleeve) Fig. 24: Housing cover, mechanical seal WILO SE 2022-02...
- Page 33 Insert a new housing seal (1.2). Carefully insert the slide-in unit into the spiral housing (1.1) and tighten with the hexagon head screws (14). Installation and operating instructions Wilo-Atmos GIGA-NF...
-
Page 34: Faults, Causes And Remedies
Costs may be incurred if you request customer services! Please contact customer ser- vices for more information. 10.1 Faults Possible error types Error type Description Delivery rate too low Motor overloaded Pump end pressure too high Bearing temperature too high WILO SE 2022-02... -
Page 35: Causes And Remedies
Correct the pump in- stallation Speed too high Lower speed Pump unit poorly – Correct alignment aligned Thrust too high – Clean the relief bores in the impeller – Check the condition of the neck rings Installation and operating instructions Wilo-Atmos GIGA-NF... -
Page 36: Spare Parts
Table 10: Causes of error and remedies Spare parts Spare parts may be ordered via a local installer and/or Wilo customer service. List of ori- ginal spare parts: Refer to the Wilo spare parts documentation and the following in- formation in these installation and operating instructions. -
Page 37: Spare Parts List
Fig. 29: Pump with mechanical seal Item no. Description Number Safety-relevant Pump housing Flat gasket Impeller Disc Disc Shaft 4.1A Ball bearing 4.1B Ball bearing Cover V-gasket Retaining ring Thrower Bearing bracket housing Shaft protection kit 2 Installation and operating instructions Wilo-Atmos GIGA-NF... -
Page 38: Disposal
Please consult your local municipality, the nearest waste disposal site, or the dealer who sold the product to you for information on proper disposal. See www.wilo‑recycling.com for more information about recycling. Subject to change without prior notice! WILO SE 2022-02... - Page 40 Local contact at www.wilo.com/contact WILO SE Wilopark 1 44263 Dortmund Germany T +49 (0)231 4102-0 F +49 (0)231 4102-7363 wilo@wilo.com Pioneering for You www.wilo.com...
