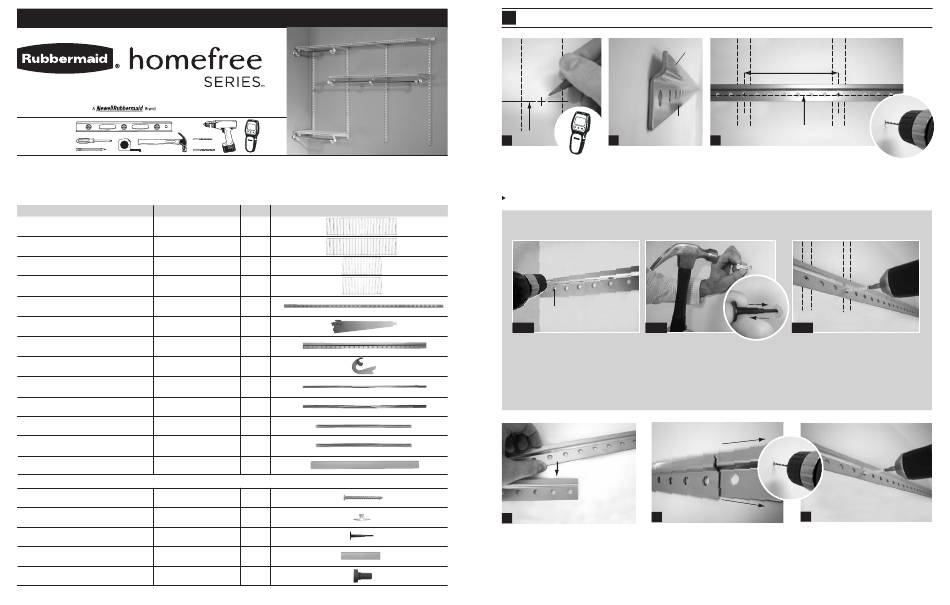

Rubbermaid homefree Series Manual

3–6 ft. Adjustable Closet System
Tools Needed
for Installation
1/8"
3/8"
Please read through the instructions completely and check that you have all parts before beginning.
Depending on the configuration you choose to install, you may not use all of the components.
Description Part Number
36.25" Shelf (labeled A) 3G61
36.25" Shelf (labeled B) 3J61
26.25" Shelves (labeled A) 3G60
26.25" Shelf (labeled B) 3J60
47.5" Uprights 3G64
Brackets 3G63
36" Overlapping Hang Rails 3G66
Clothes Rod Hangers 3G68
36" Inner Clothes Rod 3G74
36" Outer Clothes Rod 3G75
26" Inner Clothes Rod 3G72
26" Outer Clothes Rod 3G73
22" Rail Covers 3J57
The following parts are packed together in a hardware bag:
Screws with white tip 1603168
0.5" Drywall Anchors 3J65
Anchor Push Pin 3J66
6" Rail Covers 3J56
Clothes Rod End Caps 3G71
3H11
L81801707E0
optional
Quantity
1
1
2
1
4
10
2
8
1
1
1
1
3
11
6
1
2
6
1

Mount Overlapping Hang Rails

Top edge
Wall stud
Left
side of
86.5"
closet
Outside
of Rail
A B
Locate studs Position rail
On closet wall, locate all wall Position first hang rail so
studs and mark them 86.5" that the rail is touching the
above the floor. Using a stud left side of your closet.
finder can be useful (optional).
Hint: Draw a pencil line across your 86.5" mark to indentify screw placement and ensure that the line is level.
Secure left end of rail
If there is a stud within 4" from the wall, skip steps D (1) and D (2).
Second hole
from left
D (1) D (2)
Drywall anchor installation*
Mark and drill a 3/8" hole (for a wall anchor) in the second hang rail hole from
the left. To compress the anchor, fold the sides and bend. Hammer the wall
anchor flush to wall in the drilled hole. Insert anchor push pin to engage anchor,
then remove.
*Anchors for concrete, plaster or steel wall installation must be purchased separately.
F
E
Extend second hang rail
Position second hang rail if closet
Slide second hang rail as far right to the
space is wider than 3'
wall as possible while still maintaining
Slide second hang rail down behind the
hole alignment. Repeat step C to secure to
first from above.
the wall. If there is not a stud within 4" of
the RIGHT end of the hang rail, repeat the
dry wall anchor installation step above.
Screw into studs spaced
no more than 24" apart
86.5"
C
Level rail and drill pilot holes
Level hang rail and mark holes 86.5" above floor that
land on studs, then drill 1/8" pilot holes for screws.
D (3)
Rail fastening
Starting at left side, fasten the first two
screws into studs (or anchors). Do not
fasten remaining screws until after
next step.
Note: Screws need to be fastened
through rail into each wall stud
spaced no more than 24" apart.
G
Secure second rail from right side
Install screws into studs (or anchors)
along rails. Secure rail in all studs.
