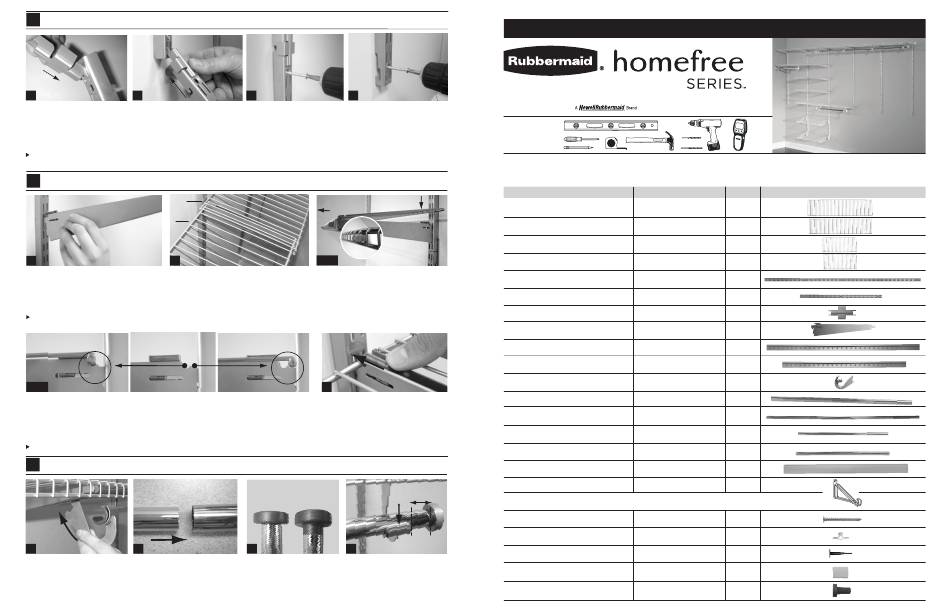

Rubbermaid Homefree Series Quick Start Manual

4
Install Upright Extensions
A B
Slide in upright connector Slide in other end to upright
Slide one end of the upright Slide the other end of the upright
connector into the top two connector into the bottom two notches of
notches of the short upright. the long upright. Use a level to position
the short upright and mark the position
of the top & bottom screw holes.
Hint: Install these in the area of the closet where you would be most likely to install accessories (sold separately) or shelving closer to the floor.
Use shoe shelf brackets (included) to create additional storage space.
5
Install Brackets and Expanding Shelves
B
on top
A
A B
Insert brackets Overlapping shelves
Insert brackets into uprights at desired locations.
Shelves are fully adjustable and require no cutting.
Note: Install brackets and shelving at the top
To adjust width, overlap the shelves making sure
first and work down. Brackets will not fit into
the shelf labeled "A" is placed first on the brackets
upper two slots of each upright.
and the shelf labeled "B" is placed on top of "A".
Hint: When overlapping sections of shelving, shelves labeled "A" must be placed
onto brackets before shelves labeled "B".
"A" shelf sits in
front notch
Bracket
C (2)
Place shelves onto brackets
Shelf labeled "A" sits in front notch of bracket. Shelf labeled "B" sits in back notch. Be sure each shelf
slides back as far as possible before locking shelves into brackets. If overlapping three sections of
shelving, use two "A" sections and one "B" section, placing "A" sections on the outside and spanning
the gap with "B" sections. For four or more overlapping sections, continue alternating between "A"
and "B" sections, placing "A" shelves on brackets before "B" shelves.
Hint: If shelves are installed in the incorrect notch, shelving weight capacity could be lessened.
6
Install Adjustable Clothes Rods
Press firmly
into place
A B
Install rod hanger Adjust rod length
Install rod hanger into bottom of Rods can be used separately or
bracket by tilting it backward until telescoped together. 48" telescope
it locks in place. Note: be sure to up to 8' and 26" telescope up to 4'.
press rod hangers firmly into place
for proper installation.
C D
Fasten screws
Drill 1/8" pilot hole and fasten both screws (use wall anchor and 3/8"
bit if there is not stud). To position the second upright extension, use
22" rail cover to ensure proper spacing is parallel from the first
upright extension.
C (1)
Install shelves into brackets
Confirm that the bracket locks are unlocked
and install shelving making sure that the
"nose" of the bracket is projecting out through
the front edge of the shelf. Note: For maximum
weight capacity, do not insert brackets into
bottom slots of upright.
"B" shelf sits in
back notch
D
Secure shelves with bracket locks
After all shelves are positioned properly, lock
shelves into brackets by sliding the plastic
locking clip towards the back wall. It will
"snap" into locked position.
End cap End cap
fit on outer
fit on inner
clothes rod clothes rod
C D
Add end caps Secure rod and hanger
After expanding clothes rod to
Place end caps on the end of
desired length, place into rod
each clothes rod. End caps will
hangers and press down to snap
fit either diameter of rod (As
into place. Note: do not extend
shown above).
more than 3" past rod hangers.
6–10 ft. Adjustable Closet System
© 2011 Rubbermaid Incorporated, Huntersville, NC 28078-1807 • 1-888-895-2110
www.rubbermaid.com
Tools Needed
for Installation
Please read through the instructions completely and check that you have all parts before beginning.
Depending on the configuration you choose to install, you may not use all of the components.
Description
48.25" Shelf (labeled A)
48.25" Shelf (labeled B)
26.25" Shelves (labeled A)
26.25" Shelves (labeled B)
47.5" Uprights
25" Upright Extension
Upright Connector Clip
Brackets
48" Overlapping Hang Rails
36" Overlapping Hang Rails
Clothes Rod Hangers
48" Inner Clothes Rod
48" Outer Clothes Rod
26" Inner Clothes Rod
26" Outer Clothes Rod
22" Rail Covers
Shoe Shelf Brackets
3" max.
The following parts are packed together in a hardware bag:
Screws
0.5" Drywall Anchors
Anchor Push Pin
2" Rail Covers
Clothes Rod End Caps
1/8"
3/8"
optional
Part Number Quantity
3G62 2
3J62 1
3G60 3
3J60 4
3G64 6
3G65 3
5E19 3
3G63 19
3G67 1
3G66 2
3G68 10
3G76 1
3G77 1
3G72 1
3G73 1
3J57 5
3F58 4
1603168 24
3J65 18
3J66 1
3J55 2
3G71 8
3P40
