Attach The Front Wheels - HOMCOM Children ATV Assembly Instruction Manual

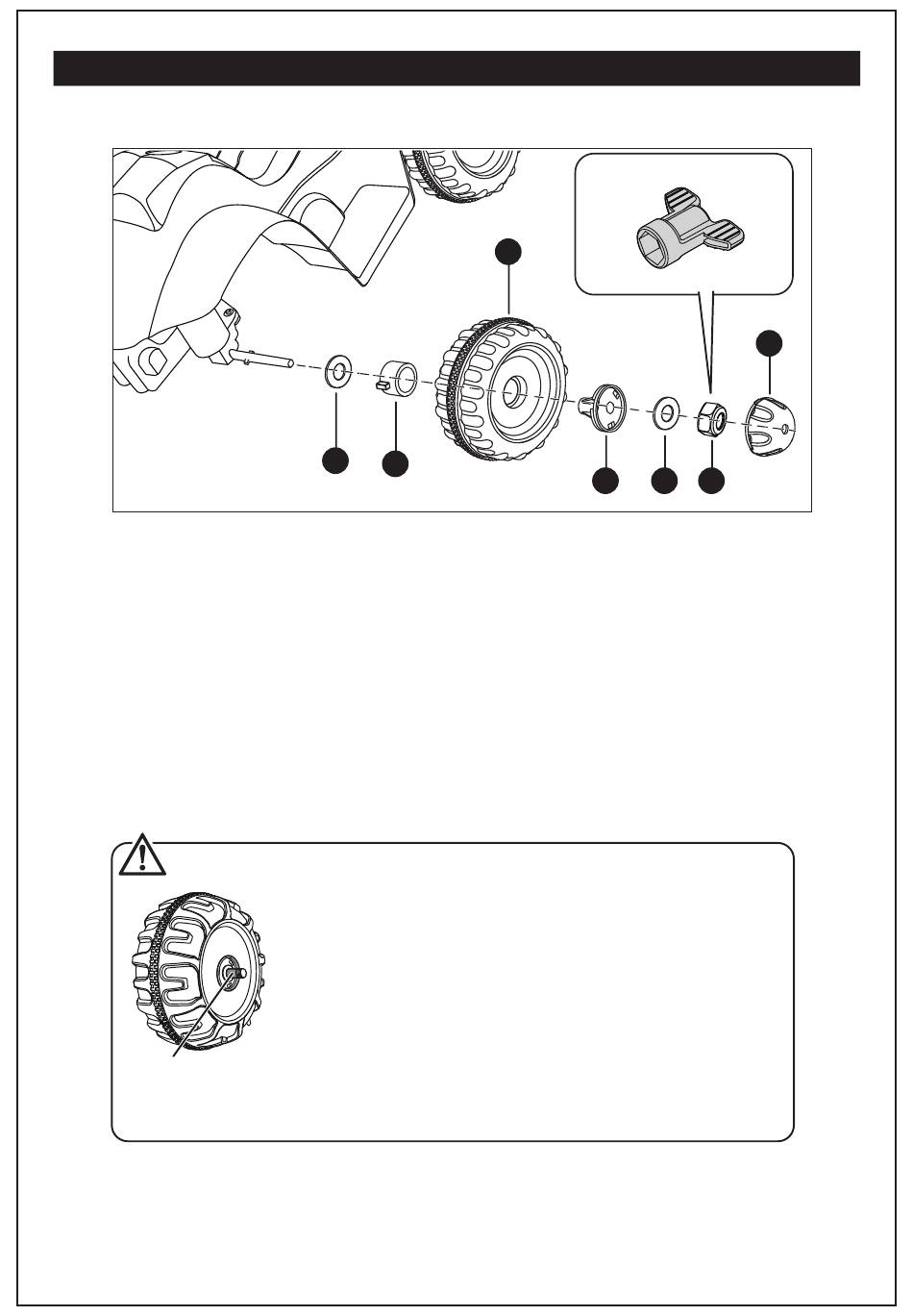

Remove all the parts from the front axle.
1. Slide a Ø10 washer onto the front axle.
2. Slide a inner busing, ring end first
3. Slide a wheel onto the front alxe. Ensure the inner bushing match up with wheel.
4. Slide a outer busing onto the front axle.
5. Slide a Ø10 washer onto the front axle.
6. Tighten a lock nut to the end of the front axle with a spanner.
7. "Snap" the hubcap to the wheel.
Repeat the above procedure to assemble the other normal wheel.
After assembling any wheel to the axles, please check the
gap between the screw thread and the collapsible (refer to
below picture), if the gap is too big, please add two or three
washers inside the wheel, but after tightening the nut outside
the wheel, please turn the wheel by your finger to check if the
wheel can run smoothly, this is very important, because if the
wheel can run smoothly, it is ok, but if the nut press the whee l
and the wheel can't run smoothly, the motor will be broken
GAP
easily! Then you need to decrease one or two washers to
make sure the wheel can run smoothly!
Attach the Front Wheels │ 6
1
2
onto the front axle.
Assembly tools required:
3
Spanner
4 5
7
6
