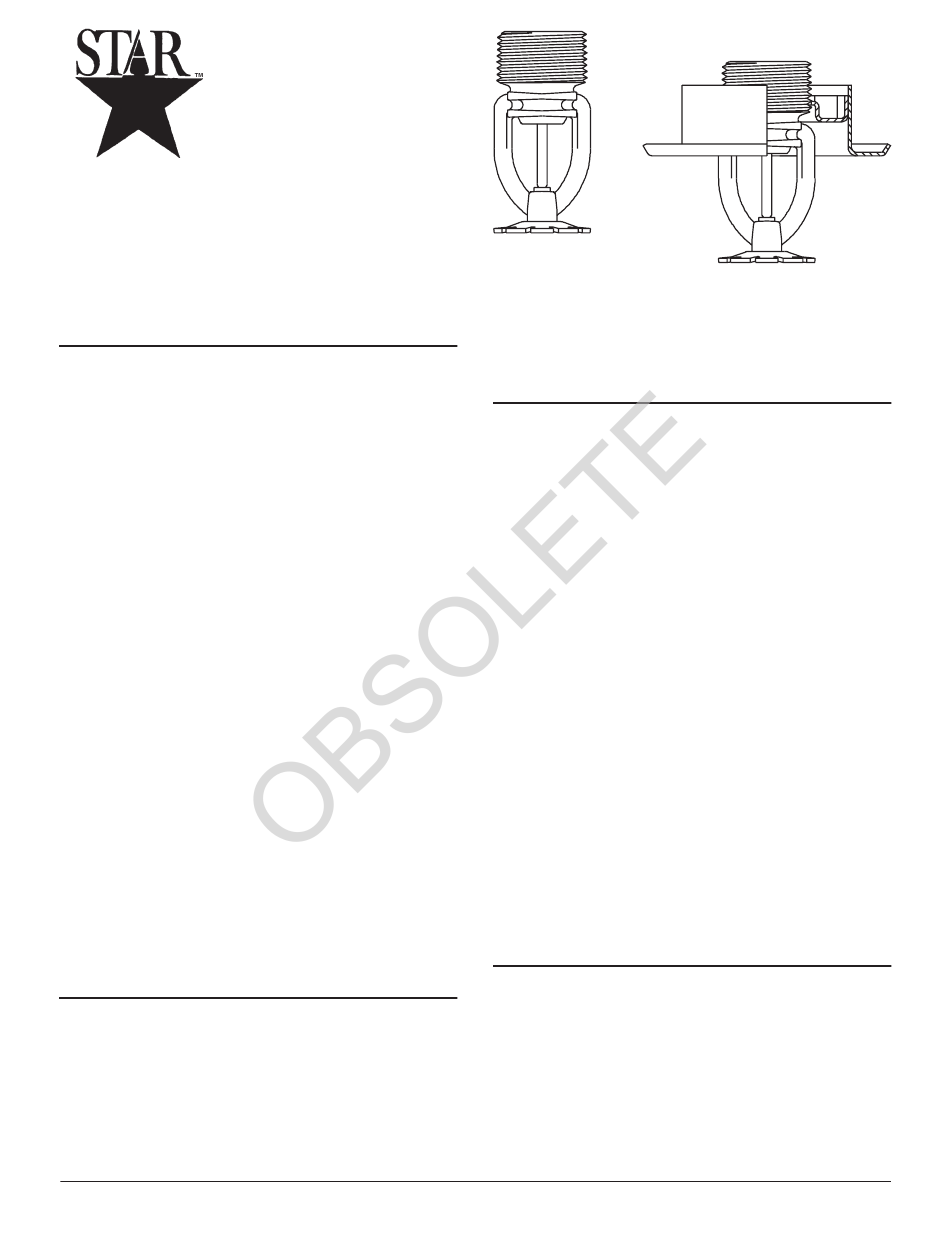

Tyco Fire Product Star SG S180 Instruction Manual

Quick & Standard Response
ECLH Pendent and Recessed
Pendent Sprinklers, K=8.0
SG S180
GENERAL DESCRIPTION
The Star SG S180, 8.0 K-Factor, Quick and Standard Re-
sponse, Extended Coverage Light Hazard (ECLH) Pen-
dent and Recessed Pendent Sprinklers are decorative
glass bulb sprinklers designed for use in light hazard oc-
cupancies such as churches, hospitals, offices, and res-
taurants.
They are intended for use in automatic sprinkler systems
designed in accordance with standard installation rules
(e.g., NFPA 13) for the protection of light hazard coverage
2
areas of up to 400 ft (37,2 m
mum coverage area of 225 ft
erage sprinklers.
The recessed version of the SG S180 using a two-piece
#2086 Recessed Escutcheon provides 1/4 inch (6,4 mm)
of recessed adjustment or up to 1/2 inch (12,7 mm) of to-
tal adjustment from the flush pendent position. In addition
to its aesthetically pleasing appearance, the adjustment
provided by the Recessed Escutcheon reduces the accu-
racy to which the fixed pipe drops to the sprinklers must
be cut.
WARNINGS
The SG S180 ECLH Pendent and Recessed Pendent
Sprinklers described herein must be installed and main-
tained in compliance with this document, as well as with
the applicable standards of the National Fire Protection
Association, in addition to the standards of any other
authorities having jurisdiction. Failure to do so may impair
the integrity of these devices.
The owner is responsible for maintaining their fire protec-
tion system and devices in proper operating condition.
The installing contractor or sprinkler manufacturer should
be contacted relative to any questions.
OPERATION
The glass bulb contains a fluid which expands when ex-
posed to heat. When the rated temperature is reached,
the fluid expands sufficiently to shatter the glass bulb,
which then allows the sprinkler to activate and flow water.
TYCO FIRE PRODUCTS
Customer Service/Sales: Tel: (800) 558-5236 • Fax: (414) 570-5010
Technical Services: Tel: (800) 381-9312 • Fax: (800) 791-5500
2
), as compared to the maxi-
2 2
(20,9 m ) for standard cov-
SIN S2420
#2086 Recessed Escutcheon
TECHNICAL DATA
Approvals
UL and C-UL Listed. FM Approved.
(The approvals apply only to the service conditions indi-
cated in the Design Criteria section.)
Maximum Working Pressure
175 psi (12,1 bar)
Discharge Coefficient
1/2
K = 8.0 GPM/psi (116,8 LPM/bar
Temperature Ratings
135°F/57°C, 155°F/68°C, 175°F/79°C, or 200°F/93°C
Finishes
Sprinkler: White Polyester, Chrome Plated, Natural Brass
Recessed Escutcheon: White Coated or Chrome Plated
(Colors other than white are available on request.)
Physical Characteristics (Ref. Figure 1)
The SG S180 utilizes a dezincification resistant (DZR)
bronze frame and a 3 mm bulb. The two-piece button as-
sembly is brass and copper. The gasketed spring plate
consists of a beryllium nickel disc spring that is sealed on
both its inside and outside edges with a Teflon V gasket.
The compression screw is bronze, and the deflector is
brass.
DESIGN CRITERIA
The SG S180 Quick and Standard Response, Extended
Coverage Light Hazard (ECLH) Pendent and Recessed
Pendent Sprinklers are only to be installed in accordance
with Table B or C, as applicable. Only the #2086 Re-
cessed Escutcheon is to be used for recessed installa-
tions.
Shown With
1/2
)
V DuPont Registered Trademark
1-2.2.30
3-01
