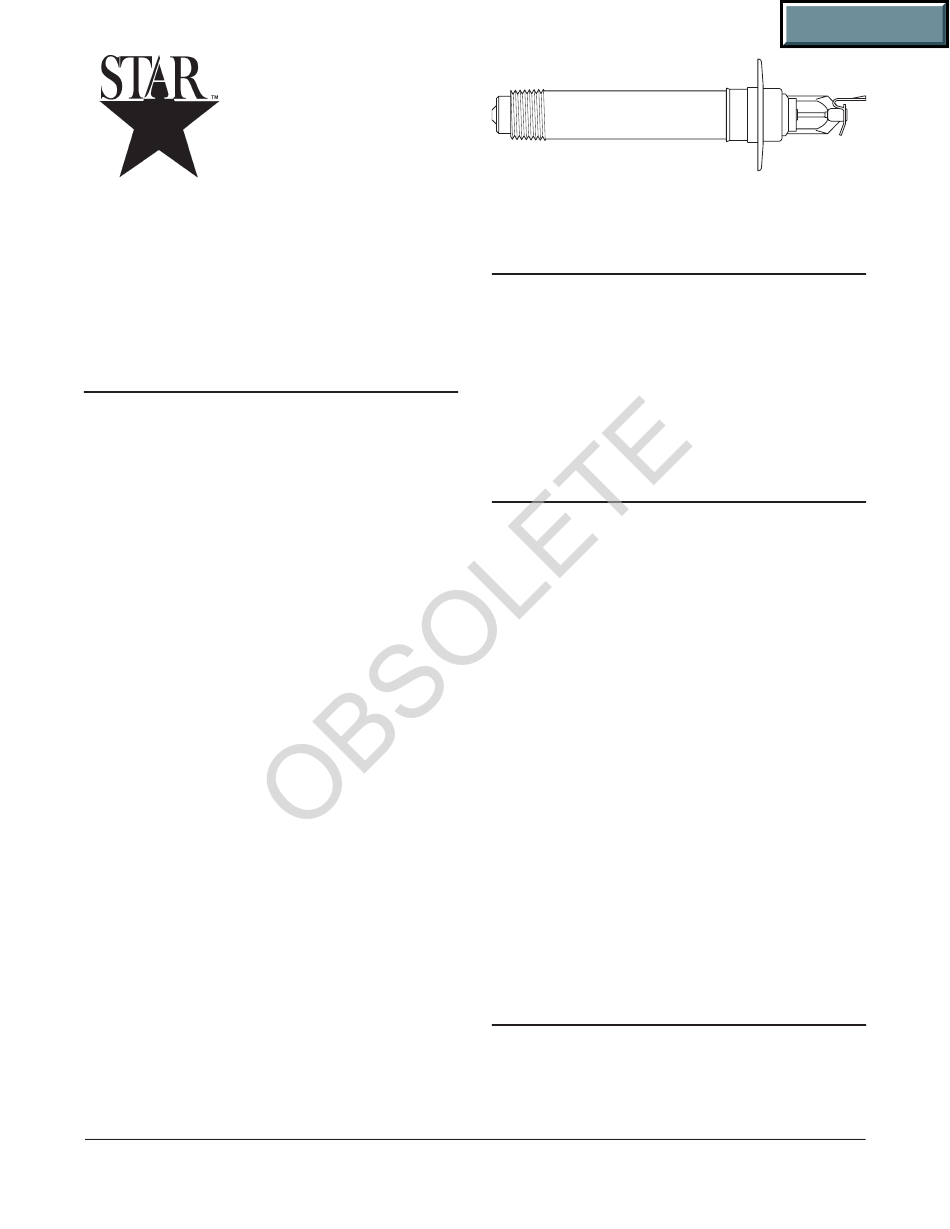

Tyco Fire Product Star Luminous S178 Instruction Manual

Quick Response
Extended Coverage
Dry Horizontal Sidewall Sprinklers
Luminous™ S178, 3 mm Bulb

GENERAL DESCRIPTION

The Star Luminous S178, 5.6 K-Factor, Quick Response,
Extended Coverage, Dry Horizontal Sidewall Sprinklers
are decorative glass bulb automatic sprinklers designed
for use in applications where the sprinklers and/or a por-
tion of the connecting piping may be exposed to freezing
temperatures (e.g., horizontal piping extensions from a
wet pipe sprinkler system through a wall to protect a
freezer or unheated area of a building).
The Luminous S178, 3 mm Bulb, Dry Horizontal Sidewall
Sprinklers are intended for use in quick response, ex-
tended coverage (QR-EC) automatic sprinkler system ap-
plications per NFPA 13 and are available in a wide range
of operating temperatures and order lengths.
They are designed for installation along a wall and just be-
neath a smooth ceiling. Installed with their centerline of
waterway horizontal, these sprinklers produce a quarter-
spherical water distribution pattern that is predominately
directed downward and outward from the sprinkler with a
portion of the spray being directed towards the backwall.
The Standard Escutcheon for the Luminous S178 is a
separable two-piece design which allows installation of
the sprinklers and pressure testing of the fire protection
system prior to wall construction and/or application of a
finish coat to the wall. It also permits refinishing of a wall
surface without having to first shut down the fire protec-
tion system and remove the sprinklers.

WARNINGS

The Luminous S178 Quick Response, Extended Cover-
age, Dry Horizontal Sidewall Sprinklers described herein
must be installed and maintained in compliance with this
document, as well as with the applicable standards of the
National Fire Protection Association, in addition to the
standards of any other authorities having jurisdiction. Fail-
ure to do so may impair the integrity of these devices.
The owner is responsible for maintaining their fire protec-
tion system and devices in proper operating condition.
The installing contractor or sprinkler manufacturer should
be contacted relative to any questions.
The Luminous S178 Quick Response, Extended Cover-
age, Dry Horizontal Sidewall Sprinklers must only be in-
stalled in fittings that meet the requirements of the De-
sign Criteria section.
TYCO FIRE PRODUCTS
Customer Service/Sales: Tel: (800) 558-5236 • Fax: (414) 570-5010
Technical Services: Tel: (800) 381-9312 • Fax: (800) 791-5500
SIN S3245
Standard Escutcheon

OPERATION

When the Luminous S178 is in service, water is pre-
vented from entering the assembly by the Plug & O-ring
(Ref. Figure 2) in the Inlet of the Sprinkler. The glass Bulb
contains a fluid which expands when exposed to heat.
When the rated temperature is reached, the fluid expands
sufficiently to shatter the glass Bulb, and the Bulb Seat is
released. The compressed Spring is then able to expand
and push the Water Tube as well as the Guide Tube out-
ward. This action simultaneously pulls inward on the
Yoke, withdrawing the Plug & O-ring from the Inlet, which
then allows the sprinkler to activate and flow water.

TECHNICAL DATA

Approvals
UL and ULC Listed. NYC Approved (MEA 212-98-E).
(Refer to Table A and Table B.)
Maximum Working Pressure
175 psi (12,1 bar)
Discharge Coefficient
1/2
K = 5.6 GPM/psi (80,6 LPM/bar
Temperature Ratings
135°F/57°C and 155°F/68°C (Refer to Table A)
Finishes
Sprinkler: Natural Brass, Chrome Plated, White Polyester
Escutcheon: White Coated or Chrome Plated
(Colors other than white are available on request.)
Physical Characteristics (Ref. Figure 1)
The Plug and Inlet are brass, and the O-ring is silicone
rubber. The Casing is galvanized carbon steel. The Frame
is bronze, the Deflector is brass, and the Compression
Screw is bronze. The Water Tube is brass, and the Bulb
Seat, Spring, and Yoke are stainless steel. The Guide
Tube sub-assembly is constructed of stainless steel and
brass. The two pieces of the Escutcheon are low carbon
steel.

Patents

U.S.A. Patent Number 5,188,185 is applicable to the Lumi-
nous S178 Dry Horizontal Sidewall Sprinklers.

DESIGN CRITERIA

The Luminous S178 Dry Sprinklers must only be installed
in accordance with Table B.
The Luminous S178 Dry Sprinklers are to be installed in
the 1 inch NPT outlet of a malleable iron threaded tee fit-
