DEMO MANUAL DC1817B

Quick start proceDure

IMPORTANT NOTE TO CUSTOMERS:
HIGH VOLTAGES ARE PRESENT ON THE DEMO
CIRCUIT, AND CAN LEAD TO LETHAL INJURIES
TO HUMAN BODY. ONLY QUALIFIED PERSONNEL
SHOULD OPERATE IT. IT IS STRONGLY RECOM-
MENDED TO USE SAFETY GLASSES AND AN
ISOLATION TRANSFORMER.
NOTE: Improper components replacement on the demo
circuit can cause performance deteriorations, circuit
malfunction, property damage, and even life threatening
injuries. Contact Linear Technology applications engineers
for proper component replacement.
2
Arrow.com. Arrow.com.
Downloaded from Downloaded from
Demonstration circuit 1817B is easy to set up to evaluate
the performance of the LT3798. Refer to Figure 1 for proper
measurement equipment setup and follow this procedure:
1. Connect an adjustable load between + and – output
2. With power off, connect the input power supply to
3. Turn on the power at the input.
NOTE. Make sure that the input voltage does not exceed
the maximum input voltage (265VAC).
4. Check for the proper output voltage.
Once the proper output voltage is established, adjust the
input voltage and/or the load and observe the output voltage
regulation, efficiency, power factor and other parameters.

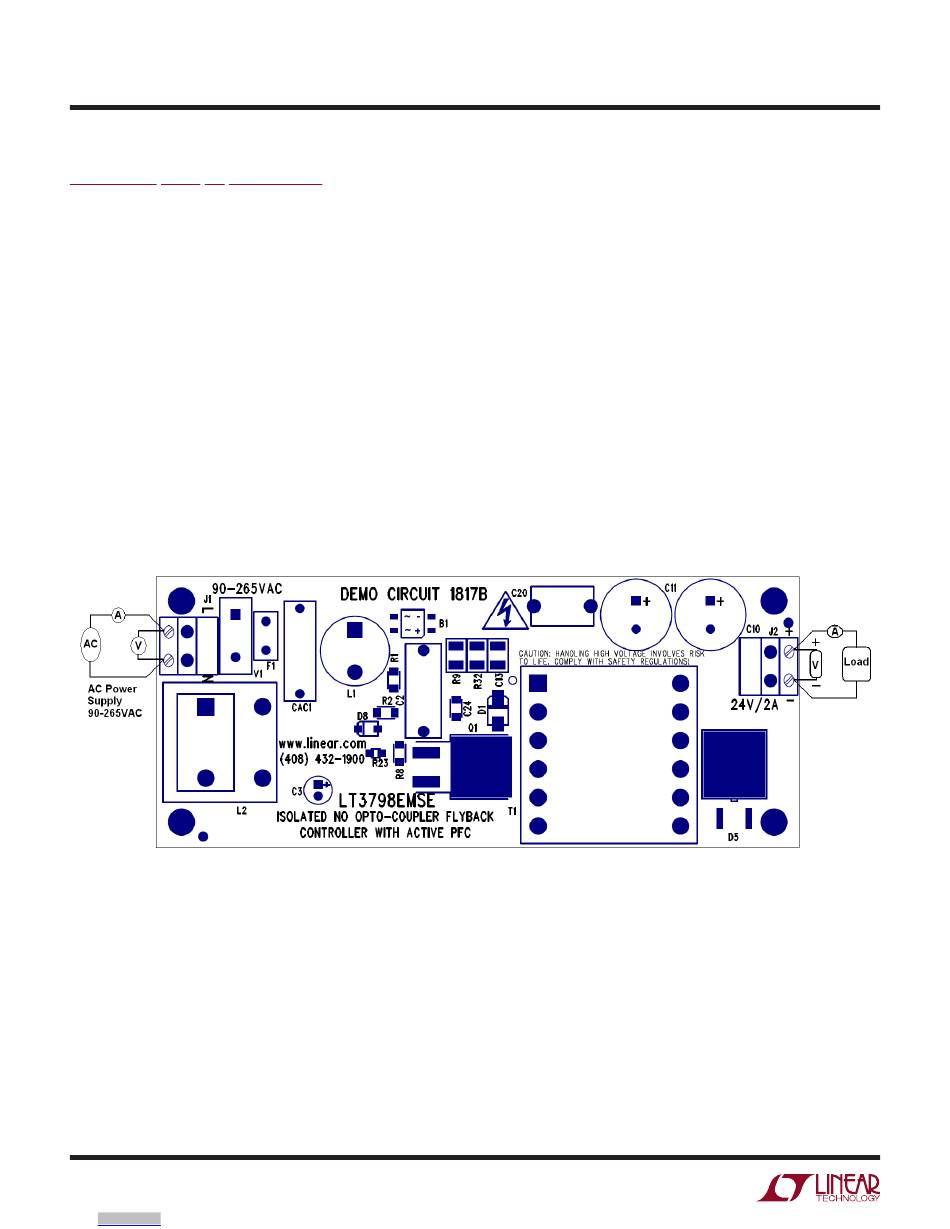

Figure 1. Proper Measurement Equipment Setup
terminals.
Line (L) input and Neutral (N) input.
dc1817bfa
