3. Installation
3.1. Space Requirements
• Maximum installation plate thickness: 6.5 mm.

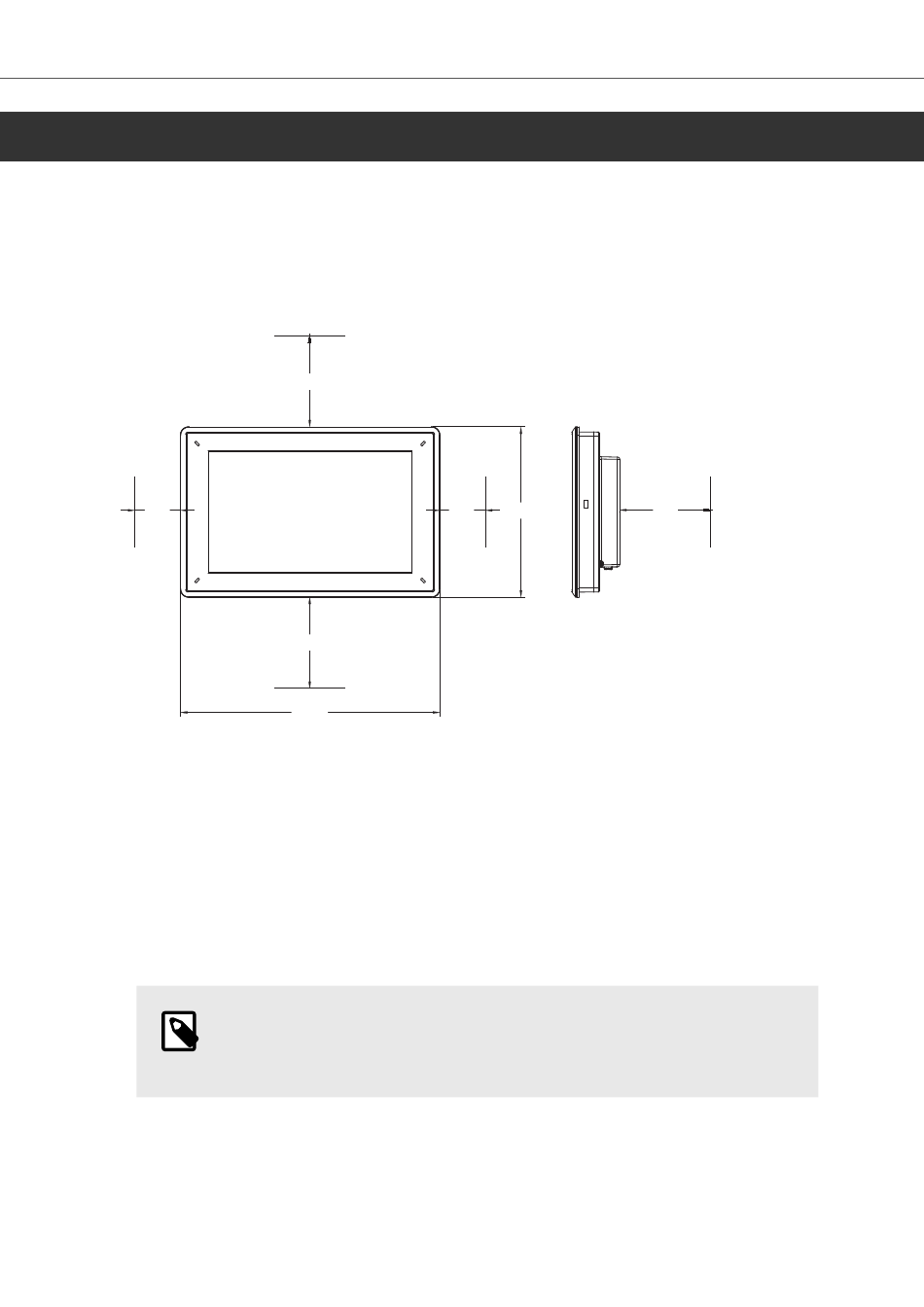

The following drawings show the space requirements in millimeters when installing the HMI panel.
The drawings are only illustrative and may be out of proportion.
50
3.2. Installation Process
The following is needed:
• A Phillips/slot screwdriver
• Four M5 × 0.8 screws conforming to the table above
• Installation tool for mounting screws
Do the following:
1.
Unpack and check the delivery. If damage is found, notify the supplier.
NOTE
Place the on a stable surface during installation. Dropping the HMI panel or
letting it fall may cause damage.
2.
To cut a correct opening for the HMI panel, use the cut out dimensions in the outline drawing.
A separate cut out drawing is available for download from the Beijer Electronics web site. For
more information, see chapters HMI Panel Drawings and Technical Data.
Beijer Electronics, MAEN182
100
50
100
284.3
11
[mm]
186.6
100
Installation
2023-09
