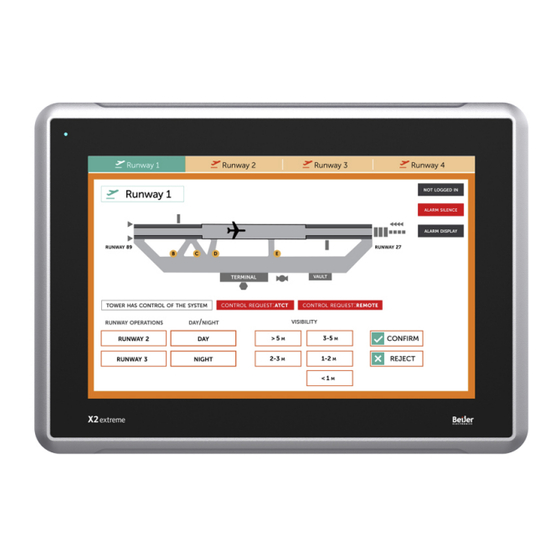

- Page 1 Installation Manual X2 extreme 12 CO MAEN323B 2023-09...
- Page 2 The information in this document is subject to change without notice and is provided as availa- ble at the time of printing. Beijer Electronics AB, including all its group companies, reserves the right to change any information without updating this publication. Beijer Electronics AB, in- cluding all its group companies, assumes no responsibility for any errors that may appear in this document.
-
Page 3: Table Of Contents
7.7. CAN Interface ..................27 7.7.1. Cable Recommendations .............. 27 7.7.2. Termination ................27 7.7.3. Restrictions and Recommendations ..........27 7.8. Cable and Bus Termination RS-485 ............27 7.9. USB Flash Drive .................. 28 7.10. Image Sticking .................. 28 Beijer Electronics, MAEN323B 2023-09... -
Page 5: Safety Precautions
PCB and electronic components Cr6+ PBDE PCB 和电子元件 O: Indicates that this toxic or hazardous substance contained in all of the homogenous materials for this part is below the limit requirement in SJ/T 11363–2014. O: 表示该有害物质在该部件所有均质材料中的含量均在 SJ/T 11363–2014 规定的限量要求以下 Beijer Electronics, MAEN323B 2023-09... -
Page 6: Disposal Requirements Under Weee Regulations
• These devices are Class 2 supplies programmable controllers (industrial PCs) or the use in industrial control equipment and are intended to be (front) panel mounted. • For use on a flat surface of an enclosure. 2023-09 Beijer Electronics, MAEN323B... -
Page 7: Iecex/Atex Certificate And Dust Rating
1.8. During Use • Keep the HMI panel clean. • Emergency stop and other safety functions may not be controlled from the HMI panel. • Do not use excessive force or sharp objects when operating the touch screen. Beijer Electronics, MAEN323B 2023-09... -
Page 8: Service And Maintenance
• Clean the display and surrounding front cover with a soft cloth and mild detergent. • The battery must be replaced by an authorized Beijer Electronics service center. 1.9.1. Cleaning the Display We recommend using a dry, clean cloth to wipe off dust regularly. Use alcohol or ammonia-based cleaning agent for cleaning only when necessary. -
Page 9: Dismantling And Scrapping
The layer structure of the touch screen contains air. In rare cases, the appearance of bubbles can arise. This is purely cosmetic and does not affect the functionality of the HMI panel. The appearance can occur under certain environmental conditions such as changes in temperature, humidity, or atmospheric pressure. Beijer Electronics, MAEN323B 2023-09... -
Page 10: Naming Convention
• X2 extreme 7 SL HP* • X2 extreme 12 SL HP SC* • X2 extreme 7 CO* • X2 extreme 12 SL HP RO NOTE Not all combinations are available. NOTE * indicates variants including IECEx\ATEX and C1D2 accreditation. 2023-09 Beijer Electronics, MAEN323B... -
Page 11: Installation
To cut a correct opening for the HMI panel, use the cut out dimensions in the outline drawing. A separate cut out drawing is available for download from the Beijer Electronics web site. For more information, see chapters HMI Panel Drawings and Technical Data. - Page 12 • Connect cable C. • Connect cable D. The recommended cross-section of the cable is 1.5 mm Carefully remove the protective film over the HMI panel display, taking care to avoid static electricity that could damage the panel. 2023-09 Beijer Electronics, MAEN323B...
-
Page 13: Connections To The Controller
Connect the desired cables and attach them to strain relief plate with cable ties provided. 3.2.3. Other Connections and Peripherals Cables, peripheral equipment and accessories must be suitable for the application and its environment. For further details or recommendations, please refer to the supplier. Beijer Electronics, MAEN323B 2023-09... -
Page 14: Technical Data
Technical Data 4. Technical Data Parameter X2 extreme 12 CO Front panel,W×H×D 341× 243×7 mm Cut out dimensions, W× 324±1 mm× 226±1 mm Maximum corner radius: 4 mm. 394x 270 mm. Mounting depth 62 mm (162 mm including clearance) Front panel seal... -
Page 15: Compass Safe Distance
Technical Data Parameter X2 extreme 12 CO Power supply +24 V DC (18–32 V DC) CE: The power supply must conform with the requirements according to EN/IEC 60950 and EN/IEC 61558-2-4. UL and cUL: The power supply must conform with the requirements for class 2 power supplies. -
Page 16: Chemical Resistance
The Autoflex protective film covers the overlay surrounding the screen. Solvent Resistance The protective film withstands exposure of more than 24 hours duration under DIN 42115 Part 2 to the following chemicals without visible change: Acetonitrile Diesel Petroleum spirit 2023-09 Beijer Electronics, MAEN323B... -
Page 17: Touch Screen Surface
5.2.3. Touch Screen Protector For harsh environments and exposure to outdoor conditions, it is recommended to use a protective film to guard the touch screen from damage. This optional part can be ordered from Beijer Electronics. Beijer Electronics, MAEN323B 2023-09... -
Page 18: Hmi Panel Drawings
RS-422 TX- or RS-485 CAN 1-L Tx-/Rx- RS-232 RTS RS-232 CTS RS-422 Rx- RS-485 Tx-/Rx- CAN 2-L The connector supports up to three independent serial communication channels and can be configured for RS-232 and RS-422 or 2×RS-485. 2023-09 Beijer Electronics, MAEN323B... -
Page 19: Hmi Panel Outline
In order to utilize two communication ports, the Y-split cable CAB109 can be used. In order to utilize three communication ports the split cable CAB150 can be used. To use RS-232 and RS-422, use CAB 109. To use RS-232 and RS-485, use CAB 150. 6.2. HMI Panel Outline Beijer Electronics, MAEN323B 2023-09... - Page 20 HMI Panel Drawings NOTE A Step CAD file is available on the web site www.beijerelectronics.com 2023-09 Beijer Electronics, MAEN323B...
-
Page 21: Additional Installation Tips
• 3 turns around the ferrite core provide 9 times the suppression of 1 turn. • Connect a wire or grounding braid, that is sized correctly according to local electrical codes, between the chassis of the HMI panel and the closest grounding point. Beijer Electronics, MAEN323B 2023-09... -
Page 22: Ethernet Connection In The Hmi Panel
A good solution may be to use a shielded Ethernet cable, but to connect the shield at one end only. One option is to break the shield, see 3 in drawing above. 2023-09 Beijer Electronics, MAEN323B... -
Page 23: To Achieve Better Emc Protection
HF transients to ground. 7.3. To Achieve Better EMC Protection • Initially, use the original cabling from Beijer Electronics primarily. • Place the 24 V DC and communications cabling in one cable trunk/cable duct and 230/380 V AC in another. -
Page 24: Ambient Temperature
An approximate value of the net power consumption for the HMI panel can be calculated by multiplying the supply voltage with the current drawn by the HMI panel. This is assuming that all supplied power is transformed to heat. 2023-09 Beijer Electronics, MAEN323B... -
Page 25: Safety
• Safety is increased. The 24 V power supply is not live in the event of a faulty connection or short circuit between 0 V (24 V) and 230 V phase. • Transients on the 24 V feed are connected to the ground. Beijer Electronics, MAEN323B 2023-09... -
Page 26: Galvanic Isolation
HMI panel, and can cause errors. Use external units to improve communication and achieve galvanic isolation. Westermo has good industry-standard insulators that are also insulated from the 24 V DC feed. 2023-09 Beijer Electronics, MAEN323B... -
Page 27: Can Interface
• If maximum transfer distance and maximum transfer speed is needed, shielded and twisted pair cable should be used. The mutual capacitance may not exceed 52.5 pF/m, and the cable area should be at least 0.25 mm (AWG 24). Beijer Electronics, MAEN323B 2023-09... -
Page 28: Usb Flash Drive
• Use the screensaver functionality (see SW manual). • Changing constantly between static and dynamic images. • Avoid excessive brightness differences between foreground and background elements. • Use colors with similar brightness. • Use complementary colors in follow-up images. 2023-09 Beijer Electronics, MAEN323B...
