SPORTNOW A61-036V00 Assembly Instructions Manual

Download this manual

- Notice to assemblers:

• All basketball stands, including those for display, must be assembled according to instructions.

Failure to follow instructions could result in serious injury.

• Please read all warnings and cautions before assembly. It is recommended to supervise children

as they play with this product. Assemble this product with at least two adults.

IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY

A61-036V00_A61-036V01

IN220800684V02_UK

WARNING:

IMPROPER INSTALLATION OR

SWINGING ON THE RING MAY

CAUSE SERIOUS INJURY OR

DEATH

Need help?

Do you have a question about the A61-036V00 and is the answer not in the manual?

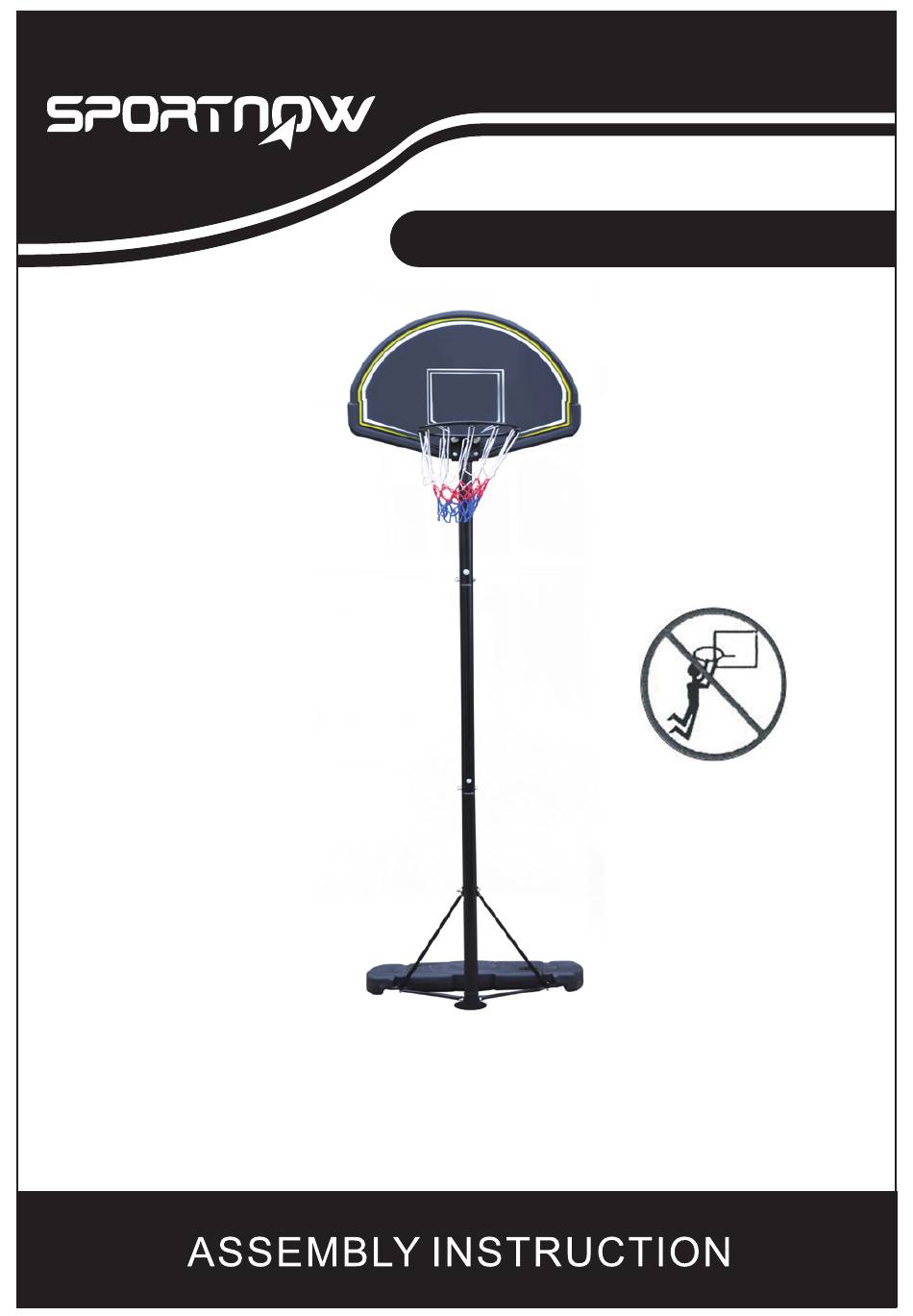

Page 1 IN220800684V02_UK A61-036V00_A61-036V01 WARNING: IMPROPER INSTALLATION OR SWINGING ON THE RING MAY CAUSE SERIOUS INJURY OR DEATH - Notice to assemblers: • All basketball stands, including those for display, must be assembled according to instructions. Failure to follow instructions could result in serious injury. •...
Page 2: Safety Instructions
SAFETY INSTRUCTIONS For safety, do not assemble without following instructions. Check all packaging before assembling, ensuring parts are not missing or damaged. * This product should be moved by at least three adults. Not to be moved by chil- dren. * Check the base (if applicable) regularly for leakages.
Page 3: Part List
PART LIST...
Page 5 Insert pole X,Y to Steel Cap O, as shown in the picture on the right. Insert pole X to Y, as shown in the picture on the left. F2 F3 F1 F2 1) Connect pole X and Y, using bolt F, as shown in the left picture.
Page 6 Connect rim J, backboard M and bracket K, using bolts B1 and B4. Please note, the longer B4 is at the top and shorter B1 is at the bottom. Connect bracket K to backboard M, using bolts C1 and C2.
Page 7 Connect backboard M and bracket K, using bolt F. Insert top pole W into middle pole X, using bolt F.
Page 8 Assemble the net, as shown in the picture on the right. Sand Water cap Water If the product does not need to be moved frequently, it is recommended to use sand in the base instead of water. Water could freeze, which damages the base.
