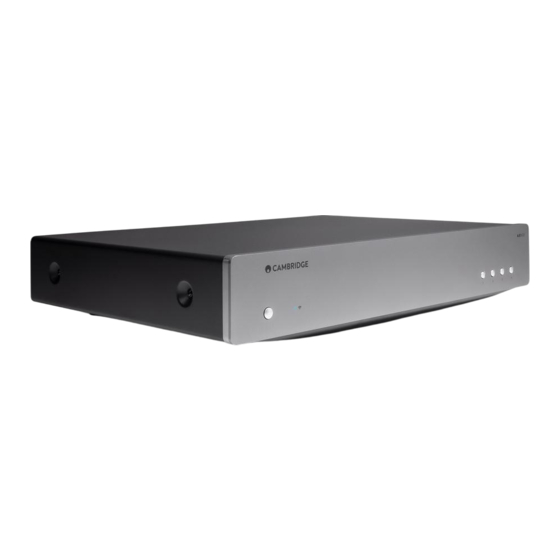

- Page 1 AXN10 Manual Generated: 22/11/2023 - 16:09...
-
Page 2: Table Of Contents
Table of Contents AXN10 ............................................Introduction ..........................................What's included with the AXN10? ................................... Front panel controls ........................................LED descriptions ........................................Rear panel connections ......................................Getting connected ........................................StreamMagic app - Setup ....................................... Google Home / Chromecast built-in ..................................Internet radio ........................................... -
Page 3: Axn10
AXN10 Last updated: February 2, 2023 03:20. Revision #8917 Users Manual... -
Page 4: Introduction
This guide is designed to make installing and using this product as easy as possible. Information in this document has been carefully checked for accuracy at the time of publishing; however, Cambridge Audio’s policy is one of continuous improvement, therefore design and specifications are subject to change without prior notice. -
Page 5: What's Included With The Axn10
What's included with the AXN10? Last updated: February 2, 2023 03:20. Revision #8924 Inside the box of your AXN10 you will receive: AXN10 player WiFi/BT Antenna (x2) Safety guide Quick start guide Regional mains lead... -
Page 6: Front Panel Controls
Front panel controls Last updated: February 2, 2023 03:20. Revision #8974 1. Power button Switches the unit between Standby Mode (indicated by dim power LED) and On (indicated by bright power LED). Standby Mode is a low power mode (0.5 Watts) – This can only be achieved when using Eco mode. The unit should be left in Standby Mode when not in use. 2. -
Page 7: Led Descriptions
LED descriptions Last updated: January 31, 2023 03:17. Revision #8985 LED Colour Mode Colour Booting White - Slowly flashing Connecting to network White - Quickly flashing Network connected White - On Network setup mode Teal - Slowly flashing Further setup required Teal - On Software updating White / Teal - Slowly flashing... - Page 8 No internet connection Orange - On Resetting factory defaults Red - Quickly flashing...
-
Page 9: Rear Panel Connections
Rear panel connections Last updated: July 27, 2023 10:04. Revision #10127 1. Line output. Analogue output used to provide a signal to an integrated amplifier, pre-amp or recording device. 2. S/P DIF coaxial digital output. 3. TOSLINK digital output. 4. WiFi and Bluetooth antenna Ensure both antennas are connected securely before use. -
Page 10: Getting Connected
Failure to maintain your device with regular firmware updates as provided by Cambridge Audio will void the product warranty and is likely to cause major issues to the unit in time. Please ensure that your unit is updated to the most current firmware version. Information on the latest firmware version for the AXN10 can be found here. - Page 11 Connecting to a wireless network iOS: Ensure that your AXN10 is in range of your wireless router, and then power on your unit. Go to the Wi-Fi settings on your iOS device and under ‘SETUP NEW AIRPLAY SPEAKER’ select 'AXN10'. Once connected, to complete unit setup download and install the StreamMagic app from the...
- Page 12 Once connected, complete the initial setup of your unit within the StreamMagic app.
-
Page 13: Streammagic App - Setup
StreamMagic app - Setup Last updated: June 16, 2023 01:08. Revision #9643 Your player is network connected, not only can you listen to devices connected to the inputs on the product but you can also stream music from many different sources both on your home network and from the internet. To set up your player, please first download the StreamMagic app from the Apple app store or Google Play store. -
Page 14: Google Home / Chromecast Built-In
Google Home / Chromecast built-in Last updated: October 24, 2023 04:18. Revision #10974 Your player is network connected, not only can you listen to devices connected to the inputs on the product but you can also stream music from many different sources both on your home network and from the internet. Your player features Chromecast built-in and can be incorporated in to your Google Home. -
Page 15: Internet Radio
Internet radio Last updated: October 24, 2023 04:24. Revision #10977 You can assign up to 99 of your favourite Internet Radio stations as presets on your player, which can then be recalled using the StreamMagic app. A limited amount of presets can be recalled via the remote control if your player includes one. You can search and assign a preset via the StreamMagic app: Within the StreamMagic app navigate to the Radio tab. -
Page 16: Airplay
AirPlay Last updated: October 24, 2023 04:30. Revision #10983 AirPlay is an Apple technology designed to control home audio systems and speakers in any room — with a tap or by just asking Siri — right from iPhone, iPad, HomePod, or Apple TV. Play a song in the living room and kitchen at the same time or adjust the volume in any room, all in sync. After installing your player, add it to the Apple Home app with a few simple steps using your iPhone or iPad How to use AirPlay from iPhone or iPad 1. -
Page 17: Built-In Streaming Services
1. Open the Spotify app and choose the playlist, album, song, etc. that you wish to stream to player. 2. Select the devices icon within Spotify and select your Cambridge Audio network player from the list of ‘Listening On’ devices. - Page 18 Qobuz (via StreamMagic) 1. Open the StreamMagic app and navigate to the Library tab, and then select Qobuz. Note: Please ensure that you sign into your Qobuz account when prompted to do so. This will only be required on the first instance of use to link the account to the StreamMagic app.
-
Page 19: Bluetooth
Bluetooth Last updated: October 26, 2023 12:56. Revision #10993 The Bluetooth source allows your player to receive wireless Bluetooth audio from most phones, tablets and laptops. Pairing To begin streaming high-quality music from your chosen media source it will first need to be paired with your player. Within the StreamMagic App navigate to the Home tab. -
Page 20: Usb Media
USB Media Last updated: July 27, 2023 10:06. Revision #10131 You may connect a USB SSD, USB HDD or flash drive to your player via the USB Media inputs located on the rear of the unit for playback. Once connected the following formats are supported: ALAC, WAV, FLAC, AIFF, DSD (x512), WMA, MP3, AAC, HE AAC, AAC+, OGG Vorbis Note: your player will read large capacity hard drives connected to their USB inputs. -
Page 21: Streaming Your Local Digital Music Collection
To stream local content, you will need the following hardware and software running in your network: 1. Your Cambridge Audio Network Player. 2. A mobile device such as a smartphone or tablet on which you can run the StreamMagic app. -
Page 22: Settings
Settings Last updated: July 27, 2023 10:09. Revision #10132 Device Name This is how your player will appear in your StreamMagic app and on your home network when using services like Spotify, Chromecast built-in and TIDAL Connect. Giving your player a unique name makes it easier to distinguish when using streaming and smart home services. AirPlay Name This is how your player will appear when using AirPlay or the Apple Home app. - Page 23 You can also do this manually by following the steps below: Remove the mains power lead Hold the standby button while re-applying the power lead The LED will flash red while the factory reset process completes The player will reboot Note: Your network player must be connected to the internet to carry out firmware updates.
-
Page 24: Technical Specifications
Technical Specifications Last updated: June 16, 2023 12:20. Revision #9652 Inputs Ethernet, USB host (mass storage), Wi-Fi, Bluetooth Outputs Line out (unbalanced), Digital out (Coax and Optical) ESS Sabre ES9033Q Frequency response 20Hz – 70kHz +/-1dB THD+N 0dBFS, 1khz, 20k BW <0.001% S/N Ratio (20k BW) >110dB... - Page 25 Audio formats ALAC, WAV, FLAC, AIFF, DSD (x512), WMA, MP3, AAC, HE AAC, AAC+, OGG Vorbis, HLS/DASH, .m3u, .pls playlists USB File system support FAT32, NTFS, ext3/4, ExFAT Hi-res support Up to 768KHz 32bit PCM, up to DSD512 Digital Coax and Optical outputs support a maximum of 192kHz 32bit, up to DSD64 Mains Voltage 100-240V ~50/60Hz Max Power consumption...
-
Page 26: Troubleshooting
Troubleshooting Last updated: March 8, 2023 05:29. Revision #9078 If you have trouble connecting the AXN10 to your network, these steps may help to resolve the problem: Ensure that both of the supplied Wi-Fi antennas are securely connected. Confirm that a connected computer can access the Internet (i.e. can browse the web) using the same network. If you have an encrypted Wi-Fi network, check that you have entered the correct key or passphrase. -
Page 27: Frequently Asked Questions (Faq)
Frequently Asked Questions (FAQ) Last updated: November 8, 2023 03:42. Revision #11138 Does the AXN10 have pre-amp or volume control? Yes, it is possible to control the volume of your AXN when connected via the analogue outputs. Pre-amp mode and volume control is not possible when connected via the digital outputs. - Page 28 What is the Service port on the back of the AXN10 for? The service port on the back of the AXN10 is intended for servicing use only by Cambridge Audio authorised service centres and dealers. Please do not connect any devices to the service port, as this may result in damage to the unit.
- Page 29 Do I need to connect both Antennas for the AXN10 to work? Yes, if you are connecting your AXN10 to your network wirelessly, you will need to connect both of the supplied antennas to enable full Wi-Fi functionality and the strongest possible wireless network connection. Bluetooth functionality will also only be possible when one of the antennas is connected to the port with the Bluetooth symbol.
