- Page 1 SX-80 Floorstanding Speakers Manual Generated: 22/11/2023 - 17:00...
-
Page 2: Table Of Contents
Table of Contents SX-80 Floorstanding Speakers ....................................Introduction ..........................................What's included with the SX-80's? ..................................Front panel ..........................................Rear panel ........................................... Installation instructions ......................................Technical specifications ......................................Frequently asked questions ....................................Troubleshooting ........................................ -
Page 3: Sx-80 Floorstanding Speakers
SX-80 Floorstanding Speakers Last updated: December 7, 2022 03:53. Revision #10116 Users Manual... -
Page 4: Introduction
Last updated: January 19, 2023 01:58. Revision #10117 Thank you for purchasing these Cambridge Audio SX-80 floorstanding loudspeakers. We hope that you enjoy many years of listening pleasure from them. Your loudspeakers can only be as good as the system it is connected to. Please do not compromise on your amplifier or cabling. Naturally we particularly recommend amplification from the Cambridge Audio range, which has been designed to the same exacting standards as our... -
Page 5: What's Included With The Sx-80'S
What's included with the SX-80's? Last updated: January 19, 2023 01:58. Revision #10118 1. 2 x SX-80 Floorstanding Speakers. 2. Installation guide. 3. 4 x plastic foot. 4. 4 x steel spike. 5. 4 x steel washer for spike. 6. Foam bung. 7. -

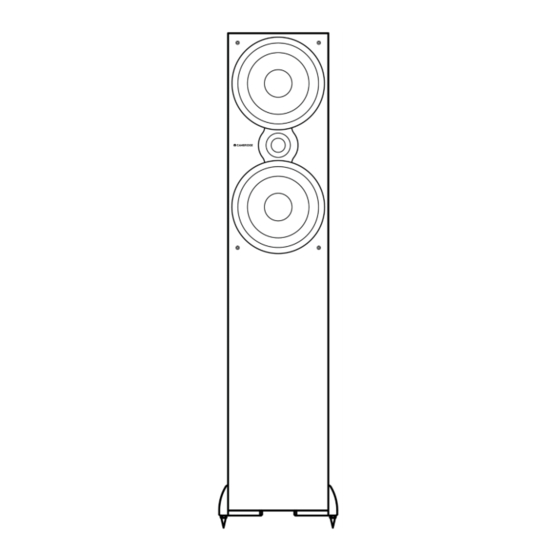

Page 6: Front Panel
Front panel Last updated: January 19, 2023 01:58. Revision #10119 1. 6.5" (165mm) woofer. 2. 1" (25mm) silk dome tweeter. 3. 6.5" (165mm) woofer. -
Page 7: Rear Panel
Rear panel Last updated: January 19, 2023 01:58. Revision #10120 1. Bass port. 2. +/- speaker connection terminals. -
Page 8: Installation Instructions
Installation instructions Last updated: January 19, 2023 01:58. Revision #10121 1. Firstly, using high quality speaker cable connect the SX-80 floorstanding speakers to the speaker terminals on your amplifier. Ensure that you pay close attention to match the polarity of each connection. 2. -
Page 10: Technical Specifications
Technical specifications Last updated: January 19, 2023 01:58. Revision #10122 Sensitivity (SPL) 87dB Frequency Response 40Hz - 20kHz Impedance 8 Ohms Drivers 2 x 6.5” (165mm) woofers. 1 x 1” (25mm) silk dome tweeter. Recommended Amplifier Power 10 - 100 Watts Porting 1 Rear Speaker Dimensions (H x W x D) -
Page 11: Frequently Asked Questions
Frequently asked questions Last updated: January 19, 2023 01:58. Revision #10123 What is meant by speaker sensitivity? Speaker sensitivity is the level produced by the speaker at one meter, when supplied with one watt of power from an amplifier. It’s a way of describing how well the speaker produces acoustic energy, based on a given input. -
Page 12: Troubleshooting
Troubleshooting Last updated: January 19, 2023 01:58. Revision #10124 No sound through one or both channels. • Check that the amplifier is turned on. • Ensure that the correct input source is selected on the amplifier. • Confirm that all connections between the amplifier and loudspeakers are secure. •...
